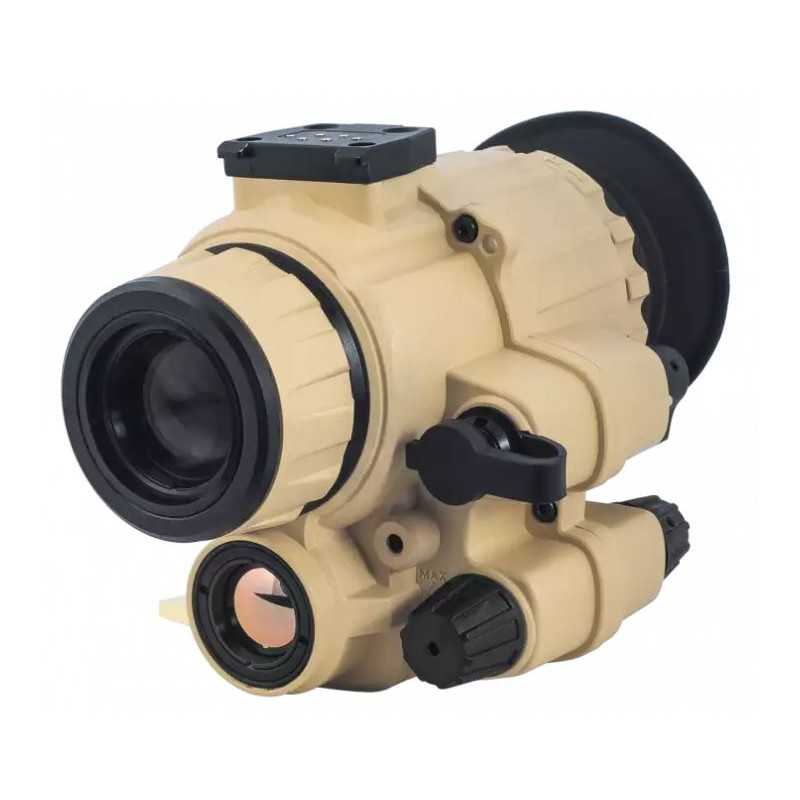

AGM F14-3APW - Fusion Imaging Monocular

Discover the AGM F14-3APW Fusion Imaging Monocular, your gateway to superior vision and situational awareness. Equipped with a high-performance 12µm VOx Uncooled Focal Plane Array detector and a 50 Hz refresh rate, this monocular delivers smooth, clear imaging. Its impressive 640x512 resolution and expansive 25.8° x 19.1° field of view ensure detailed observation across diverse environments. Perfect for both professional and recreational use, the AGM F14-3APW is a dependable and versatile optical tool for those seeking advanced imaging capabilities. Part Unit: 7152522121012F14.

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

AGM F14 Fusion Night Vision and Thermal Imaging Tactical Monocular

The AGM F14 Fusion Night Vision and Thermal Imaging Tactical Monocular is a cutting-edge device designed for those who require high-performance observation tools in challenging environments. This monocular seamlessly integrates I² and thermal imaging technologies, offering unparalleled vision capabilities night and day, as well as in extreme conditions such as smoke, fog, rain, and snow.

Key Features:

  • Bi-spectrum Imaging: Combines thermal and I² night vision for enhanced detail and target recognition.
  • Multiple Viewing Modes: Choose between thermal view, I² night vision, or a combined fusion image for adaptable performance.
  • High-Resolution Thermal Detector: Features a 12 μm, 640x512 high-sensitivity thermal detector for clear imaging.
  • Digital Zoom: Offers 1x, 2x, 4x, and 8x digital zoom capabilities.
  • Ergonomic Design: User-friendly interface with comfortable controls, suitable for handheld or helmet-mounted use.
  • Manual Gain Control: Adjust image brightness for optimal clarity in varying light conditions.
  • Battery Life: Up to 8 hours in fusion mode and more than 60 hours in I² night vision mode with two 18650 rechargeable batteries.
  • Durable and Waterproof: IP67 rated for all-weather reliability.
  • Wide Field of View: Thermal field of view of 25.8° × 19.1°.
  • Azimuth and Pitch/Inclination Indication: Provides precise orientation information.
  • External Power and Video Output: Connects via aviation plug for extended use and video output.
  • Limited 3-Year Warranty: Assurance of quality and reliability.

Specifications:

Thermal Specifications:

  • Detector Type: 12 μm VOx Uncooled Focal Plane Arrays
  • Resolution: 640×512
  • Response Waveband: 8 μm to 14 μm
  • Field of View (HxV): 25.8° × 19.1°
  • Detection Range: 1500 m/yd for a 6' object
  • Palettes: Includes White Hot, Black Hot, Orange Hot, Outline, Highlighting, Thermal Image, Breath
  • Video Output: Available via aviation plug

Night Vision Specifications:

  • Sensor: Gen 2+ or Gen 3 Image Intensifier Tube
  • Manual Gain Control: Yes
  • Lens Focal Length: 25 mm
  • Optical Magnification: 1x
  • Diopter Adjustment: -3.5 to +2.5 dpt
  • Exit Pupil Diameter: 15 mm
  • Eye Relief: 25 mm
  • Bright Light Cut-Off: Yes
  • Infrared Illuminator: Yes

General Specifications:

  • Battery Type: Two 18650 rechargeable batteries (external holder)
  • Operating Time: More than 8 hours in fusion mode, more than 60 hours in I² night vision mode
  • External Power: 5 VDC/2 A (via aviation plug)
  • Protection Level: IP67 (Waterproof)
  • Dimensions: 100 × 71 × 86 mm (3.9 × 2.8 × 3.4 in)
  • Weight (without batteries): 380 g (0.84 lb)
  • Package Includes: Monocular, Battery Holder, Two 18650 Lithium Batteries, Helmet Support Kit, Video Cable, Hard Carrying Case, User Manual

Experience unmatched vision and target detection with the AGM F14 Fusion Night Vision and Thermal Imaging Tactical Monocular, designed for those who demand excellence in all conditions.
