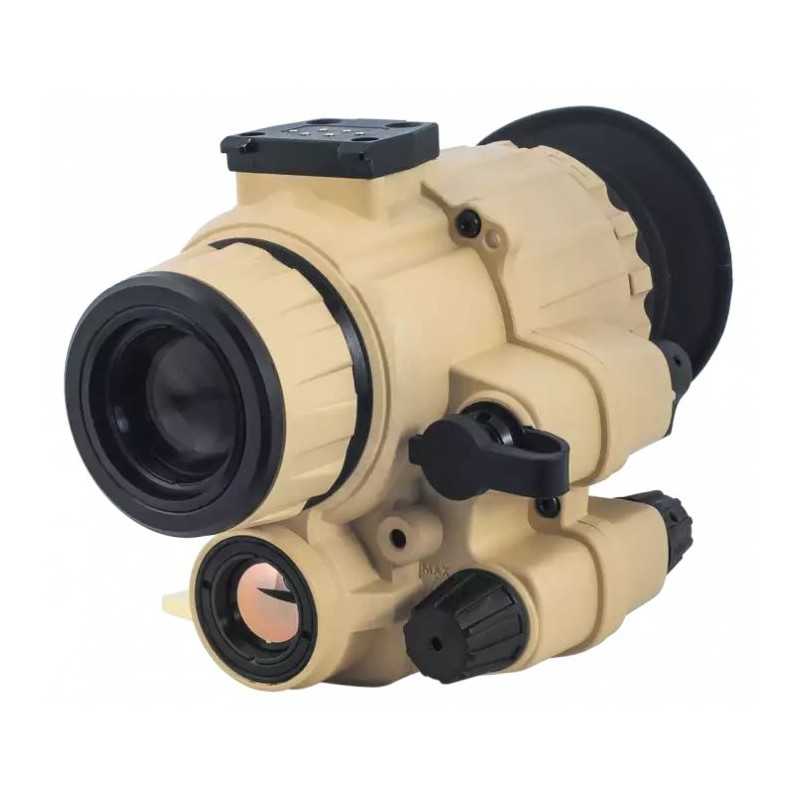

AGM F14-APW Fusion Imaging Monocular

AGM F14 Fusion Night Vision & Thermal Tactical Monocular

The AGM F14 Fusion Night Vision & Thermal Tactical Monocular is an advanced device that seamlessly merges image intensification (I²) and thermal imaging technologies. This bi-spectrum monocular is designed for optimal performance in low-light and challenging environments, making it ideal for applications such as patrols, search and rescue operations, drug interdiction, and suspect apprehension. Its robust waterproof design ensures reliable use in harsh weather conditions, including smoke, fog, rain, and snow.

The F14 is available with either a Gen 2+ or Gen 3 high-performance image intensifier tube (IIT) and is equipped with a 12μm high-sensitivity thermal detector with 640x512 resolution. It offers versatile usage options, functioning as a handheld device or mounted on a helmet. The intuitive interface and ergonomic controls make it user-friendly and adaptable to various conditions.

The device provides multiple image viewing modes: thermal, I² night vision, and an enhanced fusion image, allowing users to choose the best option based on environmental needs. It features manual gain control, ensuring superior image quality by adjusting brightness according to changing light conditions. Powered by two 18650 rechargeable lithium batteries in an external holder, the F14 delivers up to 8 hours of operation in fusion image mode and over 60 hours in I² night vision mode.

• Key Features:
• Bi-spectrum image fusion with object highlighting
• Detail enhancement and target recognition capabilities
• Switchable thermal view, I² night vision, or combined fusion modes
• 12 μm, 640x512 high-sensitivity thermal detector with digital zoom
• Azimuth and Pitch/Inclination Indication for precise navigation
• Brightness and contrast image adjustment for optimal viewing
• Extra large exit pupil diameter (15mm) for comfortable viewing
• Low power consumption: Up to 8 hours in fusion mode, over 60 hours in I² night vision mode
• Aviation plug for external power supply and video output
• Waterproof with IP67 protection level
• Limited 3-Year Warranty

Specifications

Thermal Specifications

• Detector Type: 12 μm VOx Uncooled Focal Plane Arrays
• Resolution: 640×512
• Response Waveband: 8 μm to 14 μm
• Thermal Field of View (HxV): 25.8° × 19.1°
• Digital Zoom: 1x, 2x, 4x, 8x
• Detection Range (6' object): 1500 m/yd
• Flat Field Correction (FFC): Manual
• Palettes: White Hot/Black Hot/Orange Hot, Outline, Highlighting, Thermal Image, Breath
• Video Output: Yes (via aviation plug)

Night Vision Specifications

• I² Night Vision Sensor: Gen 2+ or Gen 3 Image Intensifier Tube
• Manual Gain Control: Yes
• Lens Focal Length: 25 mm
• Optical Magnification: 1x
• Diopter Adjustment: -3.5 to +2.5 dpt
• Exit Pupil Diameter: 15 mm
• Eye Relief: 25 mm
• Bright Light Cut-Off: Yes
• Infrared Illuminator: Yes
• Battery Type: Two 18650 rechargeable batteries (external battery holder)
• Battery Operating Time: More than 8 hours (fusion mode), more than 60 hours (I² night vision mode)
• External Power: 5 VDC/2 A (via aviation plug)

Protection Level: IP67 (Waterproof)

Dimensions: 100 × 71 × 86 mm (3.9 × 2.8 × 3.4 in)

Weight (w/o batteries): 380 g (0.84 Ib)

Package Includes: Monocular, Battery Holder, Two 18650 Lithium Batteries, Helmet Support Kit, Video Cable, Hard Carrying Case, User Manual
