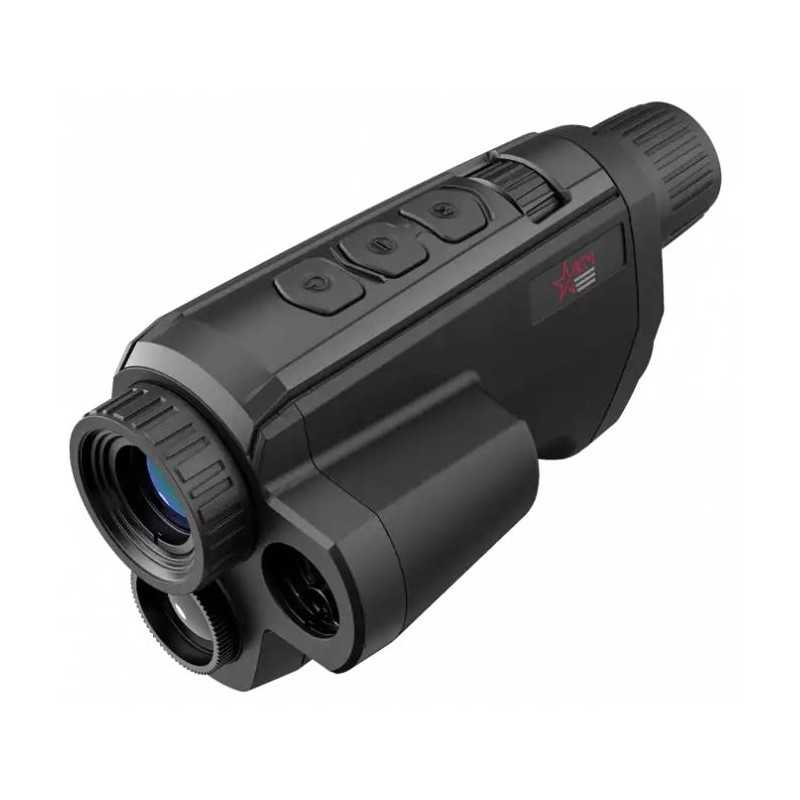

AGM Fusion LRF TM25-384 - Imaging Monocular

The AGM Fuzion LRF Handheld Thermal & Optical Bi-spectrum Monocular is equipped with 12μm high sensitivity thermal detector, ultra-low light optical detector, 1024×768 OLED display and eyepiece with a large field of view. The device can quickly detect hiding objects even under extreme environments such as smoke, fog, rain, snow, etc. It can be widely applied to scenarios including patrol, search and rescue, drug interdiction, and suspect apprehension. Due to its waterproof capability the device performs well even in severe weather conditions and challenging environments. The Fuzion LRF’s user-friendly interface, comfortable and ergonomic operating controls makes adoption and application incredibly simple. The monocular offers three different variants of image view: thermal, visible light, and fusion that can be easily adapted depending on different environmental conditions. This high-tech monocular is equipped with a laser rangefinder for measurement of target distance. The Fuzion LRF uses one 18650 rechargeable Lithium battery for up to 5-hours of operating time. In addition, an external power supply can be used to provide an increase in operating time.

• Bi-spectrum image fusion and object highlight
• Detail enhancement and target recognition
• Selection of thermal view channel, visible light channel, or both them combined
• 12 μm, 35 mK NETD high sensitivity thermal detector
• Fast 50Hz imaging
• 1x, 2x, 4x, 8x digital zoom
• Digital image processing technology
• Ultra-low illumination optical channel
• 1920×1080 Optical resolution
• Eye-safe laser rangefinder
• 1024×768 resolution, 0.39-inch OLED display
• Video recording and snapshot, built-in EMMC (16 GB)
• Wi-Fi hotspot
• Standby mode
• Up to 5 hours continuous running
• Waterproof
• Limited 3-Year Warranty

SPECIFICATIONS

Palettes Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion

Working Temperature -20°C to 55°C (-4°F to 131°F)

Dimension (LxWxH) 158 × 61 × 57 mm (3.2 × 2.4 × 2.2 in)

Distance Measurement Yes (Laser Rangefinder: up to 600 m, ±1 m accuracy)

Scene Mode Jungle, Recognition

Hotspot Yes

Observation Distance 1250m/yd

Detector type 12 μm VOx Uncooled Focal Plane Arrays

Response Waveband 8 μm to 14 μm

Optical Image Sensor 1/2” Progressive Scan CMOS, 1920×1080@25fps

FFC (Flat Field Correction) Auto, Manual, External Correction

Highest Temperature Spot Tracking Yes

Standby Mode Yes

Refresh rate 50 Hz

Aperture F1.0

Resolution 384 × 288

Laser Wavelength 905 nm

Optical magnification 2.5x – 20x

Lens (focal length) Thermal Lens Focal Length - 25mm Optical Module Lens Focal Length - 22mm

Power 5 VDC/2 A, USB Type-C interface Supports external power supply

Field of view (H × X) 10.5° × 7.9°

Digital zoom 1x, 2x, 4x, 8x

Monitor 1024x768, 0.39 inch, OLED, 50Hz

Storage Built-in 16 GB EMMC

Record Video On-board video recording

Capture Snapshot Yes

Battery Type One 18650 rechargeable battery (removable)

CVBS Output Yes (via USB)

Battery Operating Time Up to 5 hours continuous running (@25°C, WiFi and CVBS off) Up to 3 hours continuous running (@25°C, WiFi and CVBS on)

Battery Capacity Display Yes

Weight 510 g (1.12 Ib)

Protection Level IP67 (Waterproof)
