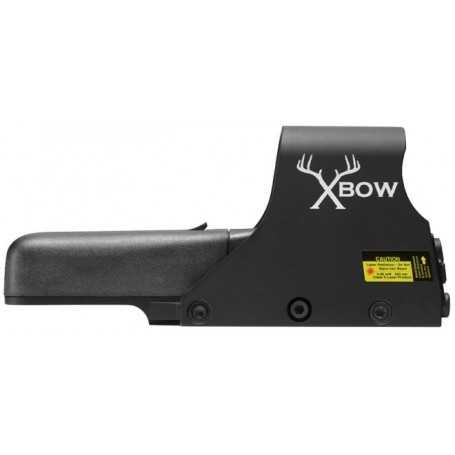

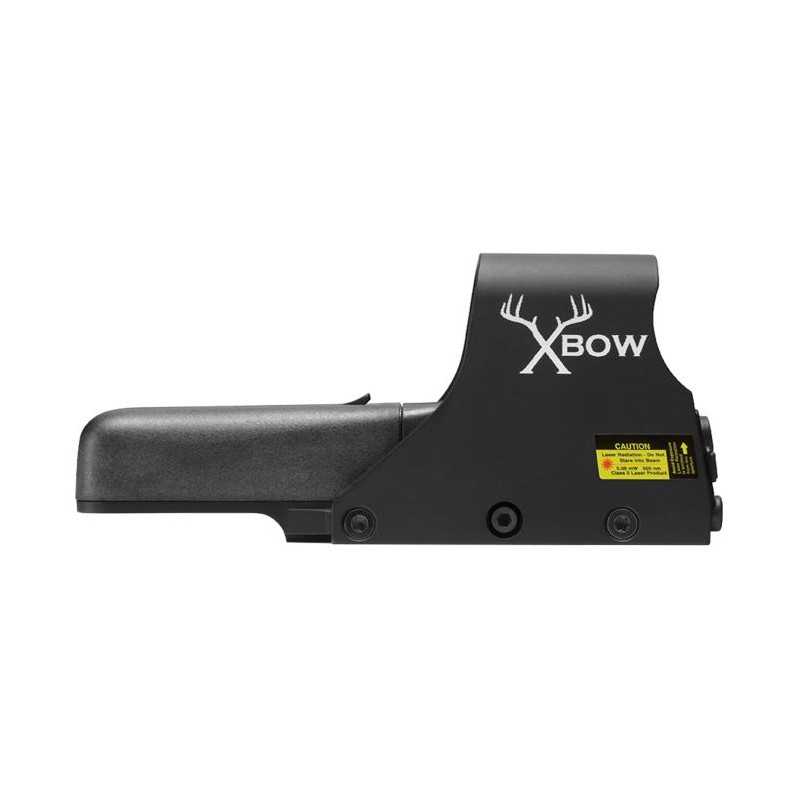

EOTech HWS 512 XBOW Holographic Sight

Engineered specially for crossbow hunters, the 512-XBOW™ uses the unique properties of holography to create optimal range-scaling data in a heads-up display. A pre-calculated ranging scale (in yards) is projected on the target and measures the back to the belly of a typical mature whitetail deer (18"). Simply position the base of the scale on the belly and read from where the back intersects the scale — it's that easy. No guesswork. No extra movement. Both range information and aiming reticle are displayed within the same sight picture, delivering the data for a deadly shot when every second counts.

Reticle Options

XBOW Reticle

With the integral ranging pattern, there is no unnecessary body movement or added noise while in the stand. Both range information and aiming reticle are displayed within the same sight picture to quickly line up your shot.

Included in the box:

HWS 512-XBOW™

Quick-Start Guide

Warranty Card

2x AA Alkaline Batteries

Protective Case

Non-Night Vision Compatible

L X W X H 5.6" x 2.0" x 2.5" (142.2 x 50.8 x 63.5 mm)

Weight 11.5oz (326 g)

Water Resistant 10ft. (3 m) depth

Mount 1" Weaver or MIL-STD-1913 rail

Windage & Elevation Adjustment 0.5 MOA per click

Brightness 20 daylight settings

Power Source 2 x 1.5 V AA batteries - Supports lithium, alkaline or rechargable

Battery Life Lithium: 2,500 continuous hours at nominal setting 12 at room temperature, Alkaline: 2,200 continuous hours at nominal setting 12 at room temperature

Operating Temperature -40°F to 140°F (-40°C to 60°C)

Country of Origin Made in USA
