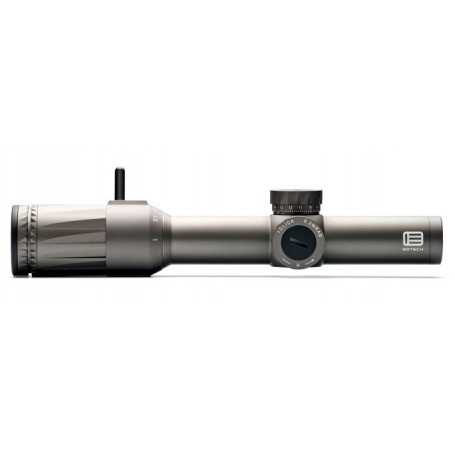

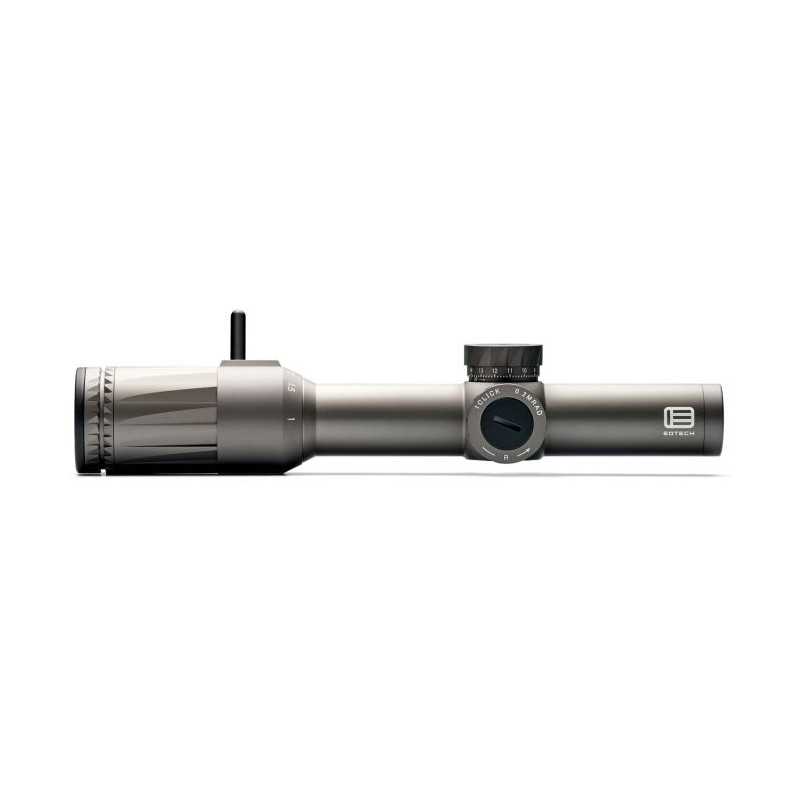

EOTech Vudu 1-6x24 FFP Gray Rifle Scope

The Vudu 1-6x24 Grey First Focal Plane is an optic that feels at home on the AR platform or on a bolt action rifle. The EOTECH Speed Ring reticle allows for fast target engagement at low power, but at higher power provides the resolution and accuracy required to tackle longer shots. The Vudu 1-6X is the perfect solution for short- to medium-range applications.

Features

Aircraft Grade

Aircraft-grade aluminum, single-piece construction with anodized finish for extreme durability. Laser-etched adjustment indicators and push-button illumination controls for tracking east. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.

Fog Resistant

Nitrogen gas purging prevents internal fogging over the operating temperature range.

Shock Resistant

The rugged design prevents damage from heavy recoil and rough handling.

Water Resistant

The single-piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environments.

Anti-Reflective Lenses

XC™ high-density, low dispersion glass with anti reflective coated lenses provides efficient light transmission and unmatched edge-to-edge clarity. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.

Reticle Specifications

Vudu SR1 Reticle

The SR1 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MRAD sub-tension lines for ranging, holdover and wind compensation. The first focal plane design allows for lightning fast target acquisition using the speed ring at the lower power settings. When the magnification setting is dialed up, the speed ring disappears from view and the inner crosshair comes in to view for more precision on longer range shots.

Adjustment Graduation Per Click

0.2 MRAD

Adjustment Graduation Per Rotation

15 MRAD

Total Elevation Travel

29 MRAD

Total Windage Travel

23 MRAD

Included in the box:

Vudu® 1-6X24 Grey Rifle Scope

Operator Manual

Reticle Manual

Throw Lever

Lens Cleaning Cloth

Battery

First Focal Plane

Overall Length 10.63" (270 mm)

Weight 20.1 oz (570 g)

Magnification 1-6X

Tube Diameter 30 mm

Objective Diameter 24 mm

Power Source CR2032

Eye Relief 1X: 3.27-3.94" (83-100 mm), 6X: 3.23-3.94" (82-100 mm)

Field-of-View @ 100 Yards 1X: 102.4 ft (31.2 m), 6X: 16.7 ft (5.09 m)

Country of Origin Made in Japan
