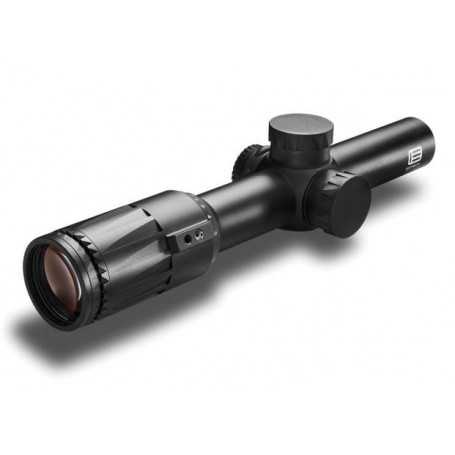

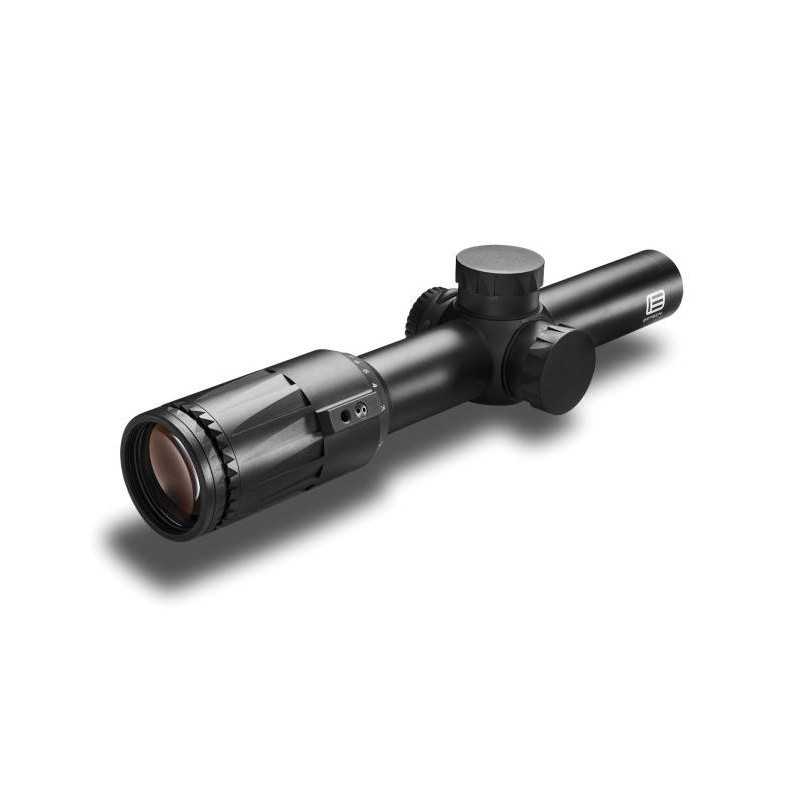

EOTech Vudu 1-8x24 SFP Rifle Scope

Like other Vudu scopes, the 1–8X24 SFP features aircraftgrade aluminum construction and bright XC High-Density glass, surgically precise turrets, and intuitive push-button reticle illumination controls. The HC3 quad-level BDC reticle features a precise 0.5-MOA illuminated center dot and 2-, 5-, 8.5- and 12.5-MOA subtensions on the vertical axis (at 8X power). The scope’s field of view at 100 yards is 105.8 feet at 1X and 13.2 feet at 8X.

Features

Aircraft Grade

Aircraft-grade aluminum, single-piece construction with anodized finish for extreme durability. Laser-etched adjustment indicators and push-button illumination controls for tracking east. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.

Fog Resistant

Nitrogen gas purging prevents internal fogging over the operating temperature range.

Shock Resistant

The rugged design prevents damage from heavy recoil and rough handling.

Water Resistant

The single-piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environments.

Anti-Reflective Lenses

XC™ high-density, low dispersion glass with anti reflective coated lenses provides efficient light transmission and unmatched edge-to-edge clarity. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.

Reticle Specifications

Vudu HC3 Reticle

The HC3 is a second focal plane MOA-based hashmark reticle that was designed specifically for the 3-gun competition shooter. The quadplex BDC reticle features a precise 0.5 MOA daylight-visible illuminated center dot and four sub-tension hash marks providing precise ballistic holdovers for those longer shots. The HC3 reticle is also an excellent choice for shooters interested in a short to mid-range low power variable hunting optic.

Adjustment Graduation Per Click

0.25 MOA

Adjustment Graduation Per Rotation

20 MOA

Total Elevation Travel

100 MOA

Total Windage Travel

80 MOA

Included in the box:

Vudu® 1-8X24 Rifle Scope

Operator Manual

Reticle Manual

Throw Lever

Lens Cleaning Cloth

Battery

Second Focal Plane

Overall Length 10.9" (278 mm)

Weight 20.8 oz (589.7 g)

Magnification 1-8X

Tube Diameter 30 mm

Objective Diameter 24 mm

Power Source CR2032

Eye Relief 1X: 3.46-4.09" (88-104 mm), 8X: 3.54-3.9" (90-99 mm)

Field-of-View @ 100 Yards 1X: 105.8 ft (32.2 m), 8X: 13.2 ft (4 m)

Country of Origin Made in Japan
