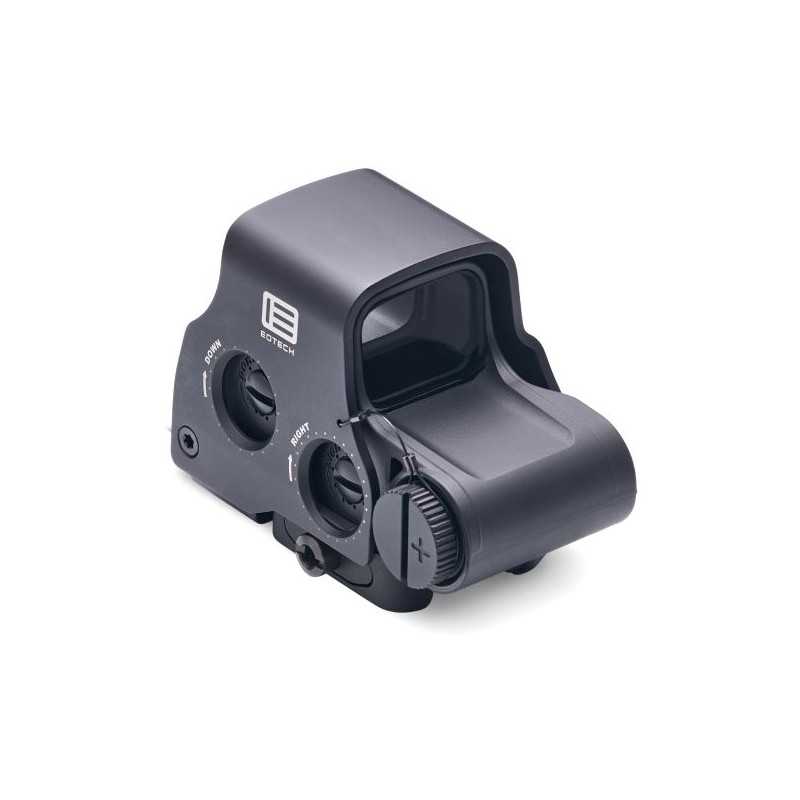

EOTech HWS EXPS3 Black Holographic Sight - Circle 4-Dot Reticle

The HWS EXPS3™ is an excellent choice for professionals. The EXPS3 offers true two eyes open shooting for fast target acquisition, night vision compatible settings, and a 7mm raised quick detach base for lower 1/3 iron sight co-witness.

Operator Grade Holographic Weapon Sight

An operator-grade Holographic Weapon Sight built for close-quarter engagements with fast-moving targets.

Reticle Options

EOTECH’s unique reticle patterns are a critical to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.

EOTECH One Dot Reticle

Our most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. When using other loads and calibers, the operator will have to establish the ranges associated with the aiming points. When using a shotgun, the 68 MOA ring can be used to represent shot patterns but will vary based on choke and shell selection. For ordering this reticle, the model codes will end in -0.

EOTECH Two Dot Reticle

Our two-dot reticle pattern can be easily distin- guished with or without magnification and offers the benefit of an additional long-range, aiming dot. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. For ordering this reticle, the model codes will end in -2.

EOTECH Four Dot Reticle

Use this ballistic reticle with 5.56 Nato/.223 cal with 62 gr M855 FMJ at roughly 2,680 fps with a 14.5" barrel. For ordering this reticle, the model codes will end in -4. Aiming dots on the 4-dot reticle may not be distinguishable without magnification.

Range Estimation with Unmagnified HWS

The standard ring found in most reticles equates to approximately 68" (5'8") at 100 yards.

Brightness Options

The EXPS3™ HWS offers multiple brightness settings with both Standard and Night Vision modes offering quick adjustability to accommodate any shooting situation.

Included in the box:

HWS EXPS3™

Quick-Start Guide

Warranty Card

CR123 Battery

Protective Case

Night Vision Compatible

L X W X H 3.8" x 2.3" x 2.9" (96.5 x 58.4 x 73.7 mm)

Weight 11.2oz (317.5g)

Water Resistant 33ft. (10 m) depth

Mount 1" Weaver or MIL-STD-1913 rail

Windage & Elevation Adjustment 0.5 MOA per click

Brightness 20 daylight settings, 10 additional settings for Gen I through III+ night vision devices

Power Source 1 x CR123 battery

Battery Life 1,000 continuous hours at nominal setting 12 at room temperature

Operating Temperature -40°F to 140°F (-40°C to 60°C)

Country of Origin Made in USA
