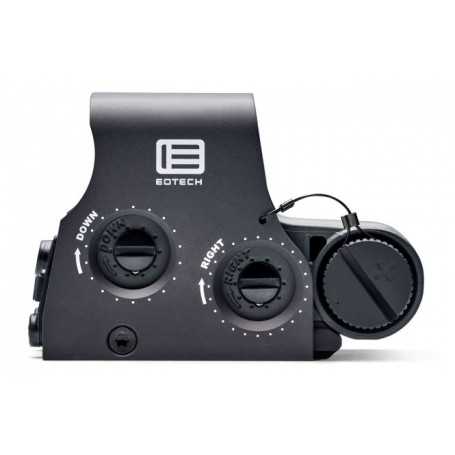

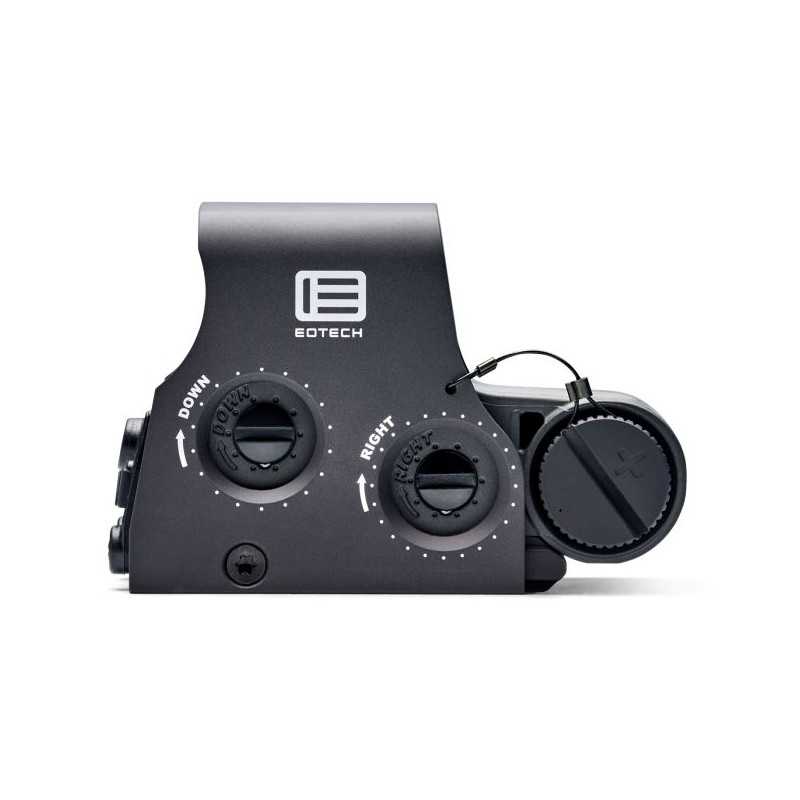

EOTech XPS2 HWS Holographic Sight - Circle 2-Dot Reticle

The HWS XPS2™ is the non night-vision version of our shortest and lightest HWS sight so far. The CR123 lithium battery configuration of the XPS2 provides additional rail space, leaving more room for rear iron sights or magnifiers. Also offering water-resistant capability up to 10 feet, the XPS2 is a great compact and lightweight option for your platform.

Operator Grade Holographic Weapon Sight

An operator-grade Holographic Weapon Sight built for close-quarter engagements with fast-moving targets.

Reticle Options

EOTECH’s unique reticle patterns are a critical to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.

EOTECH One Dot Reticle

Our most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. When using other loads and calibers, the operator will have to establish the ranges associated with the aiming points. When using a shotgun, the 68 MOA ring can be used to represent shot patterns but will vary based on choke and shell selection. For ordering this reticle, the model codes will end in -0.

EOTECH Two Dot Reticle

Our two-dot reticle pattern can be easily distinguished with or without magnification and offers the benefit of an additional long-range, aiming dot. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. For ordering this reticle, the model codes will end in -2.

EOTECH 1-MOA Dot Only Reticle

Single 1-MOA dot reticle that can be zeroed at any distance.

Range Estimation with Unmagnified HWS

The standard ring found in most reticles equates to approximately 68" (5'8") at 100 yards.

Brightness Options

The XPS2™ HWS offers multiple brightness settings offering quick adjustability to accommodate any shooting situation.

Included in the box:

HWS XPS2™

Quick-Start Guide

Warranty Card

CR123 Battery

Protective Case

Non-Night Vision Compatible

L X W X H 3.8" x 2.1" x 2.5" (96.5 x 53.3 x 63.5 mm)

Weight 9.0 oz (255 g)

Water Resistant 10ft. (3 m) depth

Mount 1" Weaver or MIL-STD-1913 rail

Windage & Elevation Adjustment 0.5 MOA per click

Brightness 20 daylight settings

Power Source 1 x CR123 battery

Battery Life 1,000 continuous hours at nominal setting 12 at room temperature

Operating Temperature -40°F to 140°F (-40°C to 60°C)

Country of Origin Made in USA
