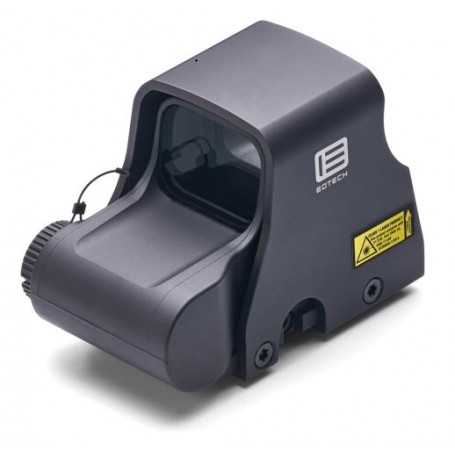

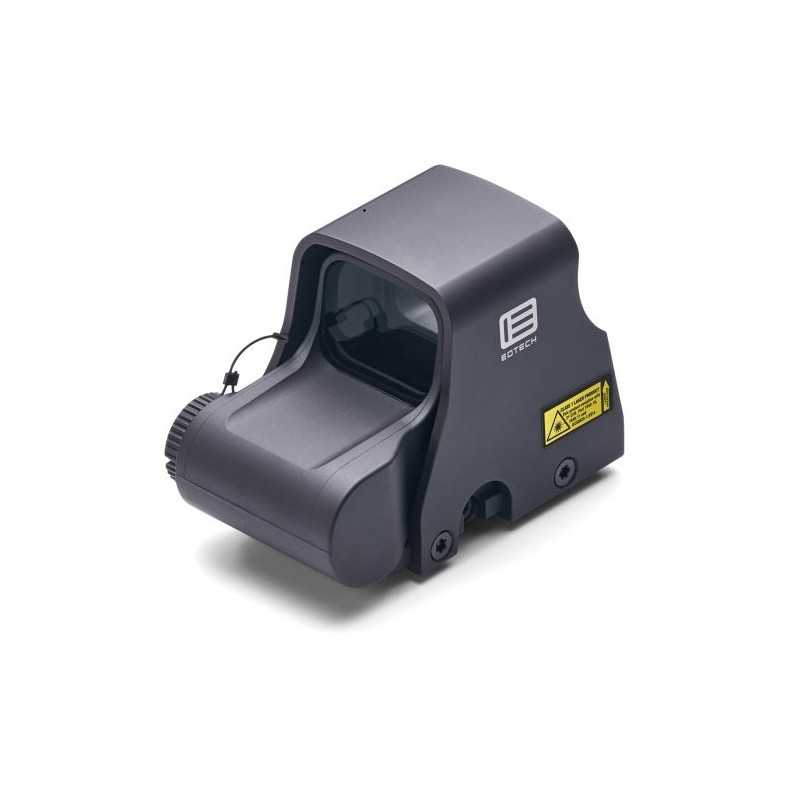

EOTech XPS3 HWS Holographic Sight - Circle 1-Dot Reticle

The HWS XPS3™ is the shortest and lightest night-vision compatible HWS yet. Powered by a single transverse mounted CR123 lithium battery, the XPS provides additional rail space, leaving more room for rear iron sights, magnifiers or night-vision mount.

Operator Grade Holographic Weapon Sight

An operator-grade Holographic Weapon Sight built for close-quarter engagements with fast-moving targets.

Reticle Options

EOTECH’s unique reticle patterns are a criti- cal to delivering fast target acquisition and MOA accuracy at any range. EOTECH reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.

EOTECH One Dot Reticle

Our most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. When using other loads and calibers, the opera- tor will have to establish the ranges associated with the aiming points. When using a shotgun, the 68 MOA ring can be used to represent shot patterns but will vary based on choke and shell selection. For ordering this reticle, the model codes will end in -0.

EOTECH Two Dot Reticle

Our two-dot reticle pattern can be easily distin- guished with or without magnification and offers the benefit of an additional long-range, aiming dot. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. For or- dering this reticle, the model codes will end in -2.

Range Estimation with Unmagnified HWS

The standard ring found in most reticles equates to approximately 68" (5'8") at 100 yards.

Brightness Options

The XPS3™ HWS offers multiple brightness settings with both Standard and Night Vision modes offering quick adjustability to accommodate any shooting situation.

Included in the box:

HWS XPS3™

Quick-Start Guide

Warranty Card

CR123 Battery

Protective Case

Night Vision Compatible

L X W X H 3.8" x 2.1" x 2.5" (96.5 x 53.3 x 63.5 mm)

Weight 9.0 oz (255 g)

Water Resistant 33ft. (10 m) depth

Mount 1" Weaver or MIL-STD-1913 rail

Windage & Elevation Adjustment 0.5 MOA per click

Brightness 20 daylight settings, 10 additional settings for Gen I through III+ night vision devices

Power Source 1 x CR123 battery

Battery Life 1,000 continuous hours at nominal setting 12 at room temperature

Operating Temperature -40°F to 140°F (-40°C to 60°C)

Country of Origin Made in USA
