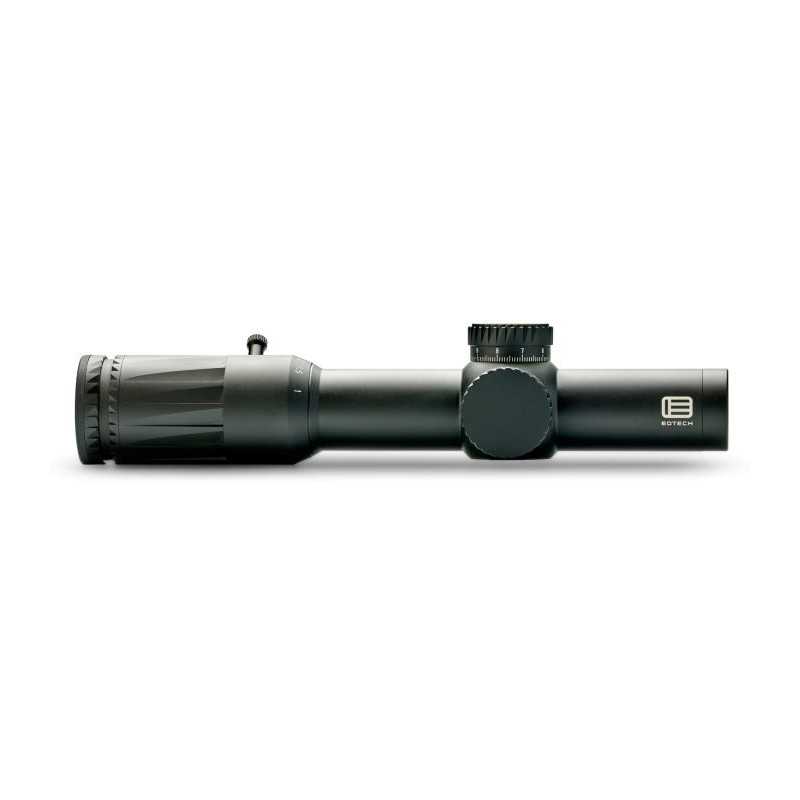

EOTech Vudu 1-10x28 FFP Rifle Scope - SR4 (MOA)

EOTECH’s Vudu 1-10x28 offers a robust 34mm, one-piece aircraft aluminum tube and single-piece eyepiece that includes a removable throw-lever for fast changes in magnification. The low profile elevation turret includes a push/pull locking system and a capped windage turret for a secure zero. The illuminated, glass-etched reticle and first focal plane design allows for distance estimation at any magnification and lighting condition.

Features

Aircraft Grade

Aircraft-grade aluminum, single-piece construction with anodized finish for extreme durability. Laser-etched adjustment indicators and push- button illumination controls for simple manipulation.

Fog Resistant

Nitrogen gas purging prevents internal fogging over the operating temperature range.

Shock Resistant

The rugged design prevents damage from heavy recoil and rough handling.

Water Resistant

The single-piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environments.

Anti-Reflective Lenses

XC™ high-density, low dispersion glass with anti-reflective coated lenses provides efficient light transmission and unmatched edge-to-edge clarity..

Industrial Design

The sleek scalping design on the one-piece eye-piece allows for greater purchase and faster magnification adjustment and provides a removable throw lever for even better manipulation.

Reticle Specifications

Vudu SR-4 MOA Reticle

The SR-4 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MOA subtension lines for ranging holdover and wind compensation. With a 1MOA center aiming dot, the clean sight picture provides improved down range visibility while still allowing the full use of the horizontal and vertical stadia lines for hold-overs and wind calls.

Adjustment Graduation Per Click

0.25 MOA

Adjustment Graduation Per Rotation

40 MOA

Total Elevation Travel

100 MOA

Total Windage Travel

80 MOA

Vudu SR-5 MRAD Reticle

The SR-5 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MRAD subtension lines for ranging holdover and wind compensation. A Christmas tree style reticle offers a precision 0.25 MRAD center aiming dot and the secondary windage and elevation features allow for precise holds on those longer range shots.

Adjustment Graduation Per Click

0.1 MRAD

Adjustment Graduation Per Rotation

15 MRAD

Total Elevation Travel

29 MRAD

Total Windage Travel

23 MRAD

Vudu LE-5 MRAD Reticle

The LE-5 incorporates the iconic EOTECH illuminated speed ring along with a hashmarked inner crosshair reticle that uses MRAD subtension lines for ranging holdover and wind compensation. A Christmas tree style reticle offers a precision cross-hair and the secondary windage and elevation features allow for precise holds on those longer range shots.

Adjustment Graduation Per Click

0.1 MRAD

Adjustment Graduation Per Rotation

15 MRAD

Total Elevation Travel

29 MRAD

Total Windage Travel

23 MRAD

Included in the box:

Vudu® 1-10X28 Rifle Scope

Operator Manual

Reticle Manual

Throw Lever

Lens Cleaning Cloth

First Focal Plane

Overall Length 10.63" (270 mm)

Weight 21.3 oz (603 g)

Magnification 1-10X

Tube Diameter 34 mm

Objective Diameter 28 mm

Power Source CR2032

Eye Relief 1X: 3.27-3.90" (83-99 mm), 10X: 3.35-3.62" (85-92 mm)

Field-of-View @ 100 Yards 1X: 116.6 ft (35.5 m), 10X: 11.7 ft (3.6 m)

Country of Origin Made in Japan
