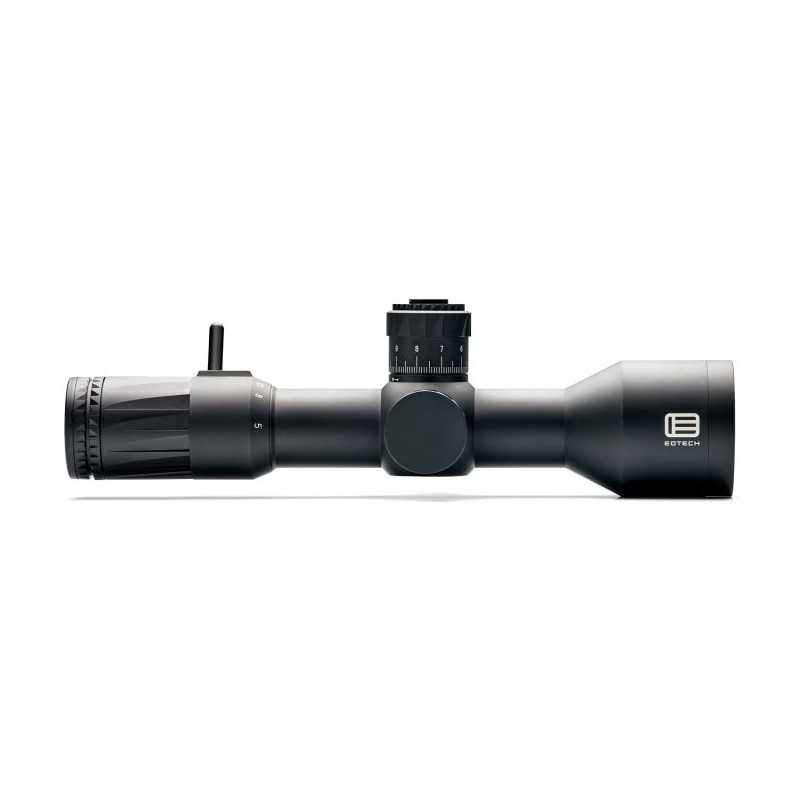

EOTech Vudu 5-25x50 FFP Rifle Scope - MD4 (MOA)

The Vudu 5-25X50 is ideal for short platform rifles. At approximately 11.2 inches in length, the 5-25X is one of the shortest first focal plane rifle scopes on the market. The elevation turret includes a push/pull locking system and EOTECH’s EZ Chek Zero Stop. One unique advantage of the short design is that it provides the ability to attach either a clip-on night vision or thermal device in front of the scope.

Features

Aircraft Grade

Aircraft-grade aluminum, single-piece construction with anodized finish for extreme durability. Laser-etched adjustment indicators and push-button illumination controls for tracking east. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.

Fog Resistant

Nitrogen gas purging prevents internal fogging over the operating temperature range.

Shock Resistant

The rugged design prevents damage from heavy recoil and rough handling.

Water Resistant

The single-piece tube and o-ring seals prevents moisture and dust from entering the scope even in the harshest environments.

Anti-Reflective Lenses

XC™ high-density, low dispersion glass with anti reflective coated lenses provides efficient light transmission and unmatched edge-to-edge clarity. Water-resistant, fog-resistant, shock-resistant with single construction eyepiece.

Reticle Specifications

Vudu MD3 Reticle

The MD3 is a first focal plane MRAD-based hashmark reticle that provides ranging, holdover and wind compensation in a very clean sight picture. The stadia lines are pulled back from the illuminated center aiming dot for improved long-range accuracy.

Adjustment Graduation Per Click

0.1 MRAD

Adjustment Graduation Per Rotation

10 MRAD

Total Elevation Travel

29 MRAD

Total Windage Travel

23 MRAD

Vudu MD4 Reticle

The MD4 reticle is based on the Minute of Angle, or MOA, angle of measurement. With a known target size, this system allows the shooter to use angle ratios to determine distance of target with reliable accuracy. The MD4 reticle is 0.25 MOA per click adjustments that subtend to .25" at 100 yards.

Adjustment Graduation Per Click

0.25 MOA

Adjustment Graduation Per Rotation

34 MOA

Total Elevation Travel

100 MOA

Total Windage Travel

80 MOA

Horus H59 Reticle

The MRAD-based H59 reticle features the popular horizontal and vertical grid pattern that allows for built-in range-finding, holdovers and wind compensation to maximize extreme-range precision. The windage tree is also perfect for quick follow-up corrections.

Adjustment Graduation Per Click

0.1 MRAD

Adjustment Graduation Per Rotation

10 MRAD

Total Elevation Travel

29 MRAD

Total Windage Travel

23 MRAD

Horus TR3 Reticle

The TREMOR3 reticle is designed for speed and accuracy. It's combines a patented feature that gives users the capability of quickly and accurately estimating target ranges and compensate for drop & wind. Additionally it provides the user wind speed and drop correction information for fast and accurate second shot corrections.

Adjustment Graduation Per Click

0.1 MRAD

Adjustment Graduation Per Rotation

10 MRAD

Total Elevation Travel

29 MRAD

Total Windage Travel

23 MRAD

Included in the box:

Vudu® 5-25X50 Rifle Scope

Operator Manual

Reticle Manual

Throw Lever

Sunshade

Lens Cleaning Cloth

Battery

Zero Stop Wrench

First Focal Plane

Overall Length 11.2" (285 mm)

Weight 29.5 oz (835 g)

Magnification 5-25X

Tube Diameter 34 mm

Objective Diameter 50 mm

Power Source CR2032

Eye Relief 5X: 2.96-3.71" (75-94 mm), 25X: 3.27-3.63" (83-92 mm)

Field-of-View @ 100 Yards 5X: 23.3 ft (7.1 m), 25X: 4.7 ft (1.43 m)

Country of Origin Made in Japan
