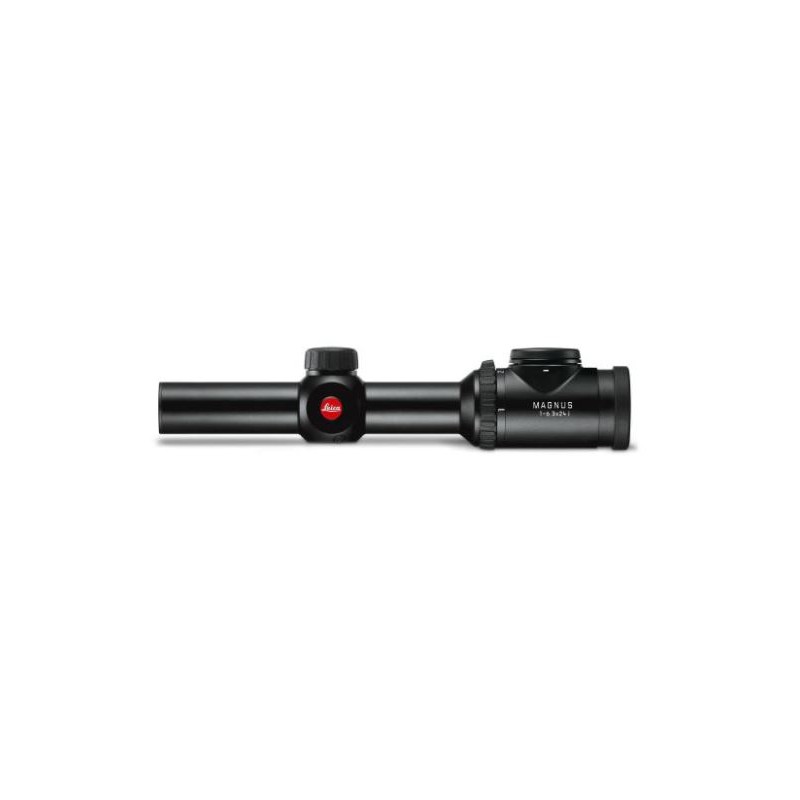

Leica Magnus 1-6,3x24i L-4A Scope 52120

Due to its combination of maximum resolving power, an extremely broad overview and an astoundingly wide field of view of 44 metres at 100 metres, the Magnus 1?6.3x24 i ensures significantly greater safety and hunting success. Thanks to a large exit pupil and a crisply defined, extremely bright red dot, it guarantees extremely fast and accurate target location, especially with running game. The riflescope features a generously wide 1 to 6.3-fold zoom range, and a smart, automatic power-off function. In combination with its extremely compact construction, these features make the Magnus 16.3x24 i an extraordinarily reliable and versatile companion on any hunt.

• crosshair thickness: 0.5 cm
• distance between horizontal posts: 140 cm
• use: universal reticle for a precise shot
• astoundingly wide field of view of 44 m/144 ft. at 100 m/328 ft. for a better overview
• thanks to a large exit pupil it guarantees extremely fast and accurate target location
• up to 6.3-fold zoom for maximum safety and flexibility during driven hunt
• excellent transmission and extraordinary contrast to ensure optimum identification of game
• extremely bright red dot
• outstanding ergonomics and easy handling - even when wearing gloves
• smart, automatic power-off function for maximum battery-life

Package includes riflescope caps for front lens/eyepiece, cleaning tissue, battery, instruction manual

Front lens diameter 24 mm

Magnification 1 – 6.3 x

Zoom 6.3 x

Field of view at 100 m (min. up to max. magnification) 44 m to 6.5 m

Eye relief > 3.5 in / 90 mm

Exit pupil 12.4 - 3.8 mm

Parallax-free 100 m

Diopter compensation –4/+3 dpt

Coating AquaDura® lens coating

Transmission approx. 92 %

Mounting option 1.18 in / 30 mm rings / Zeiss internal rail

Impact point correction 1 click = 1 cm/100 m (~~1⁄3 MOA), 200 x140 cm

Front lens filter thread M 28 x 0.75 mm

Length 10.7 in / 272 mm

Weight 19.2 oz / 544 g (with rail: 22.2 oz / 570 g)

Waterproof waterproof to 13.1 ft / 4 m; nitrogen-filled

Available reticles 4a, L-3D, CD i

Reticle illumination / type yes/dot

Automatic switch-off 3 min, ± 75°

Automatic switch-on yes, activated by position and/or movement

Battery 1 x CR2032

Order No. (Reticle)

4a / with rail 52120 / 52121

4a with BDC / with rail - -

L-3D / with rail 52110 / 52111

Ballistic / with rail - -

Ballistic with BDC / with rail - -

CD i / with rail 52140 / 52141
