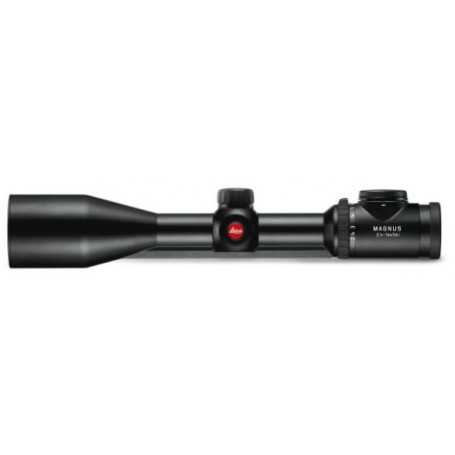

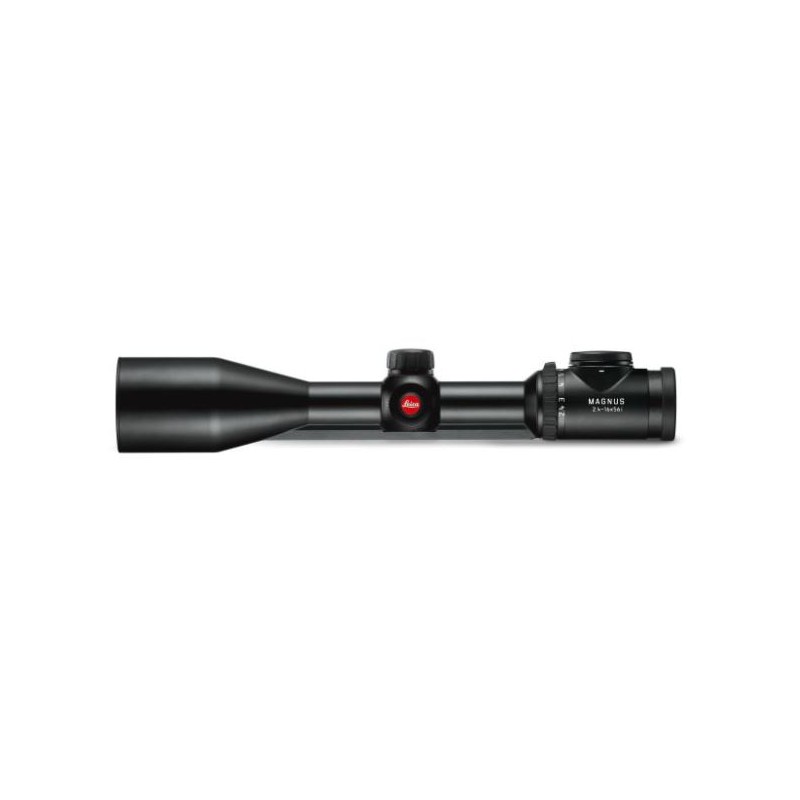

Leica Magnus 2,4-16x56i L-4A with Rail Scope 54131

In contrast to other riflescopes, the particularly low vignetting of the Magnus 2.4-16x56 i ensures extra brightness at low magnification factors. Its large-diameter front lens, a highly effective entrance pupil at mid-range magnification, and the highest, outstanding transmission value of around 92% ensure optimum identification up to the last minutes of shooting light. With a maximum magnification of 16x, it is also perfect for ensuring the accuracy of ambitious, long-range shots. In combination with the outstanding Leica shutter system, its high transmission properties guarantee more light under all conditions, particularly when using low magnification factors. Stray light and vignetting are considerably reduced and contrast improved. This, in combination with the high magnification ensures safe identification from shortest distances to precise long-range shooting.

• large field of view
• large exit pupil for more visual comfort at the stop
• robust and precise mechanics
• comfortable and intuitive light point operation
• fine reticle
• 7x zoom for maximum flexibility
• excellent transmission and extraordinary contrast for reliable response
• Abschalt- und Einschaltautomatik für maximale Batterielebensdauer
• with rail

Package includes riflescope caps for front lens/eyepiece, cleaning tissue, battery, instruction manual

Front lens diameter 56 mm

Magnification 2.4 – 16 x

Zoom 6.7 x

Field of view at 100 m (min. up to max. magnification) 17 m to 2.6 m

Eye relief > 3.5 in / 90 mm

Exit pupil 12.4 - 3.5 mm

Parallax-free adjustable, 50 m to infinity

Diopter compensation –4/+3 dpt

Coating AquaDura® lens coating

Transmission approx. 92 %

Mounting option 1.18 in / 30 mm rings / Zeiss internal rail

Impact point correction 1 click = 1 cm/100 m (~~1⁄3 MOA), 150 x140 cm

Front lens filter thread M 58 x 0.75 mm

Length 14.2 in / 360 mm

Weight 27.7 oz / 785 g / [with rail: 28.7 oz / 815 g]

Waterproof waterproof to 13.1 ft / 4 m; nitrogen-filled

Available reticles 4a, Ballistic

Reticle illumination / type yes/dot

Automatic switch-off 3 min, ± 75°

Automatic switch-on yes, activated by position and/or movement

Battery 1 x CR2032

Order No. (Reticle)

4a / with rail 54130 / 54131

4a with BDC / with rail 54132 / 54133

Ballistic / with rail - -

Ballistic with BDC / with rail - -
