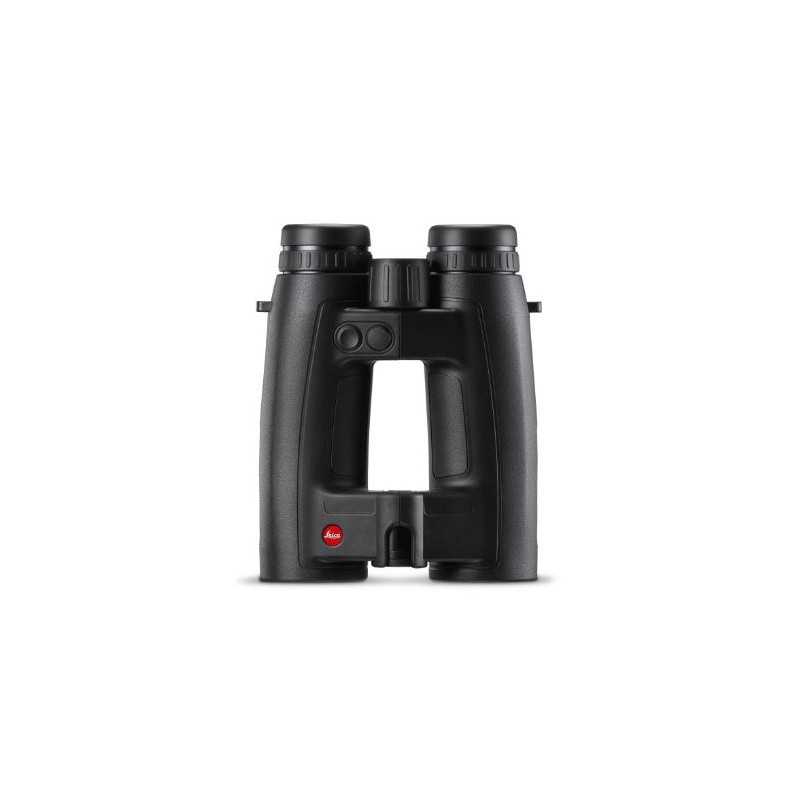

Leica Geovid 8x42 HD-R 2700 Binoculars 40803

The Geovid HD-R 2700 combines ergonomic design and razor-sharp, high-contrast images, along with reliable ballistics.

Easy, intuitive operation is guaranteed: equivalent horizontal range (EHR) output requires no pre-programming. In steep terrain, EHR gives you greater safety and flexibility. Leica's own algorithm takes into account not only the linear distance and angle but also a realistic ballistic trajectory, making it much more accurate than the cosine function known as Rifleman's Rule. The result is a highly precise calculation of the EHR at a ballistic function range of 1,200 yds/1,100 m.

Thanks to patented Perger-Porro prisms, optimized coatings and the unique Leica baffle system, third-generation Geovid HD-R models achieve excellent values in terms of contrast, transmission and stray-light suppression - for maximum performance until night sets in.

Package includes contoured neoprene carrying strap front lens caps, eypiece caps, battery, Cordura case

Magnification 8 x

Front lens diameter 42 mm

Exit pupil 5.2 mm

Twilight factor 18.3

Field of view at 1,000 yds/1,000 m 128.7 yds (386.1 ft) / 128.7 m

Close focus range approx. 16.5 ft / 5.0 m

Diopter compensation ± 4 dpt

Distance measurement:

Range 10 yds to approx. 2,700 yds / 10 m to approx. 2,500 m

Equivalent horizontal range (EHR) 10 yds to 1.200 yds / 10 m to 1,100 m

Measuring accuracy ± 1 yd / m to 547 yds / 500 m, ± 2 yds / m to 1,094 yds / 1,000 m, ± 0,5 % beyond 1,094 yds / 1,000 m

Display LED display with 4 characters and ambient-light-controlled brightness

Eyecup with twist-and-pull action yes, detachable, with 4 click-stops

Focusing internal focusing with center focusing barrel

Prism system Perger Porro-System

Coating HDC® multicoating, AquaDura® lens coating

Waterproof up to 16.5 ft / 5 m

Body magnesium, nitrogen-filled

Dimensions (W x H x D) 4.9 x 7.0 x 2.8 in / 125 x 178 x 70 mm

Weight approx. 34.3 oz / 975 g incl. battery

Yard/Meter switch yes

Laser eye-safe, invisible light laser compliant with EN and FDA Class 1

Measuring mode scan mode, single measurement

Power supply 1 x 3 V/ CR2 lithium button cell

Battery lifetime approx. 2,000 measurements at 68° F / 20°C

Accessories tripod adapter (42 220) floating carrying strap (42 163)
