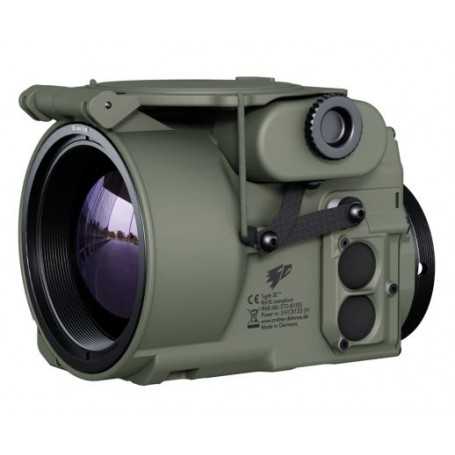

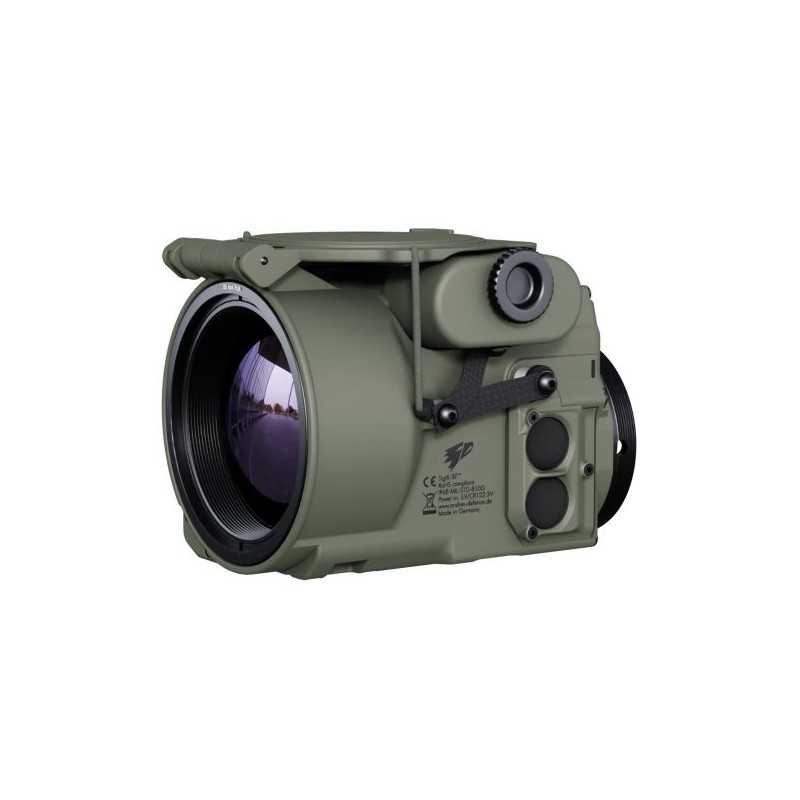

Andres TigIR-3Z Thermal Imaging Device

The TigIR-Z is currently the lightest and smallest thermal imaging device with 55mm optics. No other device reaches a range (standing man) of 3000m with such a short overall length of only 111mm. These small dimensions could only be achieved by developing a specially folded eyepiece optics. This allows to use the instrument in front of different spotting scopes (3-7x) etc. without loss of quality. Since the entire housing is made of highly stable aluminum and the objective optics are thermal, the TigIR has an outstanding precision even under extreme temperature conditions. The housing surface is hard anodized and coated with a scratch-resistant ceramic paint. Thus, the TigIR defies even hard knocks in rough environments, yet weighs only around 527g, making it lighter than any other comparable device.

The standard scope of delivery contains the following components:

Quick Start Guide

4 Batteries CR123

Cleaning cloth

Key for clamping-screw

Manual

Thread cap

Technical specifications:

320×256 pixel

60mK (as special version also with 40mK)

Application: –32° to +60°C / Storage –40° to +80°C

Water protection: IP68

Impact protection: MIL 810F 516 IV (26 falls from 1.22m)

Video Output: PAL/NTSC

Dimensions: Length: 111mm, Width: 78mm, Height: 80mm

Weight: approx. 527g without accessories

Screen resolution: 873×500 pixels

Materials:

Case: Aluminum (hard anodized and scratch-resistant ceramic-coated)

color: green

All specifications are subject to change without notice.
