Andres TigIR-6Z+ Thermal Imaging Device
Discover the Andres TigIR-6Z+, an incredibly compact and lightweight thermal imaging device featuring 55mm optics. With its small size and lightweight design, this advanced thermal imaging solution redefines portability, making it a top choice for professionals and enthusiasts alike. Boasting Product No.: 240401, the TigIR-6Z+ not only excels in form but also function, providing superior performance in various environments and applications. Don't miss out on the opportunity to experience this state-of-the-art thermal imaging device that sets a new standard in the industry.
9266.88 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description

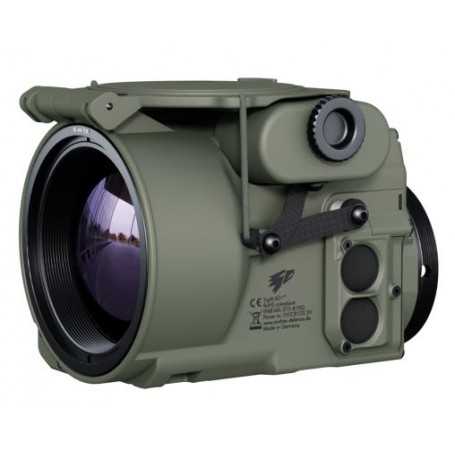

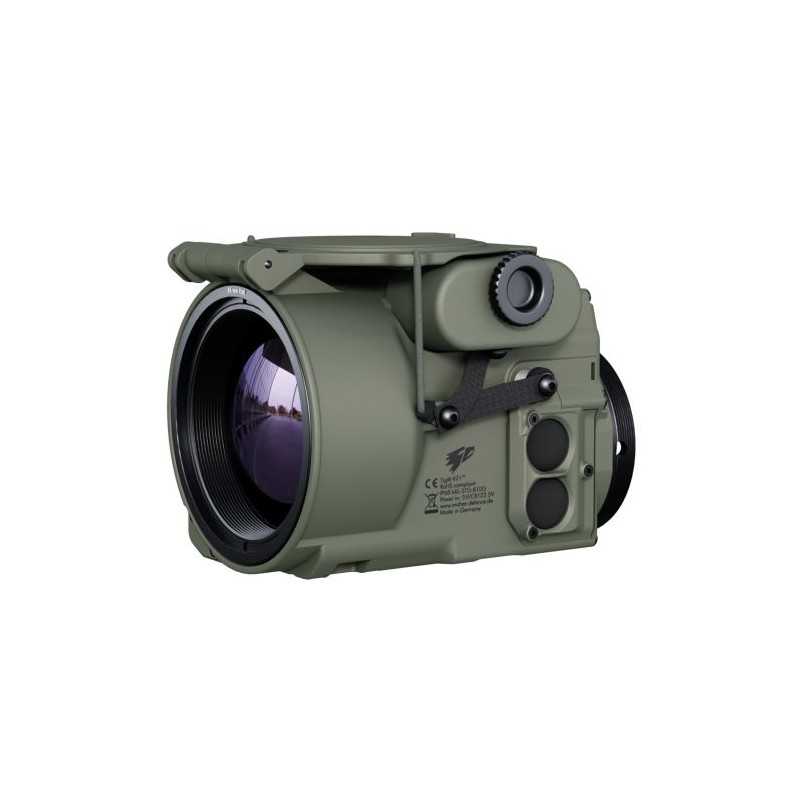

The TigIR-Z is currently the lightest and smallest thermal imaging device with 55mm optics. No other device reaches a range (standing man) of 3000m with such a short overall length of only 111mm. These small dimensions could only be achieved by developing a specially folded eyepiece optics. This allows to use the device in front of different spotting scopes (3-7x) etc. without loss of quality. Since the entire housing is made of highly stable aluminium and the objective optics are athermal, the TigIR has outstanding precision even under extreme temperature conditions. The housing surface is hard anodized and coated with a scratch-resistant ceramic lacquer. Thus, the TigIR defies even hard knocks in rough environments, yet weighs only around 527g, making it lighter than any other comparable device.
The standard scope of delivery contains the following components:
Quick Start Guide
4 Batteries CR123
Cleaning cloth
Key for clamping-screw
Manual
Thread cap
Big outdoor case
Technical specifications:
640×512 pixel (60Hz)
40mk (as special version also with 60mK)
Application: –32° to +60°C / Storage –40° to +80°C
Water protection: IP68
Impact protection: MIL 810F 516 IV (26 falls from 1.22m)
Video Output: PAL/NTSC
Dimensions: Length: 111mm, Width: 78mm, Height: 80mm
Weight: approx. 527g without accessories
Screen resolution: 873×500 pixels
Materials:
Case: Aluminum (hard anodized and scratch-resistant ceramic-coated)
color: green
All specifications are subject to change without notice.
