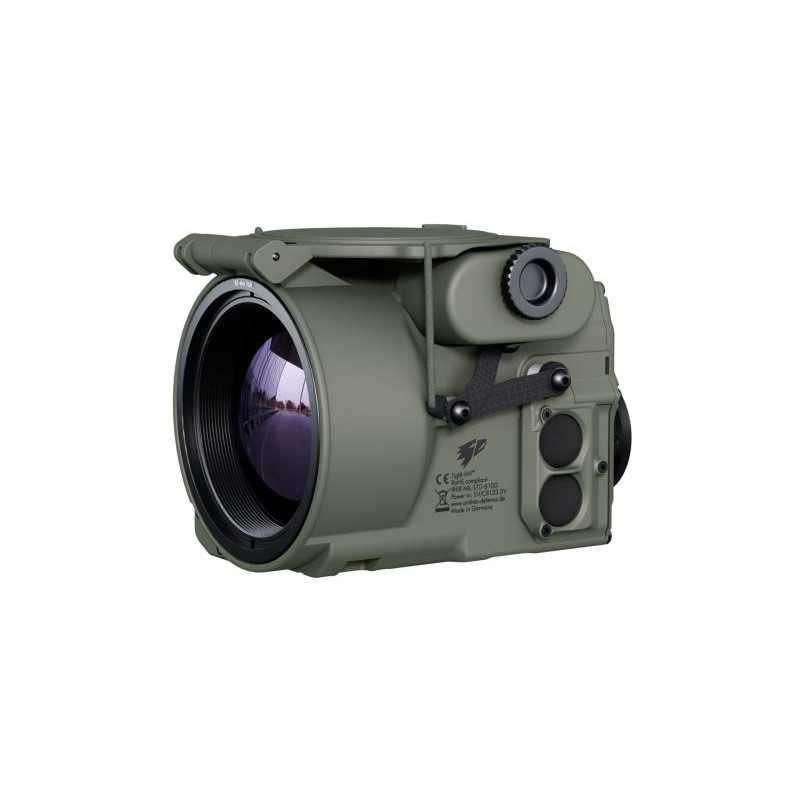

Andres TigIR-6M SW Thermal Imaging Device
Discover the unparalleled performance of the Andres TigIR-6M™, a state-of-the-art thermal imaging device engineered in Germany. With its compact design, this remarkable clip-on thermal features 55mm optics, making it the shortest of its kind on the market. Its innovative technology ensures crisp, clear imaging in various lighting conditions, enhancing your viewing experience and providing optimal reliability. Don't miss out on the opportunity to elevate your equipment with the TigIR-6M™ thermal imaging device (Product No.: 240490).
10296.53 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The TigIR-6M™ manufactured in Germany is currently the shortest Clip-on Thermal with 55mm optics. The device is ideally suited for use in combination with 3-4x magnifying scopes. The extremely short design of only 111mm makes a mounting on machine guns possible, where due to the design there is only little space available for an attachment. In combination with certain scopes, such as the ELCAN Specter, the device protrudes only 10cm beyond the optics.
The robust aluminium housing offers good protection against drops and ensures consistently high precision even at different environmental temperatures.
The standard scope of delivery contains the following components:
Quick Start Guide
4 Batteries CR123
Cleaning cloth
Key for clamping-screw
Manual
Thread cap
Big outdoor case
NSN 5855-12-416-6304 : Ref 240400 TIG IR-6M
Technical specifications:
640×512 pixel (60Hz)
40mk (as special version also with 60mK)
Application: –32° to +60°C / Storage –40° to +80°C
Water protection: IP68
Impact protection: MIL 810F 516 IV (26 falls from 1.22m)
Video Output: PAL/NTSC
Dimensions: Length: 111mm, Width: 78mm, Height: 80mm
Weight: approx. 527g without accessories
Screen resolution: 873×500 pixels
Materials:
Case: Aluminum (hard anodized and scratch-resistant ceramic-coated)
color: green
All specifications are subject to change without notice.
Data sheet
