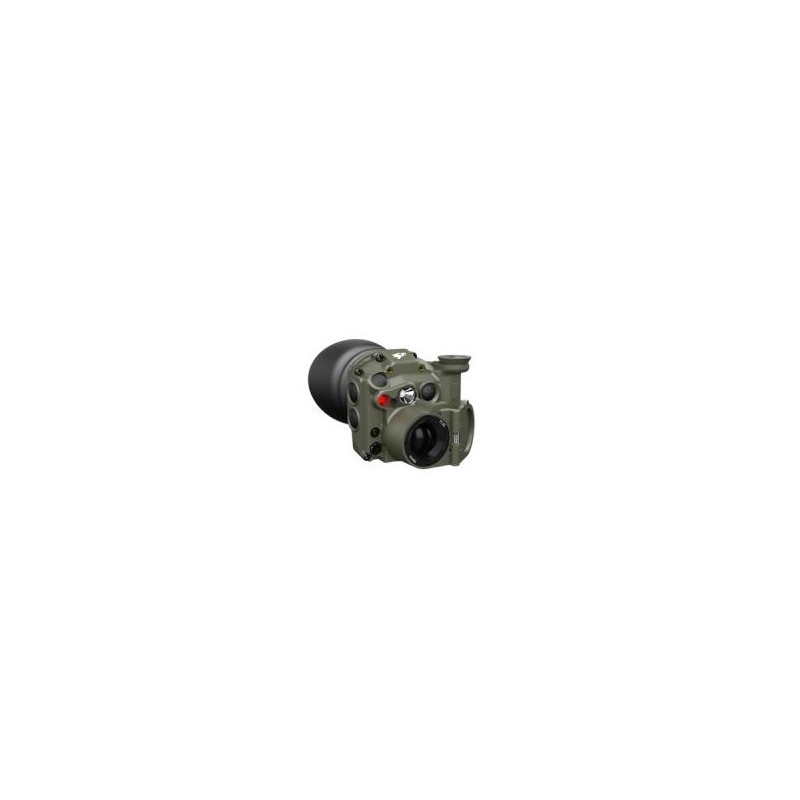

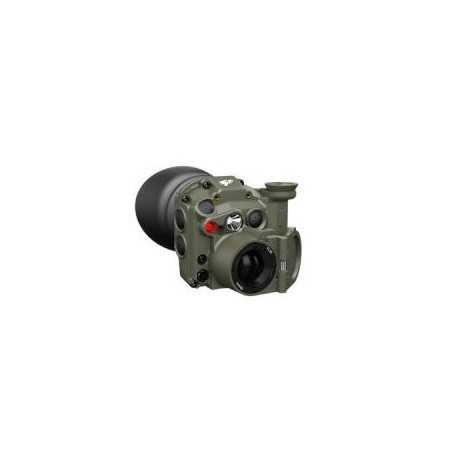

Andres TILO-3Z+ oliv Thermal Imaging Goggles

Experience the world's smallest thermal imaging goggles with the Andres TILO-3Z+ oliv. These ultra-compact and lightweight goggles deliver outstanding night vision, suitable for any lighting condition. Versatile in function, they also serve as a headlamp, perfect for tactical operations, search and rescue, wildlife observation, and outdoor activities. Enhance your adventures with the unmatched convenience and performance of this innovative device. Product No.: 380113.
63287.48 kr
Tax included

51453.23 kr net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Andres TILO-3Z+ Oliv Thermal Imaging Goggles with Headlamp Functionality

Introducing the TILO-3Z+ Oliv Thermal Imaging Goggles, the world’s smallest thermal imaging goggles that double as a headlamp. This advanced version of the TILO-3Z™ offers exceptional thermal resolution and image clarity in a compact design.

With a superior thermal resolution of <40mK, the TILO-3Z+™ delivers high-contrast images even in challenging environments. This level of quality is often only found in larger, cooled thermal imaging devices.

The professional-grade TILO-3Z+™ boasts a high frame rate of 60Hz, providing stable images with virtually no delay between the sensor and screen display.

Technical Specifications:

  • Sensor Resolution: 320×256 pixels at 60Hz
  • Temperature Resolution: <40mK
  • Operating Temperature: –30° to +60°C
  • Storage Temperature: –40° to +80°C
  • Water Protection: IP68
  • Impact Protection: MIL 810F 516 IV (26 falls from 1.22m)
  • Video Output: PAL/NTSC
  • Dimensions: Length: 40mm, Width: 64mm, Height: 67mm
  • Weight: Approx. 100g without accessories
  • Screen Resolution: 873×500 pixels
  • Materials: Polyamide case with cold fracture resistant nanotube reinforcement, sapphire crystal eyepiece cover
  • Color: Olive

Note: Specifications are subject to change without notice.

Scope of Delivery:

  • TILO-3Z+™
  • Eyecup
  • CR123 Battery
  • Cleaning Cloth
  • Small Hand Strap
  • Waterproof Carrying Case
  • Quick Start Guide
  • Manual
This revised description enhances readability and provides a clear, structured presentation of the product's features and specifications using HTML formatting.

Data sheet

6G0P1BSN1B
