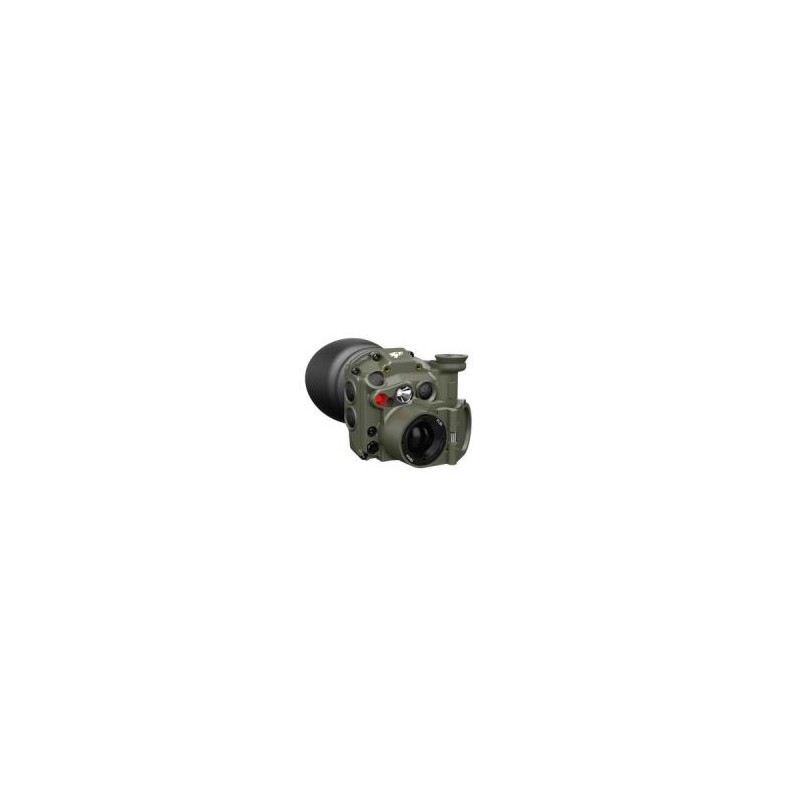

Andres TILO-3Z+2x oliv Thermal Imaging Device
Upgrade your thermal imaging experience with the Andres TILO-3Z+2x oliv Thermal Imaging Device. Boasting a more powerful lens than the standard TILO-3™, this exceptional piece of equipment (Product No: 380112) delivers superior image clarity and detection capabilities. Designed for various applications, including search and rescue, security, hunting, and wildlife observation, this versatile device offers an impressive field of view and extended range. The compact and lightweight design ensures effortless use and portability, while the advanced thermal imaging technology ensures that you never miss a detail. Explore the world in a new light with the remarkable Andres TILO-3Z+2x oliv Thermal Imaging Device.
5457.16 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
This is a TILO-3™ with a more powerful lens. That makes it more suitable for long-range reconnaissance. Due to the double optical magnification, the TILO-3Z+2× has a high detection range of 1000 meters, just like the TILO-6™, but for a more comfortable price.
With the TILO-3Z+2×™, the viewing angle drops from 24° to 12° due to the stronger magnification.
Technical specifications:
320×256 pixel 60Hz Sensor resolution microbolometer
<40mK temperature resolution
Application: -30° to +60°C / Storage -40° to +80°C
Water protection: IP68
Impact protection: MIL 810F 516 IV (26 falls from 1.22m)
Video Output: PAL/NTSC
FOV: horizontal 12° / vertical 9,5°
Dimensions: Length: 58mm, Width: 64mm, Height: 67mm
Weight: approx. 128g without accessories
Screen resolution: 873×500 pixels
Materials: Case: Polyamide, cold fracture resistant reinforced with nanotubes, sapphire crystal eyepiece cover, color: oliv
All specifications are subject to change without notice.
Scope of delivery: TILO-3Z+2×™, eyecup, CR123 battery, cleaning cloth, small hand strap, waterproof carrying case, quick start guide, manual
Data sheet
