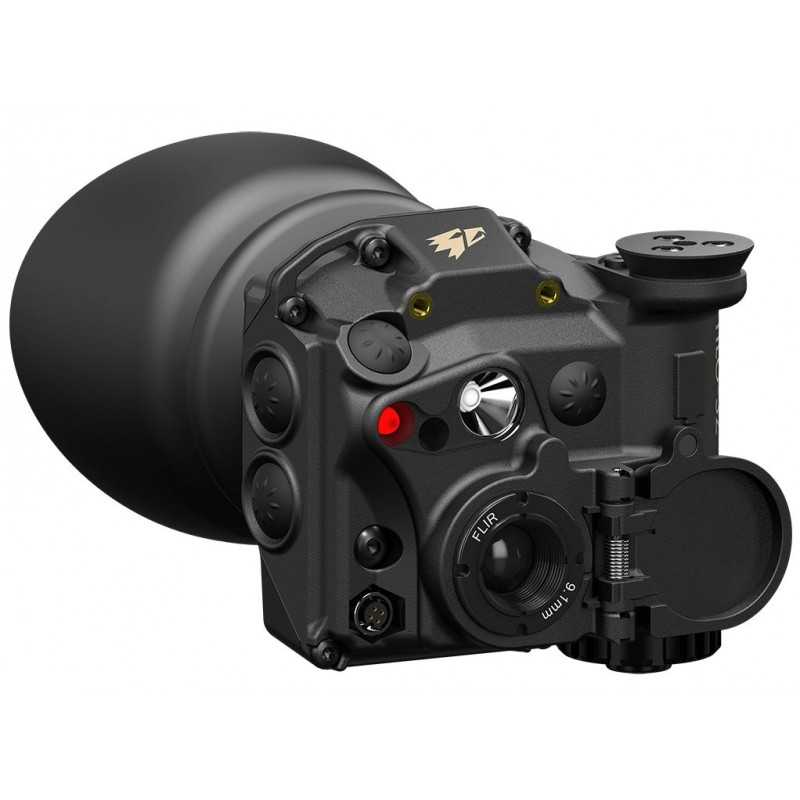

Andres TILO-3Z Thermal Imaging Device

Discover the remarkable capabilities of the Andres TILO-3Z Thermal Imaging Device, the world's smallest thermal imaging goggle. With its compact size and lightweight design, it is ideal for use as a headlamp. This versatile device (Product No.: 380103) offers unparalleled convenience and functionality for various applications, from outdoor adventures to professional tasks. Experience top-quality thermal imaging performance and transform the way you see the world with the TILO-3Z. Don't miss out on the chance to enhance your visual experience with this innovative and compact device.

4431.49 $
Tax included

3602.84 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The TILO-3™ is the smallest thermal imaging goggle in the world, so its use as a headlamp is recommended.

Special features TILO-3Z™

The TILO-3Z™ is a cost-effective entry-level version of the TILO-3™ series. It has a good thermal resolution of <60mK and thus provides good images under normal ambient conditions.



Technical specifications:

320×256 pixel 60Hz Sensor resolution microbolometer

<60mK temperature resolution

Application: -20° to +60°C / Storage -40° to +80°C

Water protection: IP65

Impact protection: MIL 810F 516 IV (26 drops from 1.22m)

Video Output: PAL/NTSC

Dimensions: Length: 40mm, Width: 64mm, Height: 67mm

Weight: approx. 100g without accessories

Screen resolution: 873×500 pixels

Materials: case: polyamid, cover eyepiece made of hardened PMMA-plastics, color: black

Scope of delivery: TILO-3Z™, CR123 battery, cleaning cloth, small hand strap, quick start guide, manual

Data sheet
