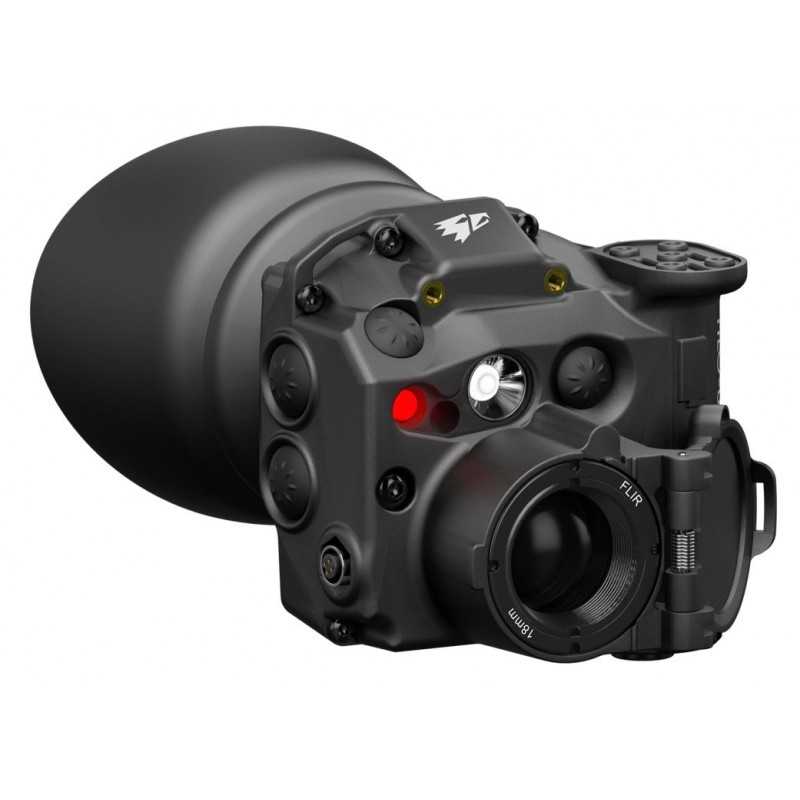

Andres TILO-6Z Thermal Imaging Device
Discover advanced thermal imaging capabilities with the Andres TILO-6Z Thermal Imaging Device, our top-of-the-line offering in this category. Boasting cutting-edge technology, this product (No. 380106) delivers unparalleled performance, making it an ideal choice for various applications, including surveillance, wildlife observation, and search and rescue operations. The TILO-6Z's ergonomic design, precision optics, and high-resolution imaging ensure superior image quality, even in challenging conditions. So, upgrade to the Andres TILO-6Z Thermal Imaging Device and experience exceptional performance that meets all your thermal imaging needs.
6691.81 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The TILO-6™ is our new flagship in thermal imaging. With its 640×512 pixel sensor resolution and a thermal resolution of <40mK, no wishes are left unfulfilled. The Z-version, on the other hand, offers a low-cost entry with 60mK thermal resolution.
Technical specifications:
640×512 pixel 60Hz Sensor resolution microbolometer
<60mK temperature resolution
Application: -20° to +60°C / Storage -40° to +80°C
Water protection: IP65
Impact protection: MIL 810F 516 IV (26 falls from 1.22m)
Video Output: n.o.
FOV: horizontal 24° / vertical 19°
Dimensions: Length: 58mm, Width: 64mm, Height: 67mm
Weight: approx. 128g without accessories
Screen resolution: 873×500 pixels
Materials: Case: polyamid, cover eyepiece made of hardened PMMA-plastics, color: black
