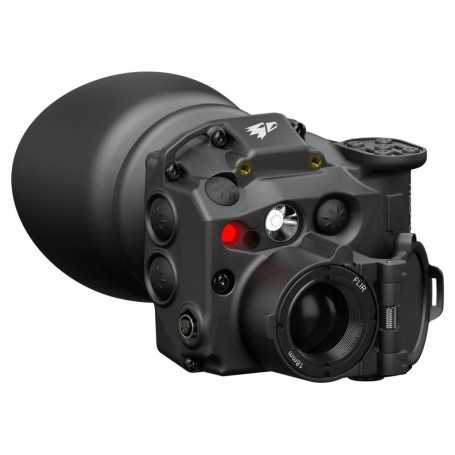

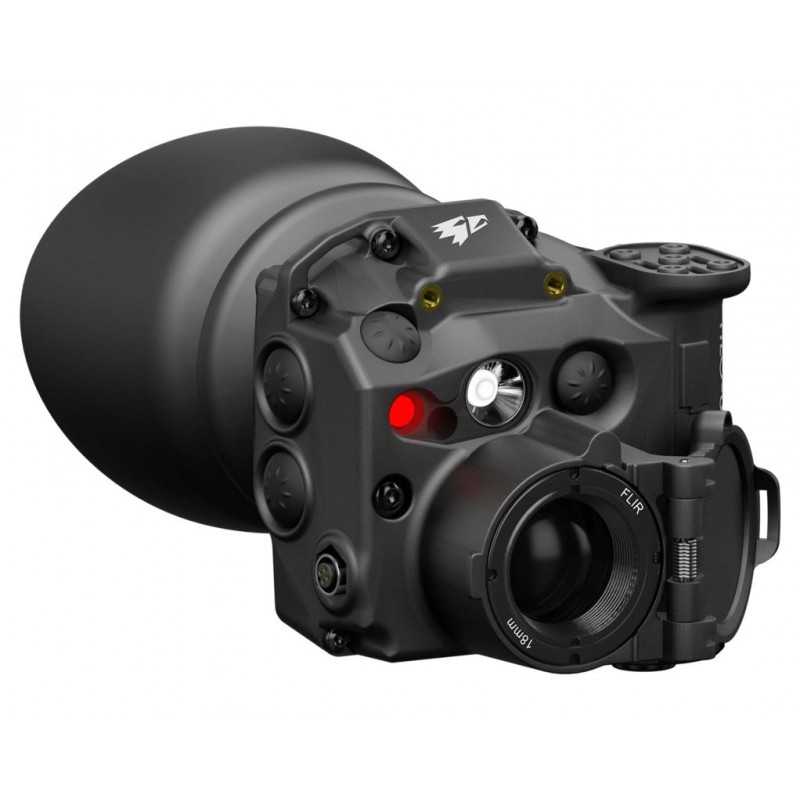

Andres TILO-6Z+ Thermal Imaging Device
Discover our top-of-the-line Andres TILO-6Z+ Thermal Imaging Device, equipped with advanced technology to suit all your thermal imaging needs. As our latest flagship product (Product No: 380107), the TILO-6Z+ offers exceptional image quality and performance, providing users with a reliable and efficient imaging solution in various environments. This versatile device features high-resolution imaging, user-friendly design, and a range of essential features aimed at enhancing your thermal imaging experience. Choose the TILO-6Z+ and experience the ultimate in thermal imaging excellence. Don't miss out on this game-changing device!
8546.12 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The TILO-6™ is our new flagship in the field of thermal imaging. With its 640×512 pixel sensor resolution it achieves twice the range of the TILO-3Z+™ and a thermal resolution of <40mK, the Z+ leaves nothing to be desired.
Technical specifications:
640×512 pixel 60Hz Sensor resolution microbolometer
<40mK temperature resolution
Application: -30° to +60°C / Storage -40° to +80°C
Water protection: IP68
Impact protection: MIL 810F 516 IV (26 falls from 1.22m)
Video Output: PAL/NTSC
FOV: horizontal 24° / vertical 19°
Dimensions: Length: 58mm, Width: 64mm, Height: 67mm
Weight: approx. 128g without accessories
Screen resolution: 873×500 pixels
Materials: Case: polyamid, cold break resistant, reinforced with nanotubes, cover eyepiece made of crystal sapphire, color: black
All specifications are subject to change without notice.
Scope of supply: TILO-6Z+™, waterproof carrying case, battery extension, CR123 battery, eyecup, cleaning cloth, small hand strap, quick start guide, manual
