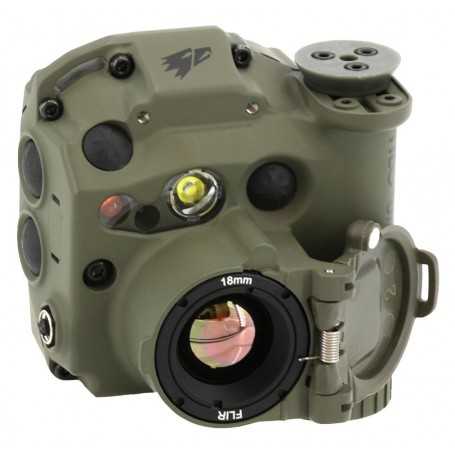

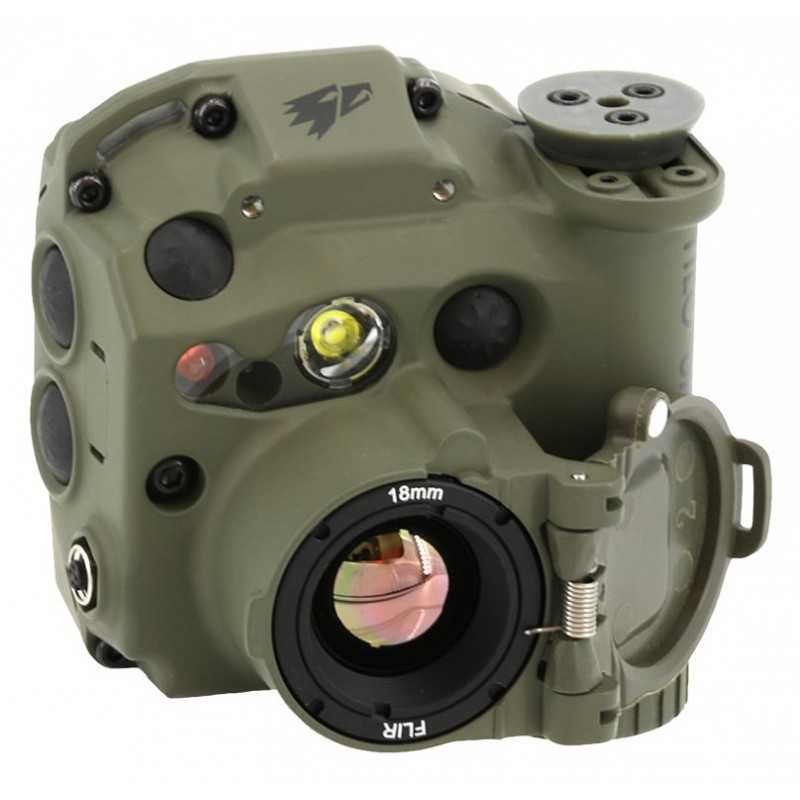

Andres TILO-6Z+A Thermal Imaging Device

The Andres TILO-6Z+A Thermal Imaging Device is an exceptionally durable and robust addition to the TILO series, designed to withstand tough conditions and demanding environments. This high-quality thermal imaging device (Product No.: 380115) offers advanced features and functionalities for diverse applications, making it an ideal choice for professionals and enthusiasts alike. Experience clear thermal imaging with its superior resolution, and perform effectively in various scenarios, such as search and rescue operations, nocturnal wildlife observation, and security surveillance. The Andres TILO-6Z+A is the perfect companion for those seeking a reliable and versatile thermal imaging solution.

11415.53 $
Tax included

9280.92 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The TILO-6Z+A™ is a particularly robust version of the TILO series. The housing has been milled completely from aluminum (AE), thus offering the following additional features:

  • Waterproof up to 20m
  • Bayonet adapter is part of the aluminium housing, therefore better precision and repeatability when used as clip-on thermal
  • Higher impact strength
  • Made of salt water resistant aluminum





Technical specifications:

640×512 pixel 60Hz Sensor resolution microbolometer

<40mK temperature resolution

Application: -32° to +60°C / Storage -40° to +80°C

Water protection: IP68

Impact protection: MIL 810F 516 IV (26 falls from 1.22m)

Video Output: PAL/NTSC

FOV: horizontal 24° / vertical 19°

Dimensions: Length: 58mm, Width: 64mm, Height: 67mm

Weight: approx. 152g without accessories

Screen resolution: 873×500 pixels

Materials: Case:aluminium, cover eyepiece made of crystal sapphire, color: olive

All specifications are subject to change without notice.

Scope of supply: TILO-6Z+A™, waterproof carrying case, battery extension, eyecup
