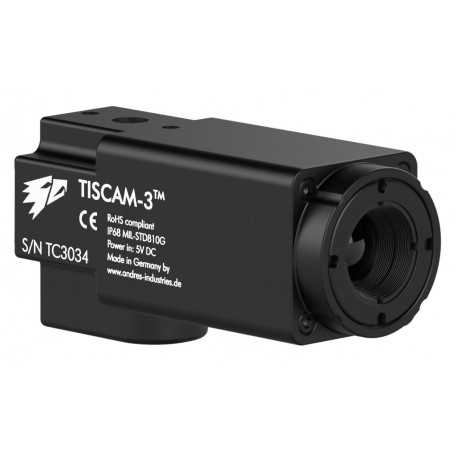

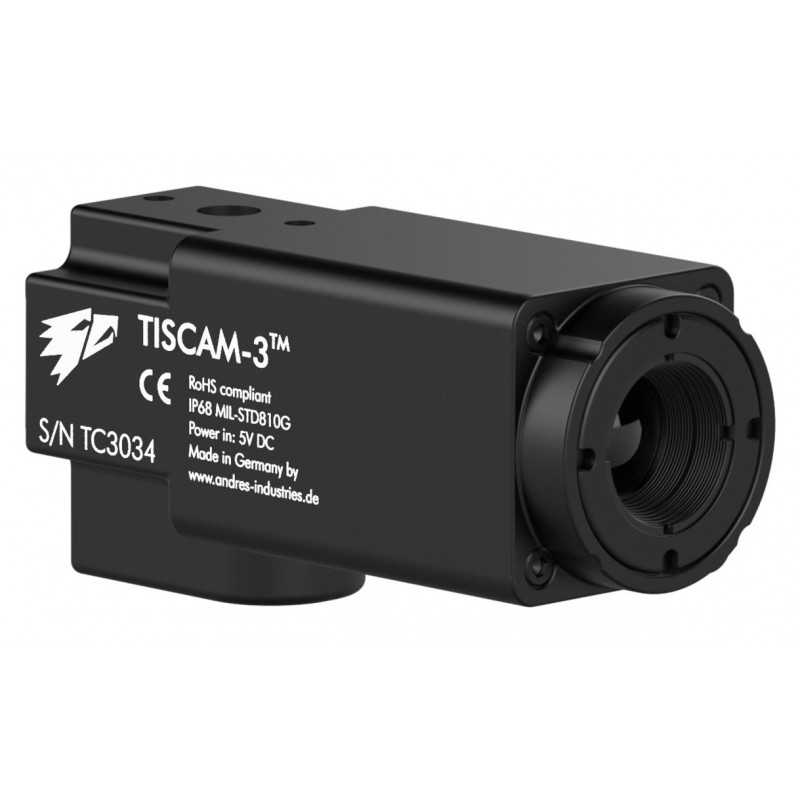

Andres TISCAM-3.24 (60mK) Thermal Imaging Camera

The Andres TISCAM-3.24 (60mK) Thermal Imaging Camera is an ideal choice for discreet outdoor surveillance. Its compact design makes it easy to conceal, providing seamless monitoring across diverse environments. With a 60mK sensitivity, it delivers sharp, detailed images in challenging conditions such as darkness or smoke. Whether for security, wildlife observation, or search and rescue, this versatile camera enhances situational awareness with its powerful thermal imaging capabilities. Product No.: 240324. Depend on the TISCAM-3.24 for reliable, unobtrusive surveillance in any setting.
454243.02 ₽
Tax included

369303.27 ₽ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Andres TISCAM-3.24 Thermal Imaging Camera - Compact High-Resolution Outdoor Device

The Andres TISCAM-3.24 is a remarkably compact thermal imaging camera designed for outdoor use. Its small size makes it incredibly easy to conceal, being barely thicker than a thumb, yet it delivers high-quality thermal images with a resolution of 320×256 pixels. This camera is perfect for discreet surveillance and outdoor monitoring.

The standard version includes a built-in socket for connecting a waterproof cable, ensuring durability and reliability. This cable not only transmits video data in PAL or NTSC formats but also supplies power to the camera.

Technical Specifications of TISCAM-3.24

  • Resolution Microbolometer: 320×256 pixels, 9Hz
  • Temperature Resolution: 60mK (available as 40mK in a special version)
  • Spectral Band / Pixel Spacing: 7.5 μm – 13.5 μm / 12 μm uncooled microbolometer
  • Sunlight Suitability: Can look directly into the sun for short durations
  • Filter Mode: White Hot (additional filters available upon request)
  • Field of View: 24°
  • Input Voltage: 5–12V
  • Video Output: PAL (standard), NTSC (optional), USB (special version)
  • Polarity / Filter: White Hot
  • FFC (Shutter): Flagshutter, corrected by software shutter
  • Operating / Storage Temperature: –20° to +60°C / –40° to +80°C
  • Water Resistance: IP68 rated
  • Maximum Altitude: 12km
  • Shock Resistance: 1.500g
  • Material: Housing made of anodised aluminum (7075), lens made of germanium
  • Dimensions: Length: 60mm, Width: 24mm, Height: 29mm (excluding mounting parts)
  • Weight: 57.7g

Note: All specifications are subject to change without notice.
