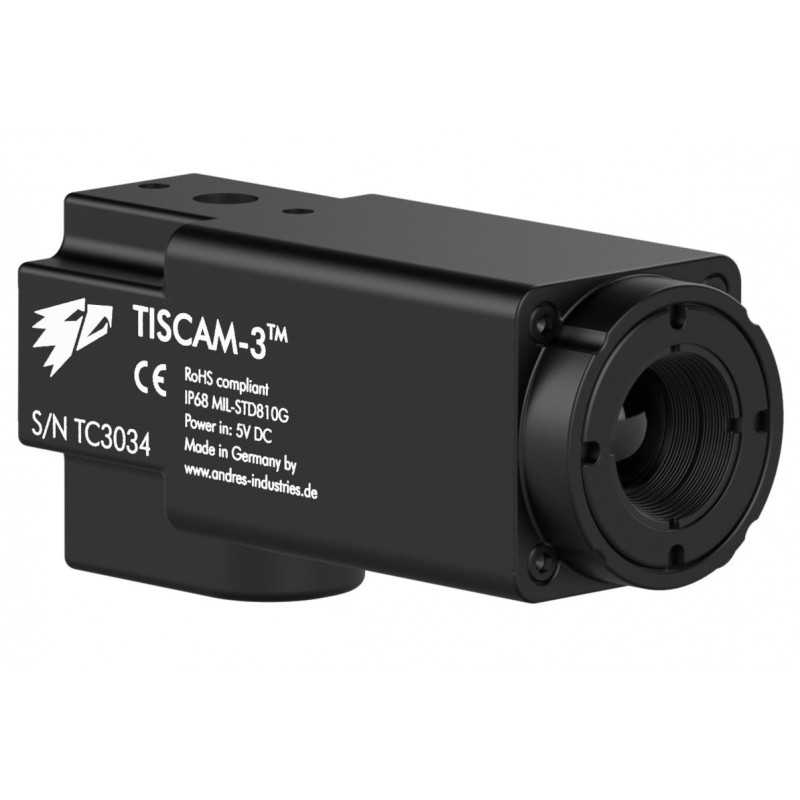

Andres TISCAM-3.34 (60mK) Thermal Imaging Camera

Presenting the Andres TISCAM-3.34 (60mK) thermal imaging camera, an ultra-compact outdoor solution perfect for discreet surveillance and monitoring. With its exceptionally small size, it can easily be concealed and blends into its surroundings seamlessly. Featuring a 60mK thermal resolution, it captures high-quality images, ensuring accurate detection even in challenging conditions. This camera is ideal for security, wildlife observation, and other applications requiring unobtrusive thermal imaging. Don't miss out on this incredibly efficient and easy-to-hide thermal camera – Product No. 240334.

5273.13 $
Tax included

4287.1 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The extremely small outdoor thermal imaging camera is particularly easy to hide for its small size. Barely thicker than a thumb, it delivers images of the highest quality of 320×256 pixels. The standard version has a built-in socket for the connection of a waterproof cable. This cable transmits the video data (PAL or NTSC) and supplies power to the unit.



Technical specifications TISCAM-3.34

Resolution Microbolometer: 320×256 Pixel, 9Hz

Temperature resolution: 60mK (40mK as special version)

Spectral band / pixel spacing: 7.5μm – 13.5μm / 12μm uncooled microbolometer

Suitable for sunlight: Looking directly into the sun is possible for a short time

Filter Mode: White Hot (more filters on request)

Field of View: 34°

Input voltage: 5–12V

Video output: PAL (standard), NTSC (possible), USB (special version)

Polarity / Filter: White Hot

FFC (shutter): Flagshutter, corrected by software shutter

Operating / storage temperature: –20° to + 60°C / –40° to + 80°C

Water resistance: IP68

Maximum height: 12km

Shock: 1.500g

Material: Housing: aluminum (7075) anodised, lens: germanium

Dimensions: Length: 60mm, Width: 24mm, Height: 29mm (without mounting parts)

Weight: 57.7g

All specifications are subject to change without notice.
