Andres TISCAM-3.50 (60mK) Thermal Imaging Camera

Experience the compact power of the Andres TISCAM-3.50 (60mK) thermal imaging camera, designed for effective outdoor surveillance and security. Its discreet size makes it easy to conceal, yet it delivers exceptional thermal imaging with a 60mK sensitivity, ensuring clear images in diverse lighting conditions. Perfect for wildlife monitoring, property surveillance, and more, this versatile camera enhances situational awareness and detection. Reliable and efficient, the TISCAM-3.50 is a must-have for anyone needing high-quality thermal imaging in a small, unobtrusive package. Explore the features of this remarkable camera - Product No. 240350.
7507.15 $
Tax included

6103.38 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

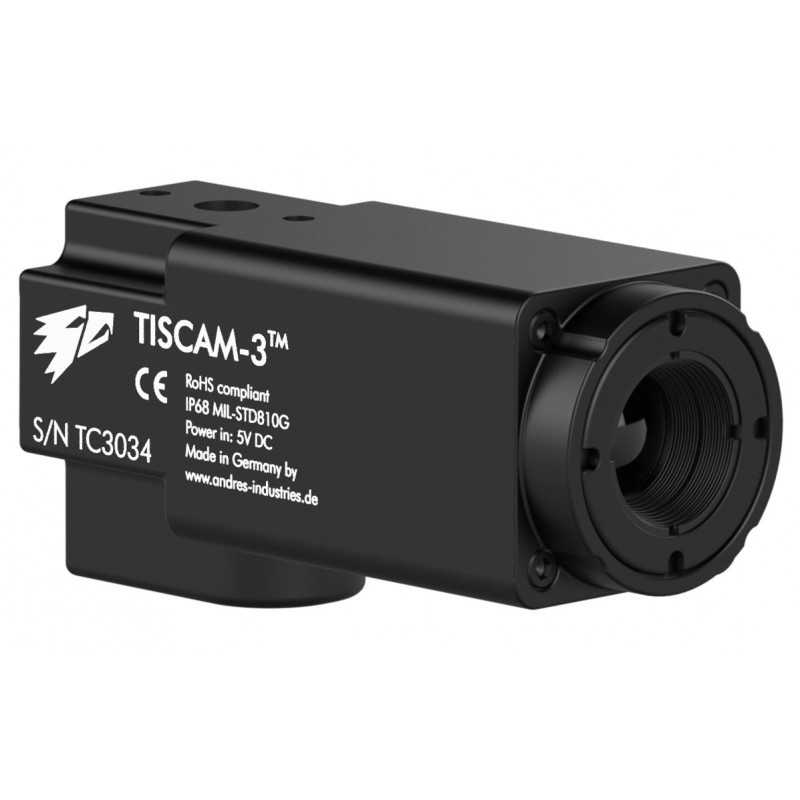

Andres TISCAM-3.50 Ultra-Compact Outdoor Thermal Imaging Camera

The Andres TISCAM-3.50 is a remarkably compact outdoor thermal imaging camera, designed for discreet placement due to its minimal size, barely thicker than a thumb. Despite its small stature, it delivers superior image quality with a resolution of 320x256 pixels.

The standard model includes a built-in socket for a waterproof cable, which serves the dual purpose of transmitting video data (PAL or NTSC) and providing power to the device.

Key Features:

  • Resolution: 320×256 Pixel, 9Hz
  • Temperature Sensitivity: 60mK, with an option for 40mK in a special version
  • Spectral Range: 7.5μm – 13.5μm, utilizing a 12μm uncooled microbolometer
  • Sunlight Tolerance: Can withstand direct sunlight exposure for a short duration
  • Filter Mode: White Hot (additional filters available upon request)
  • Field of View: 50°
  • Input Voltage: 5–12V
  • Video Output: PAL (standard), NTSC (optional), USB (available in special version)
  • Water Resistance: IP68 rating ensures durability in harsh conditions
  • Operating Temperature Range: -20° to +60°C
  • Storage Temperature Range: -40° to +80°C
  • Maximum Operational Altitude: 12km
  • Shock Resistance: Withstands up to 1,500g
  • Materials: Durable aluminum (7075) anodized housing, germanium lens
  • Dimensions: 60mm (Length) x 24mm (Width) x 29mm (Height) without mounting parts
  • Weight: 57.7g

Please note that all specifications are subject to change without notice. The Andres TISCAM-3.50 is available upon request.
