Andres TISCAM-3.90 (60mK) Thermal Imaging Camera

Discover the Andres TISCAM-3.90 (60mK) thermal imaging camera, an incredibly compact outdoor device that is easy to conceal, making it perfect for discreet surveillance and monitoring applications. With its small size, this high-performance thermal imaging camera is designed to be unobtrusive while providing reliable imaging in various environmental conditions. Product No.: 240390. Don't miss out on this powerful yet discreet tool that will enhance your security and safety measures.

5273.13 $
Tax included

4287.1 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

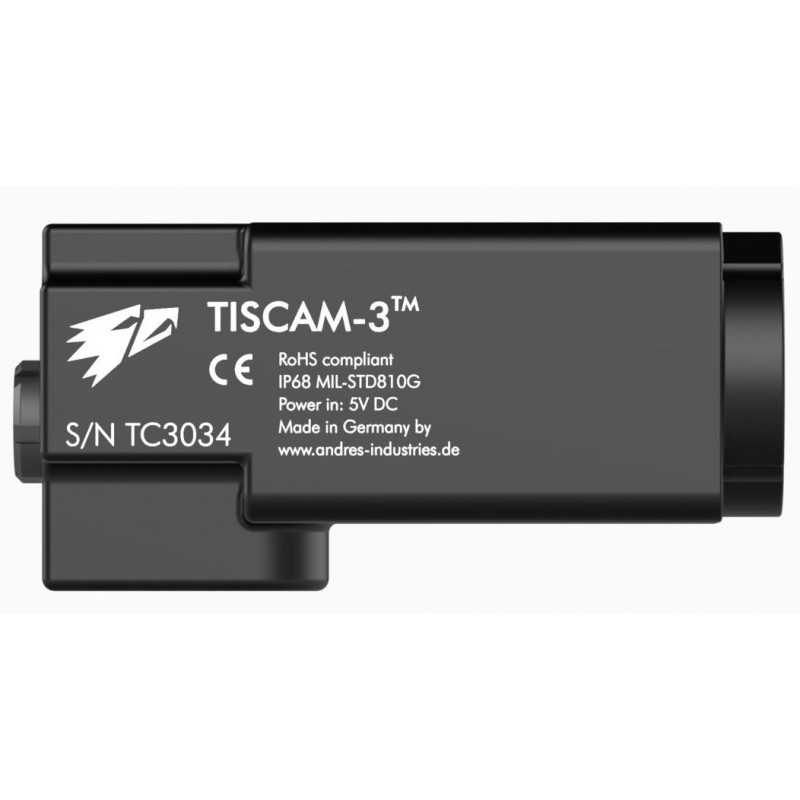

The extremely small outdoor thermal imaging camera is particularly easy to hide due to its small size. Barely thicker than a thumb, it delivers pictures of the highest quality of 320×256 pixels. The standard version has a built-in socket for the connection of a watertight cabel. This cable transmits the video data (PAL or NTSC) and supplies the device with power (5 – 18V).

To save weight, the device can also be supplied with a highly flexible special cable with open end or a connector according to customer requirements (for example Fischer connectors).



Special features TISCAM™ 24

Resolution Microbolometer: 320×256Hz

Temperature resolution: 60mK

Spectral band / pixel spacing: 7.5μm – 13.5μm / 12μm uncooled microbolometer

Suitable for sunlight: Looking directly into the sun is possible for a short time

Filter Mode: White Hot

Field of view: 90°

Input voltage: 5 – 18V

Video output: PAL (standard), NTSC (possible), USB (special resolution)

Polarity / Filter: White Hot

FFC (shutter): Flagshutter, corrected by software shutter

Operating / storage temperature: –20° to +60°C / –40° to +80°C

Water resistance: IP68

Maximum height: 12km

Shock: 1.5g

Material: Housing: aluminum (7075) anodised, lens: germanium

Dimensions: Length: 60mm; Width: 27mm; Height: 27mm (without mounting parts)

Weight: 57.7g

All specifications are subject to change without notice.
