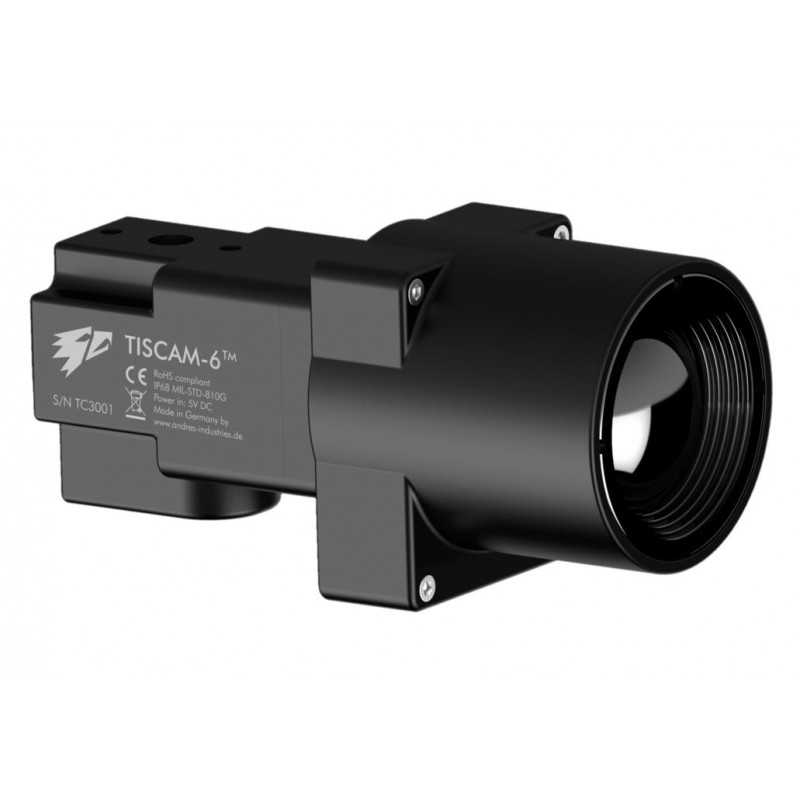

Andres TISCAM-6.24 (60mK) Thermal Imaging Camera

Discover the Andres TISCAM-6.24 (60mK) thermal imaging camera, an incredibly compact outdoor device designed for seamless concealment, thanks to its tiny size. With this high-performance gadget (Product No. 240394), you'll be able to capture clear and detailed thermal images while maintaining discretion. Ideal for a plethora of applications like wildlife observation, security monitoring, or search and rescue operations, this camera offers an excellent balance between size, power, and user-friendly operation. Explore a world of possibilities with the remarkable Andres TISCAM-6.24 thermal imaging camera and elevate your surveillance game to the next level!

8289.65 $
Tax included

6739.55 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The extremely small outdoor thermal imaging camera is particularly easy to hide for its small size. Barely thicker than a thumb, it delivers images of the highest quality of 640×512 pixels. The standard version has a built-in socket for the connection of a waterproof cable. This cable transmits the video data (PAL or NTSC) and supplies power to the unit.



Technical specifications TISCAM-6.24

Resolution Microbolometer: 640×512 Pixel, 60Hz

Temperature resolution: 60mK (40mK as special version)

Spectral band / pixel spacing: 7.5 μm – 13.5 μm / 12 μm uncooled microbolometer

Suitable for sunlight: Looking directly into the sun is possible for a short time

Filter Mode: White Hot (more filters on request)

Field of view: 24°

Input voltage: 5–12V

Video output: PAL (standard), NTSC (possible), USB (special version)

Polarity / Filter: White Hot

FFC (shutter): Flagshutter, corrected by software shutter

Operating / storage temperature: –20 to +60°C / –40 to +80°C

Water resistance: IP68

Maximum height: 12km

Shock: 1.500g

Material:Housing: aluminum (7075) anodised, lens: germanium

Dimensions: Length: 78mm, Width: 35mm, Height: 40mm (without mounting parts)

Weight: ca. 100g

All specifications are subject to change without notice.
