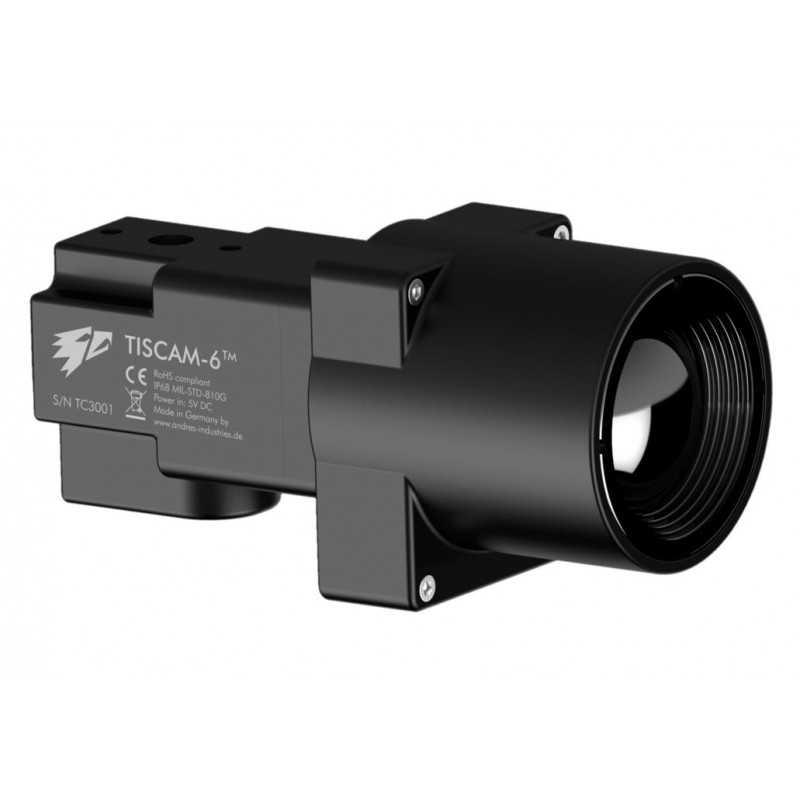

Andres TISCAM-6.32 (60mK) Thermal Imaging Camera

Introducing the Andres TISCAM-6.32 (60mK) Thermal Imaging Camera, a compact and discreet solution perfect for outdoor surveillance and monitoring. Its small size allows for easy concealment, providing effective security without drawing attention. Ideal for wildlife observation, perimeter security, and search and rescue operations, this camera delivers reliable and accurate imaging even in low visibility conditions. Despite its size, the TISCAM-6.32, product number 240395, offers top-notch performance at exceptional value. Discover the difference with the Andres TISCAM-6.32 Thermal Imaging Camera.
11502.17 $
Tax included

9351.36 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Andres TISCAM-6.32 Thermal Imaging Camera (60mK Resolution)

Discover the compact yet powerful Andres TISCAM-6.32 Thermal Imaging Camera, designed for outdoor enthusiasts and professionals who require high-quality imaging in a discreet form factor. This camera is barely thicker than a thumb, making it incredibly easy to conceal while delivering stunning image resolution of 640×512 pixels.

The standard version comes equipped with a built-in socket for connecting a waterproof cable, which not only supplies power to the unit but also transmits video data in PAL or NTSC formats.

Key Features:

  • Resolution: 640×512 Pixel, 60Hz
  • Temperature Resolution: 60mK (40mK available as a special version)
  • Spectral Band / Pixel Spacing: 7.5 μm – 13.5 μm / 12 μm uncooled microbolometer
  • Sunlight Tolerance: Can look directly into the sun for short periods
  • Filter Mode: White Hot (additional filters available on request)
  • Field of View: 32°
  • Input Voltage: 5–12V
  • Video Output: PAL (standard), NTSC (optional), USB (special version)
  • Polarity / Filter: White Hot
  • FFC (Shutter): Flagshutter, software-corrected shutter
  • Operating / Storage Temperature: –20 to +60°C / –40 to +80°C
  • Water Resistance: IP68
  • Maximum Operational Altitude: 12km
  • Shock Resistance: 1,500g
  • Material: Housing made of anodized aluminum (7075), lens crafted from germanium

Note: All specifications are subject to change without notice.
