Andres TISCAM-6.50 (60mK) Thermal Imaging Camera
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

Andres TISCAM-6.50 (60mK) Thermal Imaging Camera

Introducing the Andres TISCAM-6.50 (60mK) Thermal Imaging Camera, perfect for discreet outdoor monitoring. This compact and unobtrusive device ensures clear thermal imaging in any lighting, making it ideal for surveillance. With its robust, weather-resistant design, Product No. 240396 guarantees long-lasting performance in harsh environments. Enhance your security solutions with the efficient and reliable TISCAM-6.50 from Andres.
1225235.19 ¥
Tax included

996126.17 ¥ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

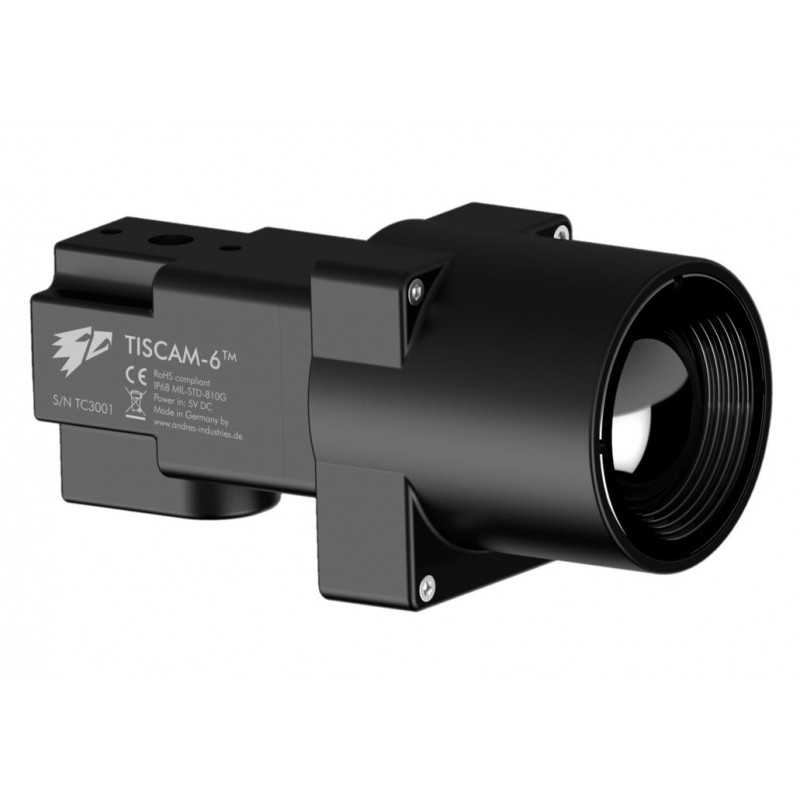

Andres TISCAM-6.50 Thermal Imaging Camera

The Andres TISCAM-6.50 is a remarkably compact outdoor thermal imaging camera, ideal for discreet installation due to its minimal size—barely thicker than a thumb. Despite its small stature, this camera delivers superior quality images with a resolution of 640×512 pixels.

The standard model features a built-in socket that connects to a waterproof cable. This cable is responsible for both transmitting video data (PAL or NTSC) and supplying power to the unit, ensuring a seamless and efficient operation.

Key Features:

  • Resolution Microbolometer: 640×512 pixels at 60Hz
  • Temperature Resolution: 60mK (40mK available as a special version)
  • Spectral Band / Pixel Spacing: 7.5μm – 13.5μm / 12μm uncooled microbolometer
  • Sunlight Compatibility: Can look directly into the sun for short durations
  • Filter Mode: Standard White Hot (additional filters available on request)
  • Field of View: 50°
  • Input Voltage: 5–12V
  • Video Output: PAL (standard), NTSC (optional), USB (special version)
  • Polarity / Filter: White Hot
  • FFC (Shutter): Flagshutter, corrected by software shutter
  • Operating / Storage Temperature: –20 to +60°C / –40 to +80°C
  • Water Resistance: IP68
  • Maximum Operational Height: 12km
  • Shock Resistance: 1.500g
  • Material: Housing made of anodized aluminum (7075), lens made of germanium
  • Dimensions: Length: 86mm, Width: 35mm, Height: 40mm (excluding mounting parts)
  • Weight: Approximately 130g

Note: All specifications are subject to change without notice.
