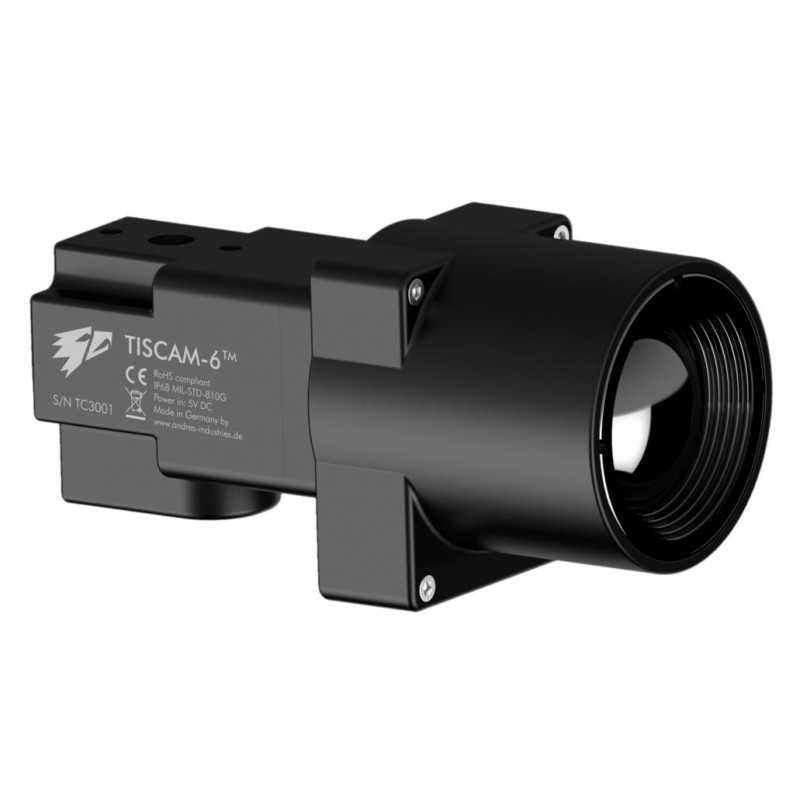

Andres TISCAM-6.95 (60mK) Thermal Imaging Camera

Experience the power and discretion of the Andres TISCAM-6.95 Thermal Imaging Camera, perfect for security and surveillance. Compact yet robust, this device offers high-precision imaging with 60mK sensitivity, ensuring clear results in any weather or lighting condition. Easily concealed, it’s ideal for outdoor use where discretion is key. Product No.: 240397. Upgrade your security measures with the versatile Andres TISCAM-6.95.
31327.83 ₪
Tax included

25469.78 ₪ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

Andres TISCAM-6.95 Thermal Imaging Camera (60mK Resolution)

The Andres TISCAM-6.95 Thermal Imaging Camera is an ultra-compact outdoor thermal camera that offers superior image quality and easy concealment. Designed to be discreet, it is barely thicker than a thumb yet delivers stunning 640×512 pixel resolution images.

Ideal for a variety of outdoor applications, the standard version of this camera features a built-in socket for a waterproof cable, allowing seamless transmission of video data (PAL or NTSC) and power supply to the unit. This makes it a versatile choice for both professional and personal use.

Key Features:

  • Resolution Microbolometer: 640×512 pixels, 60Hz refresh rate
  • Temperature Resolution: 60mK (40mK available as a special version)
  • Spectral Band / Pixel Spacing: 7.5μm – 13.5μm / 12μm uncooled microbolometer
  • Field of View: Wide 95° for expansive coverage
  • Video Output Options: PAL (standard), NTSC, USB (special version)
  • Water Resistance: Rated IP68 for robust outdoor performance
  • Operating Temperature Range: From –20 to +60°C
  • Storage Temperature Range: From –40 to +80°C
  • Material Construction: Durable aluminum (7075) anodized housing with germanium lens
  • Compact Size: Length 90mm, Width 35mm, Height 40mm (excluding mounting parts)
  • Lightweight: Approximately 120g
  • Shock Resistance: Withstands up to 1.500g
  • Maximum Operational Height: Up to 12km

Additional Information:

  • Filter Mode: White Hot (additional filters available upon request)
  • Sunlight Suitability: Direct viewing into the sun possible for short durations
  • Power Requirements: Input voltage of 5–12V
  • FFC (Shutter): Flagshutter, corrected by software shutter

Note: All specifications are subject to change without notice.

Whether you need a thermal imaging camera for security, wildlife observation, or any other outdoor activity, the Andres TISCAM-6.95 offers unbeatable performance in a compact, durable package.
