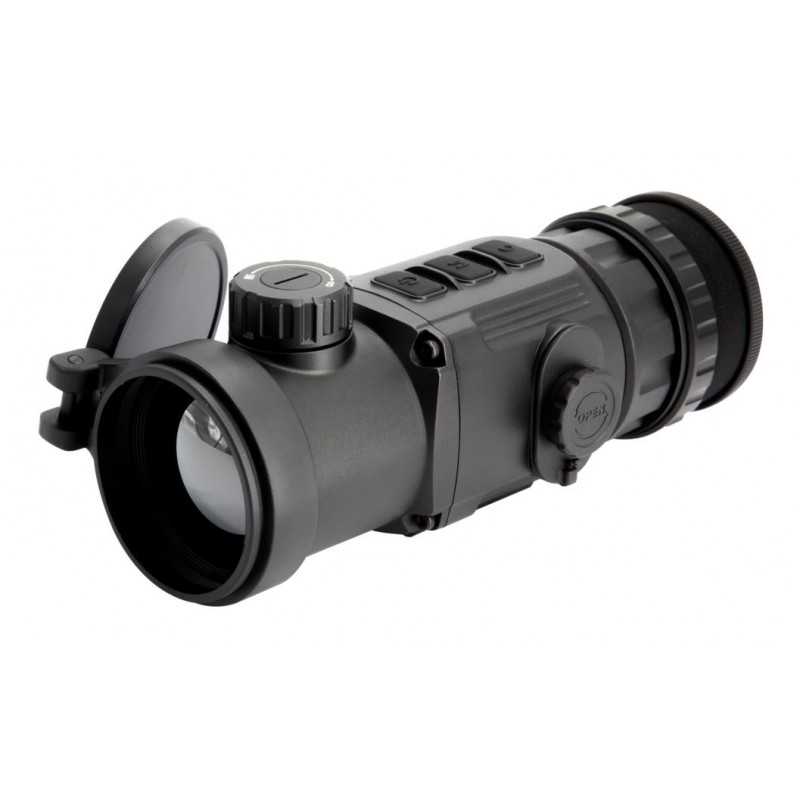

Andres Xeye CH50 Clip-on Thermal Device

Discover the impressive Xeye Clip-on CH50, a versatile, dual-use thermal clip-on device originating from China. This high-quality gadget boasts excellent workmanship and cutting-edge features, making it a standout addition to your gear collection. The CH50 can easily be attached to your existing optics for enhanced nighttime and low-light visibility, providing you with clear, thermal imaging for various applications. Don't miss out on owning this exceptional piece of technology – Product No. 250300 awaits to elevate your viewing experience!

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

The Xeye Clip-on CH50 is a dual-use thermal device from China that shines with good workmanship and state-of-the-art features. The 1024x768 pixel OLED screen delivers a razor-sharp image that can convince in all situations thanks to the built-in microbolometer with 640x512 pixel sensor. The detection range (standing man) is specified by the manufacturer as 2.6km. Due to the built-in tripod thread, the thermal imager can also serve as a stationary observation device. The Bluetooth remote control included in the scope of delivery is intended for attachment to the rifle and facilitates easy operation.

The focus can be adjusted manually; in addition, the CH50 scores with a recording function, compass, tilt angle sensor and Bluetooth connectivity to Infiray's own app (Google App Store: Xinfrared BC app).



Scope of delivery

Eyecup

Carrying case

Remote control

Data cable



Manufacturer: Infiray, PR China

Weight: 420g

Dimensions: 166x60x68mm

Color: Black Matt

Waterproof: IP66

Resolution microbolometer: 640x512px

Objective lens: 50mm

Pixel Pitch: 12μm

Zoom levels (digital): 2x, 4x

Diopter adjustment: -5 to +5

Frame rate: 50Hz

Batteries: 2x CR123 (not included)

Runtime: ~4h

Temperature range: -25°C to +50°C

Adapter ring: M52x0.75

Data sheet
