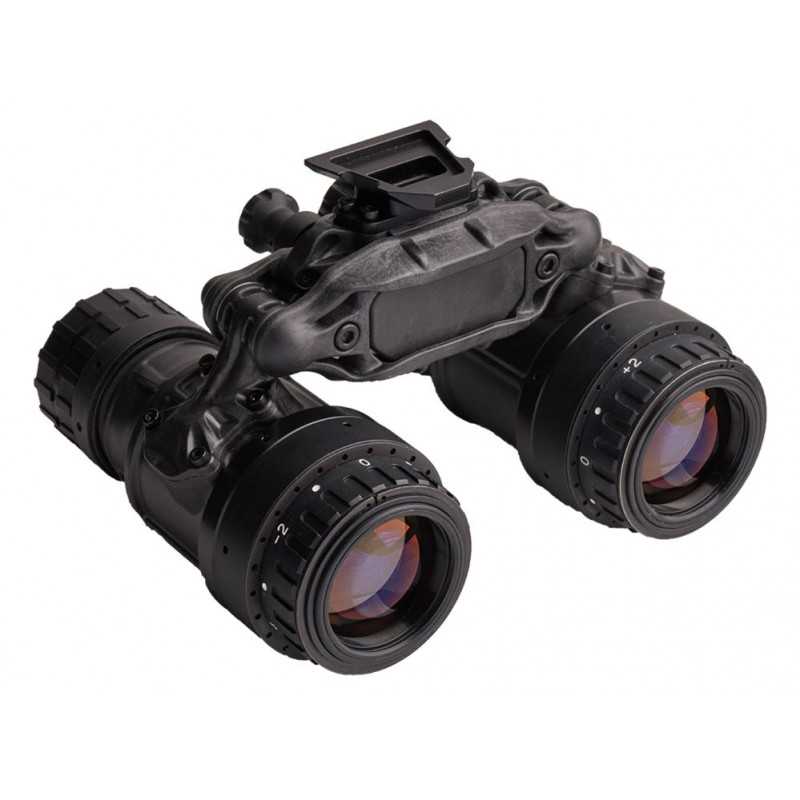

Andres DTNVS-14 LNS40 Optics and Harder Gen3 2400 FOM Autogated White Phosphor Harder Night Vision Binocular

State-of-the-art night vision technology meets outstanding wearing comfort - a first-class combo that can be individually customized according to individual wishes and needs.

The new DTNVS is lightweight and versatile. It can be hand-held as well as attached to a helmet or head mount. In addition, it can be individually adapted to the user via diopter adjustment, objective focus and eye relief adjustment (DTNVS Locking System).

The new binocular model owes its remarkably low weight and high stability to its fiber-reinforced polycarbonate body. Optionally, the unit can also be set to turn off automatically when folded up - thus not only saving energy, but also minimizing telltale stray light.

Other features include ACT's familiar individual ocular on/off switching, a battery and IR status indicator in the field of view, as well as a built-in IR LED for better close-range vision.

Binocular night vision devices offer the great advantage of true spatial vision, which provides significantly improved awareness when moving quickly in heterogeneous terrain or indoors.

Choose your body:

LNS40

The LNS40 Optics Package consists of the widely proven PVS14 optics. These are a glass optics with 40° FOV. This makes them heavier but also more durable for heavy duty use and more scratch and wear resistant. The eye piece has a diopter adjustment path from +2 to -6.

These optics are compatible with all PVS14 aftermarket accessories for objective and eye piece.

The optics meet the 20m for 2h submersion specification.

LWT40

The LWT40 Optics Package offers the same feel and functionality of PVS14 optics at a 30% weight reduction compared to the LNS40 Optics Package. The objective lens is noticeably shorter which may cause some compatibility difficulties. The eye piece is to a user virtually identical to the standard PVS14 eye piece in all ways, however lighter of course.The eye piece has a diopter adjustment path from +2 to -6.

The optics are hybrid optics that include some plastic lenses. These are potentially less robust against wear/scratches than regular full glass optics. The optics exceed the MilSpec for environmental tests as well as having an on par or better optical performance than most standard PVS14 optics.

The optics meet the 20m for 2h submersion specification.

LWT40D

The LWT40D Optics Package is the choice for best optical performance and a just barely 5% heavier than the LWT40 Optics package. The objective is the same as in the LWT40, a short and significantly lighter version of the PVS14 objective.

The eyepiece is the Ether eye piece which offers a significantly reduced weight, a bigger ocular diameter and a bigger eye box making it more comfortable to use. It has an adjustable diopter from +2 to -2, but other than conventional eye pieces the user can lock this setting via a locking. This avoids accidentally readjusting the diopter setting during use.

It is to be noted that the Ether eye piece due to its different dimension is incompatible with most standard accessories that screw into the PVS14 eye piece. It accepts the standard eye cup for PVS14 and therefor any accessories using the same attachment point.

Included in delivery:

2 Demist shields

2 Sacrificial lenses

2 Bikini cover

2 Day caps

1 MOLLE-Pouch

1 Manual Download card

1 Hard carrying case

Specifications:

Weight: 445 - 510g

Dimensions: 76 x 105 x 111 mm

Infrared Illuminator: Yes

IR Indicator: Yes (in FOV)

Low battery Indicator: Yes (in FOV)

Environmental Rating: Waterproof 20 m

Magnification: 1×

FOV: 40º

Lens System: F / 1.2

Diopter Adjustment: +2 to -6

Range of Focus: 25 cm to infinity

Power Supply: 1 x CR123

Standards: MIL-STD-810G
