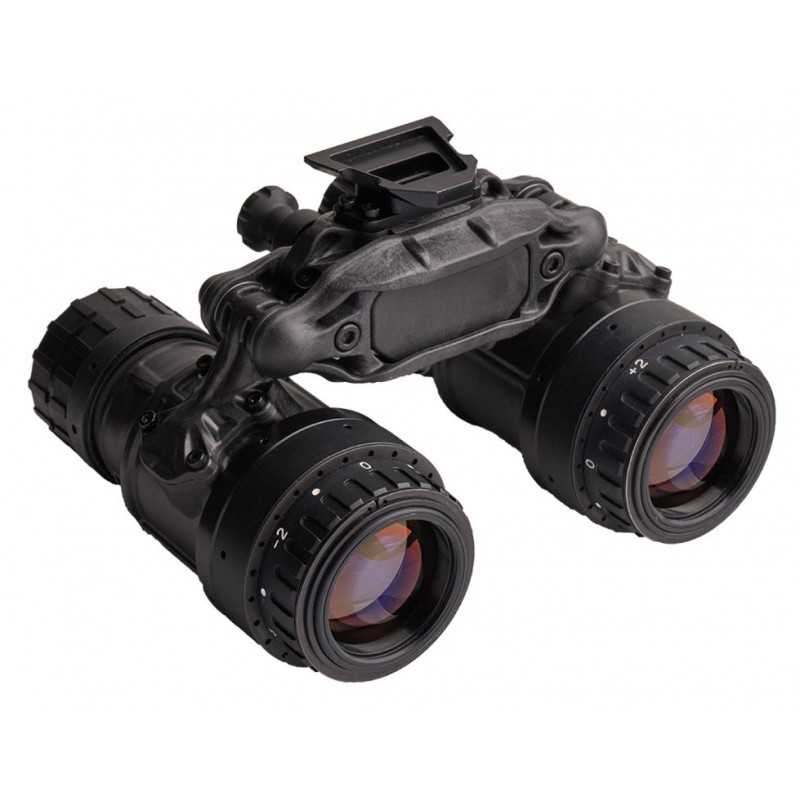

Andres DTNVS-14-LWT40D: Advanced Gen3 2400 FOM Autogated White Phosphor Night Vision Binocular

Experience state-of-the-art night vision technology combined with unparalleled comfort and customization. The Andres DTNVS-14-LWT40D offers a first-class night vision solution tailored to your specific needs.

Key Features

• Lightweight and versatile design for handheld, helmet, or head mount use.
• Customizable adjustments with the DTNVS Locking System:
  • Diopter adjustment
  • Objective focus
  • Eye relief adjustment
• Durable fiber-reinforced polycarbonate body for low weight and high stability.
• Optional auto-off feature to conserve energy and reduce stray light when folded.
• Individual ocular on/off switching for personalized use.
• Built-in IR LED for enhanced close-range vision.
• Battery and IR status indicators visible in the field of view.

Optics Packages

LNS40

The LNS40 Optics Package features tried-and-true PVS14 glass optics with a 40° field of view (FOV). While heavier, these optics are built for durability and resistance to scratches and wear. The eyepiece offers a diopter adjustment range from +2 to -6 and is compatible with all PVS14 aftermarket accessories.

LWT40

The LWT40 Optics Package reduces weight by 30% compared to the LNS40, maintaining the familiar feel and functionality of PVS14 optics. It uses hybrid optics with some plastic lenses, offering durability and environmental resistance. The diopter adjustment range is +2 to -6, and the optics meet 20m for 2h submersion specifications.

LWT40D

For the best optical performance, the LWT40D Optics Package offers a slight weight increase over the LWT40. It features the Ether eyepiece, which provides a larger ocular diameter and eye box for comfort. The diopter is adjustable from +2 to -2 and can be locked to prevent accidental changes. Note that the Ether eyepiece is incompatible with most standard PVS14 accessories but accepts standard PVS14 eye cups.

Included in Delivery

• 2 Demist Shields
• 2 Sacrificial Lenses
• 2 Bikini Covers
• 2 Day Caps
• 1 MOLLE-Pouch
• 1 Manual Download Card
• 1 Hard Carrying Case

Specifications

• Weight: 445 - 510g
• Dimensions: 76 x 105 x 111 mm
• Infrared Illuminator: Yes
• IR Indicator: Yes (in FOV)
• Low Battery Indicator: Yes (in FOV)
• Environmental Rating: Waterproof up to 20 m
• Magnification: 1×
• Field of View: 40º
• Lens System: F / 1.2
• Diopter Adjustment: +2 to -6
• Range of Focus: 25 cm to infinity
• Power Supply: 1 x CR123
• Standards: MIL-STD-810G
