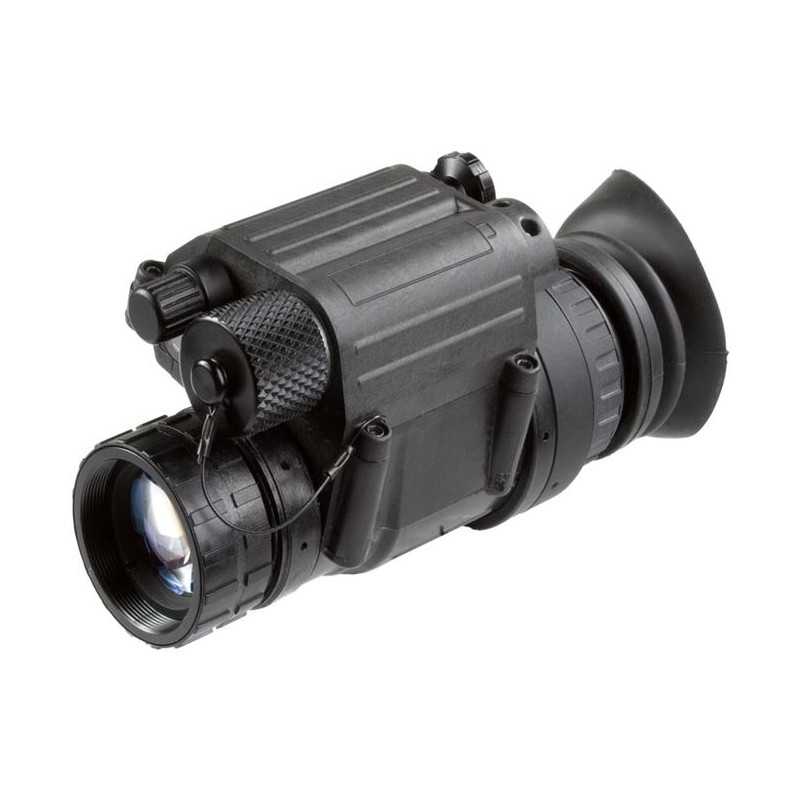

AGM PVS-14 NL2 Night Vision Monocular

The AGM PVS-14 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device adjusted by AGM professionals for consumer electronics market and everyday use for your most daring outdoor plans. This monocular is used globally in some of the most challenging environments. Leading speleologists are using them as reliable tool for their underground trips. Nature enthusiasts are having a blast with them in the toughest jungle conditions in their search for rare species. The AGM PVS-14 can be used as a handheld device, or mounted on the included head harness in other words putting your tent or gathering the wood for the fire, night fishing or simply admiring the stars is getting more comfortable than it used to be.

The PVS-14 monocular is a full-featured unit. Weighing less than 12.4 ounces/ 0.32 kilograms. The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The bright light shut-off feature ensures that inside electronics is protected. AGM’s PVS-14 includes an array of optional accessories to support your bravest plans and your adventurous way of thinking.

• Compact, rugged design
• Waterproof
• Head-mountable for hands-free usage
• Manual gain control
• Ergonomic, simple, easy-to-operate controls
• Built-in Infrared illuminator and flood lens
• Limited 3-year warranty

level 2i

maximum spots allowed in each zone*

spot size (in) zone 1 zone 2 zone 3

>.015 or larger 0 0 0

>.012 – .015 0 0 1

>.009 – .012 0 0 1

>.006 – .009 0 1 2

.003 – .006 1 2 3

note: not more than 4 spots allowed

SPECIFICATIONS

Image Intensifier Tube Gen 2+ "Level 2" International

Cosmetic level of IIT NL2i second-best quality

Resolution 45-57 lp/mm

Visible Spots very limited

NL2i features minimum cosmetics imperfections that allowed close to the edges and will not detract viewing.

Magnification 1x (3x and 5x optional)

Lens System 26 mm; F/1.2

FOV 40°

Focus Range 0.25 m to infinity

Diopter Adjustment -6 to +4 dpt

Led Indicators Low battery; IR On; Excessive light conditions

Manual Gain Control Yes

Bright Light Cut-Off Yes

Automatic Shut-Off System Yes

Infrared Illuminator Yes

Battery Type One AA 1.5V Alkaline battery

Battery Life (Operating) Up to 50 hours at 20°C

Operating Temperature Range -51° C to +49° C (-60° F to 120° F)

Storage Temperature Range -51° C to +85° C (-60° F to 185° F)

Weight 0.32 kg (0.7 lbs)

Dimensions 112 × 61 × 61 mm (4.4 × 2.4 × 2.4 in)

Package Includes Night Vision Monocular, Head Mount Assembly, Brow Pad, Eye Cup, Helmet/ Head Mount Adapter, System Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Diopter Lens Cap, Sacrificial Window, Demist Shield, Manual, Battery
