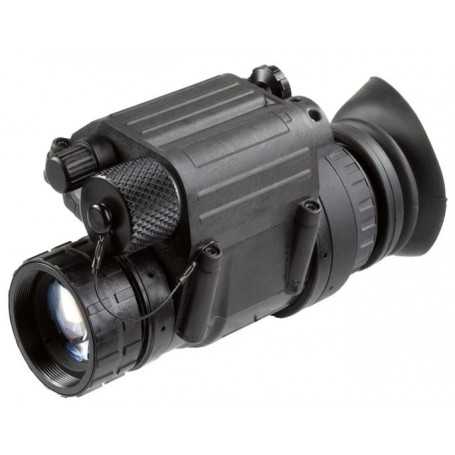

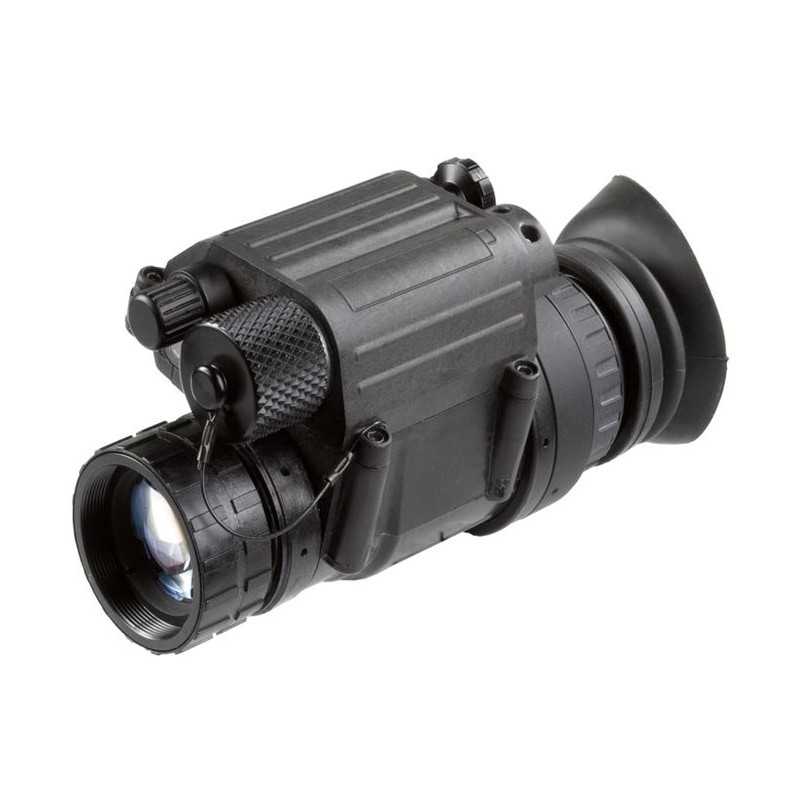

AGM PVS-14 NW2 Night Vision Monocular

The AGM PVS-14 Night Vision Monocular is built for rugged, lightweight, and multi-purpose use, making it an excellent companion for the most adventurous outdoor activities. Expertly adjusted by AGM professionals, this device is optimized for the consumer electronics market and everyday use. It has been tested in some of the most demanding environments worldwide. Leading speleologists rely on it for their underground expeditions, and nature enthusiasts use it to explore dense jungles in search of rare species.

The versatility of the AGM PVS-14 is one of its standout features. It can be used as a handheld device or mounted on the included head harness, making tasks like setting up camp, gathering firewood, night fishing, or even stargazing more comfortable than ever before. Despite weighing less than 12.4 ounces (350 grams), this monocular is packed with advanced features, including manual gain control, an automatic bright light shut-off to protect the internal electronics, and a built-in infrared (IR) illuminator for enhanced vision in the dark.

For those with an adventurous mindset, AGM offers a range of optional accessories, enabling customization to suit a variety of outdoor needs. The device’s design and capabilities ensure it’s always ready for your boldest expeditions.

Spot Quality Standards
The AGM PVS-14 adheres to high visual standards, limiting cosmetic imperfections.

• Zone 1: No spots allowed
• Zone 2: 1 spot allowed for sizes between 0.006 to 0.009 inches
• Zone 3: 1 spot for sizes between 0.009 to 0.012 inches, 2 spots for 0.006 to 0.009 inches
• No more than 4 spots are allowed in total

Highlighted Features

• Compact and rugged design
• Waterproof for all-weather use
• Head-mountable for hands-free operation
• Manual gain control
• Ergonomic and easy-to-use controls
• Built-in infrared illuminator with flood lens
• Backed by a 3-year warranty

What’s Included in the Package

• Packing Box
• Soft Carrying Case
• Head Mount Assembly
• Brow Pad
• Helmet/Head Mount Adapter
• Sacrificial Window
• Demist Shield
• Battery
• Lens Tissue
• User Manual

Technical Specifications

• Image Intensifier Tube: Gen 2+ "White Phosphor Level 2" International
• Cosmetic Level of IIT: NW2 (very limited)
• Resolution: 60-64 lp/mm
• Visible Spots: Very limited; NW2 grade features minimal cosmetic imperfections, mainly at the edges, that do not affect viewing quality
• Magnification: 1x (3x and 5x optional)
• Lens System: 27mm; F/1.2
• Field of View (FOV): 40°
• Focus Range: 0.25 m to infinity
• Diopter Adjustment: -6 to +2 dpt
• LED Indicators: Low battery, IR on, excessive light conditions
• Manual Gain Control: Yes
• Bright Light Cut-Off: Yes
• Automatic Shut-Off System: Yes
• Infrared Illuminator: Yes
• Battery Type: One AA 1.5V Alkaline battery
• Battery Life: Up to 40 hours at 20°C
• Operating Temperature Range: -51°C to +49°C (-60°F to 120°F)
• Storage Temperature Range: -51°C to +85°C (-60°F to 185°F)
• Weight: 0.35 kg (12.4 oz)
• Dimensions: 114 × 63 × 69 mm (4.5 × 2.5 × 2.7 in)
