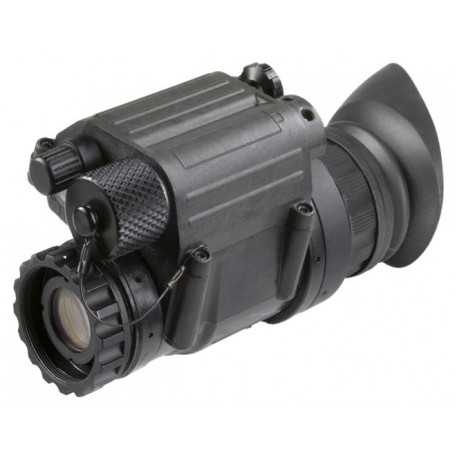

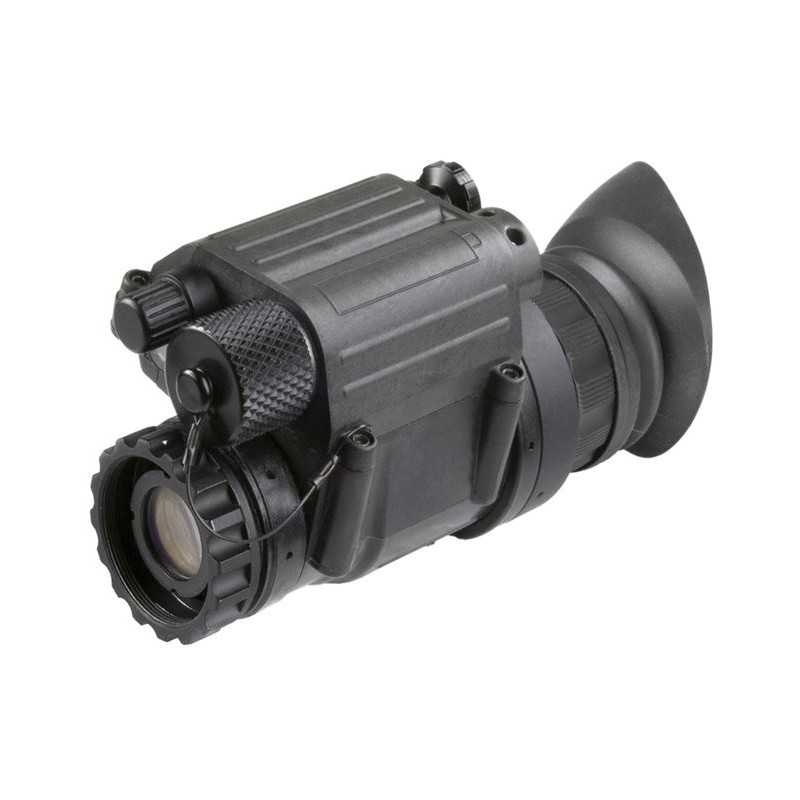

AGM PVS14-51 NL1 night vision monocular

The AGM PVS14-51 Night Vision Monocular is designed for ruggedness and versatility, making it a lightweight solution for a wide range of uses in some of the world’s most demanding environments. It can be operated as a handheld device or mounted on the included head harness for hands-free convenience.

One of its key features is the extended 51° field of view, allowing the user to cover a large visual range without the need to reposition the device. Weighing less than 10.6 ounces (300 grams), the PVS14-51 still manages to offer a full range of features, including manual gain control, automatic bright light shut-off, and a built-in infrared (IR) illuminator. The bright light shut-off function protects the high-quality photocathode tube, ensuring long-term durability. With a range of optional accessories, the PVS14-51 can be customized to meet the needs of nearly any operation.

Spot Quality Standards
Visual clarity is maintained by adhering to stringent cosmetic standards, limiting imperfections in the field of view.

• Zone 1: No spots allowed
• Zone 2: 1 spot allowed for sizes between 0.006 and 0.009 inches
• Zone 3: 1 spot for sizes between 0.009 and 0.012 inches, and 2 spots for 0.006 to 0.009 inches
• A total of no more than 4 spots allowed

Notable Features

• Wide 51° field of view
• Compact and rugged design for durability
• Waterproof for use in harsh conditions
• Can be head-mounted for hands-free use
• Simple, ergonomic controls for ease of operation
• Built-in infrared illuminator with flood lens
• 3-year warranty for added peace of mind

Package Includes
Head Mount Assembly, Brow Pad, Head Mount Adapter, Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Tissue, Sacrificial Window, Demist Shield, User Manual, and Battery.

Technical Specifications

• Image Intensifier Tube: Gen 2+ "Level 1" (green phosphor tube)
• Cosmetic Level of IIT: NL1 (best quality)
• Resolution: 60-64 lp/mm
• Visible Spots: Clear field of view
• NL1 Grade: Manually selected tubes with a clear, high-quality image, approaching Gen 3 performance
• Magnification: 1x
• Lens System: 19 mm; F/1.26
• Field of View (FOV): 51°
• Focus Range: 0.25 m to infinity
• Diopter Adjustment: -6 to +2 diopters
• LED Indicators: Low battery, IR on, excessive light conditions
• Manual Gain Control: Yes
• Bright Light Cut-Off: Yes
• Infrared Illuminator: Yes
• Battery Type: One AA 1.5V Alkaline battery
• Battery Life: Up to 50 hours at 20°C
• Operating Temperature Range: -51°C to +49°C (-60°F to 120°F)
• Storage Temperature Range: -51°C to +85°C (-60°F to 185°F)
• Weight: 300 g (10.6 oz)
• Dimensions (without lens cap and eyecup): 102 × 63 × 69 mm (4.0 × 2.5 × 2.7 in)
