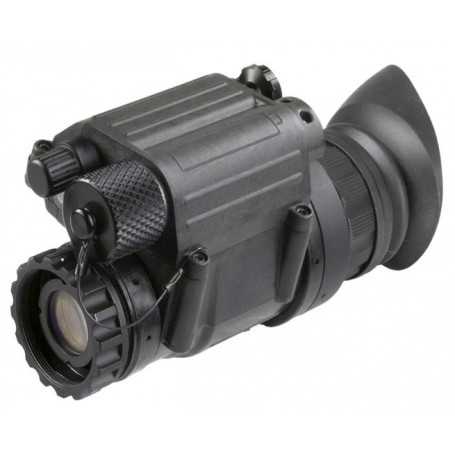

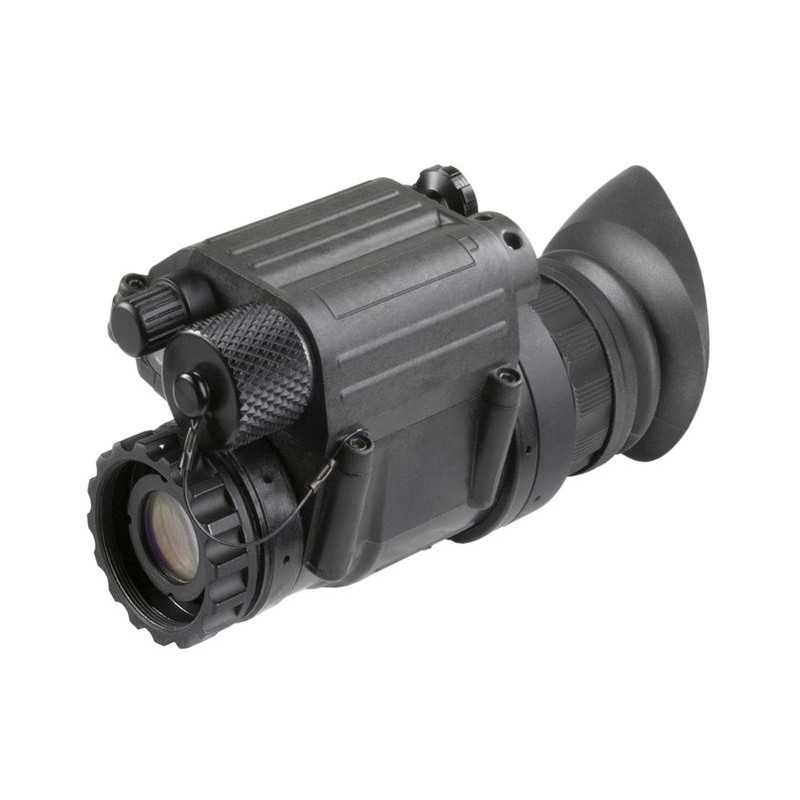

AGM PVS14-51 NW2 night vision monocular

The AGM PVS14-51 Night Vision Monocular is a rugged, lightweight, multi-purpose night vision device that has repeatedly proven itself in combat. This monocular is used globally in some of the most challenging environments. The PVS-14 can be used as a hand-held device, or mounted on the included head harness. With the proper accessories, it can also be mounted to combat helmets or weapons, providing night vision capabilities to daytime optical sights. The PVS14-51 monocular conforms to 810G Military standards, and is of the highest quality form and function.

The PVS14-51 has an extended field of view. Its 51° FOV overs a large visual range, without requiring the operator to shift the position of the device. The PVS14-51 monocular is a full-featured unit, weighing less than 10.6 ounces/300 grams. The unit includes manual gain control, an automatic bright light shut-off feature, and a built-in Infrared (IR) illuminator. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. AGM’s PVS14-51 includes an array of optional accessories to support virtually any operation.

• Wide 51° field of view
• Compact, rugged design
• Waterproof
• Head or helmet-mountable for hands-free usage
• Ergonomic, simple, easy-to-operate controls
• Built-in Infrared illuminator and flood lens
• Limited 3-Year warranty

level 2i

maximum spots allowed in each zone*

spot size (in) zone 1 zone 2 zone 3

>.015 or larger 0 0 0

>.012 – .015 0 0 1

>.009 – .012 0 0 1

>.006 – .009 0 1 2

.003 – .006 1 2 3

note: not more than 4 spots allowed

SPECIFICATIONS

Image Intensifier Tube Gen 2+ "White Phosphor Level 2"

Cosmetic level of IIT NW2i very limited

Resolution 45-57 lp/mm

Visible Spots very limited

NW2i features minimum cosmetics imperfections that allowed close to the edges and will not detract viewing.

Magnification 1x

Lens System 19 mm; F/1.26

FOV 51°

Focus Range 0.25 m to infinity

Diopter Adjustment -6 to +2 diopters

LED Indicators (in the FOV) - Low Battery - IR On - Excessive Light Conditions

Manual Gain Control Yes

Bright Light Cut-Off Yes

Infrared Illuminator Yes

Battery Type One AA 1.5V Alkaline battery

Battery Life (Operating) Up to 50 hours at 20°C

Operating Temperature Range -51° C to +49° C (-60° F to 120° F)

Storage Temperature Range -51° C to +85° C (-60° F to 185° F)

Weight 300 g (10.6 oz)

Dimensions (w/o lens cap and eyecup) 102 × 63 × 69 mm (4.0 × 2.5 × 2.7 in)

Package Includes Night Vision Monocular, Head Mount Assembly, Brow Pad, Eye Cup, Helmet/ Head Mount Adapter, System Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Tissue, Sacrificial Window, Demist Shield, Manual, Battery
