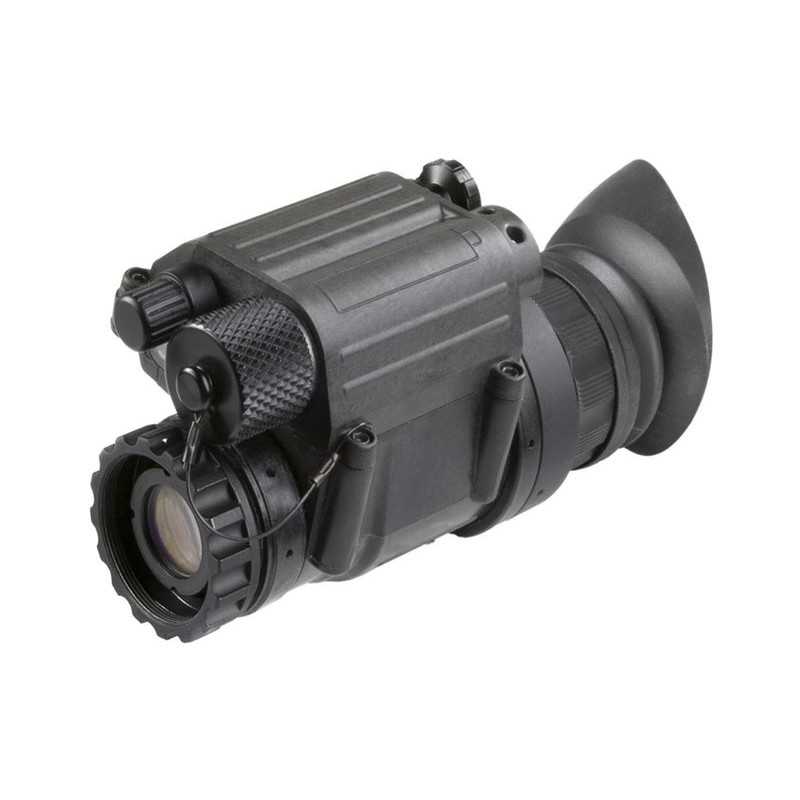

AGM PVS14-51 NW1 Night Vision Monocular

The AGM PVS14-51 Night Vision Monocular is designed to be rugged, lightweight, and versatile, making it suitable for a wide range of demanding environments worldwide. Whether used as a handheld device or mounted on the included head harness, the PVS14-51 provides excellent functionality. One of its standout features is the extended 51° field of view, allowing for a broader visual range without the need to constantly shift the device’s position. Despite its advanced features, the monocular weighs less than 10.6 ounces (300 grams), making it highly portable.

The PVS14-51 is equipped with manual gain control, an automatic bright light shut-off function, and a built-in infrared (IR) illuminator. The bright light shut-off feature ensures that the photocathode tube remains protected, contributing to the device’s long-term durability. In addition, AGM offers a wide selection of optional accessories to enhance its versatility for virtually any operation.

Spot Quality Standards
Strict visual standards are maintained, limiting cosmetic imperfections in the field of view.

• Zone 1: No spots allowed
• Zone 2: 1 spot allowed for sizes between 0.006 and 0.009 inches
• Zone 3: 1 spot for sizes between 0.009 and 0.012 inches, 2 spots for 0.006 to 0.009 inches
• A total of no more than 4 spots allowed

Key Features

• Wide 51° field of view
• Compact and rugged design
• Waterproof for all-weather use
• Head-mountable for hands-free operation
• Ergonomic, easy-to-use controls
• Built-in infrared illuminator with flood lens
• Supported by a 3-year warranty

What’s Included

• Head Mount Assembly
• Brow Pad
• Head Mount Adapter
• Soft Carrying Case
• Daylight Filter
• Shoulder Strap
• Lens Tissue
• Sacrificial Window
• Demist Shield
• User Manual
• Battery

Technical Specifications

• Image Intensifier Tube: Gen 2+ "White Phosphor Level 1"
• Cosmetic Level of IIT: NW1 (the highest quality)
• Resolution: 60-64 lp/mm
• Visible Spots: Clear field of view
• NW1 Grade: Manually selected tubes with a clear, advanced image that approximates Gen 3 quality
• Magnification: 1x
• Lens System: 19 mm; F/1.26
• Field of View (FOV): 51°
• Focus Range: 0.25 m to infinity
• Diopter Adjustment: -6 to +2 diopters
• LED Indicators in FOV: Low battery, IR on, excessive light conditions
• Manual Gain Control: Yes
• Bright Light Cut-Off: Yes
• Infrared Illuminator: Yes
• Battery Type: One AA 1.5V Alkaline battery
• Battery Life: Up to 50 hours at 20°C
• Operating Temperature Range: -51°C to +49°C (-60°F to 120°F)
• Storage Temperature Range: -51°C to +85°C (-60°F to 185°F)
• Weight: 300 g (10.6 oz)
• Dimensions (without lens cap and eyecup): 102 × 63 × 69 mm (4.0 × 2.5 × 2.7 in)
