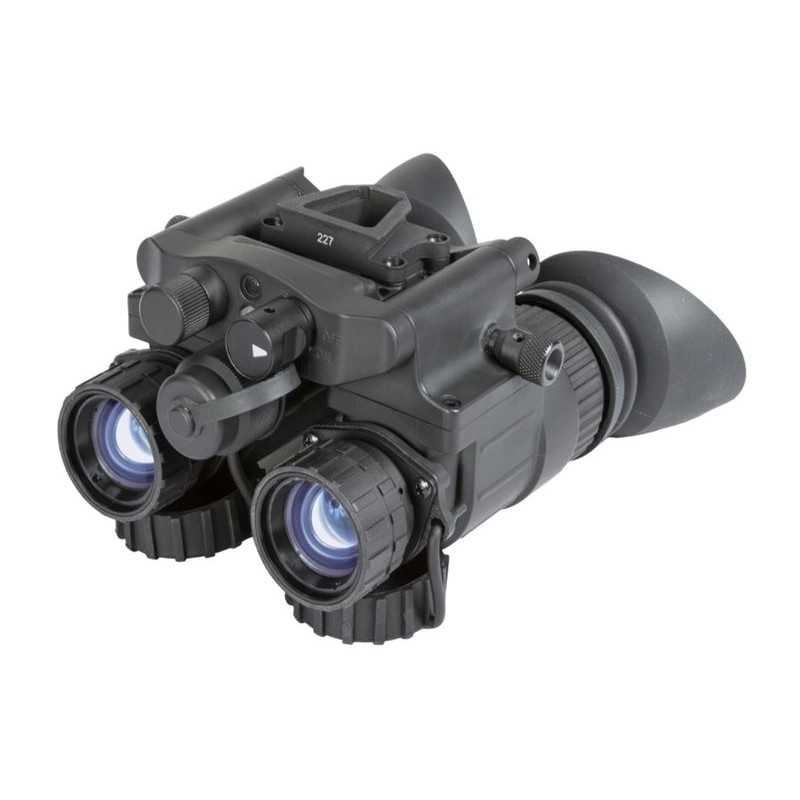

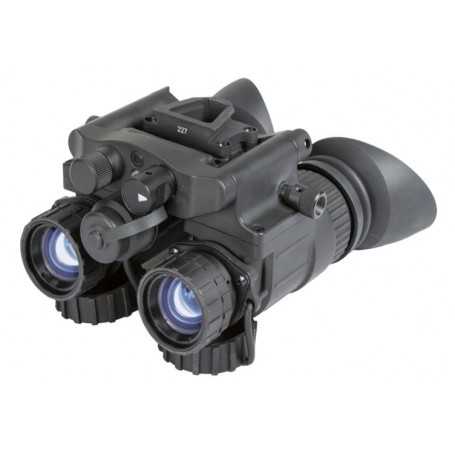

AGM NVG-40 NW2 Night Vision Goggle

The AGM NVG-40 is a dual-channel night vision system. With a 40° field of view, it provides a large visual field without needing to move the binoculars. The AGM NVG-40 features best on the consumer market multi-coated optics and is built to last with a lightweight and robust housing. The device is built around Gen 2 commercial grade image intensifier tubes so the very attractive price/performance ratio is here. The bright light cut-off feature ensures that your high-quality electronics is protected. The NVG- 40 is also equipped with Manual Gain Control, which adjusts the image brightness, so you can personalize your night vision experience during the most daring adventures. Operating from a single AA alkaline battery or CR123A battery, the AGM NVG-40 can run up to 20 hours. Also equipped with an integral infrared illuminator for reading in the dark.

For hands-free use of the NVG, it can be installed to many various mounts, such as the AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, or to the mounts with mini-rail interface.

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.

Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.

NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.

Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount

• Redundant dual-tube design
• True stereoscopic vision
• Lightweight & compact
• Head mountable for hands-free operation
• Bright light cut-off
• Manual gain control
• Ergonomic, simple, easy to operate controls
• Built-in Infrared illuminator and flood lens
• Utilizes single CR123A lithium or AA battery
• Limited 3-year warranty

level 2i

maximum spots allowed in each zone*

spot size (in) zone 1 zone 2 zone 3

>.015 or larger 0 0 0

>.012 – .015 0 0 1

>.009 – .012 0 0 1

>.006 – .009 0 1 2

.003 – .006 1 2 3

note: not more than 4 spots allowed

SPECIFICATIONS

Image Intensifier Tube Gen 2+ "White Phosphor Level 2" International

Cosmetic level of IIT NW2i second-best quality

Resolution 45-57 lp/mm

Visible Spots very limited

NW2i NL2 features minimum cosmetics imperfections that allowed close to the edges and will not detract viewing.

Magnification 1x

Lens System 27 mm, F/1.3

FOV 40°

Focus Range 0.25 m to Infinity

Diopter Adjustment -6 to +2 dpt

Eye Relief 25 mm

Interpupillary Distance 56 to 72 mm

LED Indicators (in the FOV) Low Battery IR On Excessive Light Conditions

Manual Gain Control Yes

Bright Light Cut-Off Yes

Automatic Shut-Off System Yes

Infrared Illuminator Yes

Battery Type One CR123A (3V) or AA (1.5 V)

Battery Life (Operating) Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)

Operating Temperature Range -40°C to +50°C (-40°F to +122°F)

Storage Temperature Range -50°C to +70°C (-58°F to +158°F)

Weight 645 g (1.42 lbs)

Overall Dimensions 115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in)

Package Inludes Night Vision Goggles, Soft Carrying Case, Lens Cloth, Battery Adapter, User Manual
