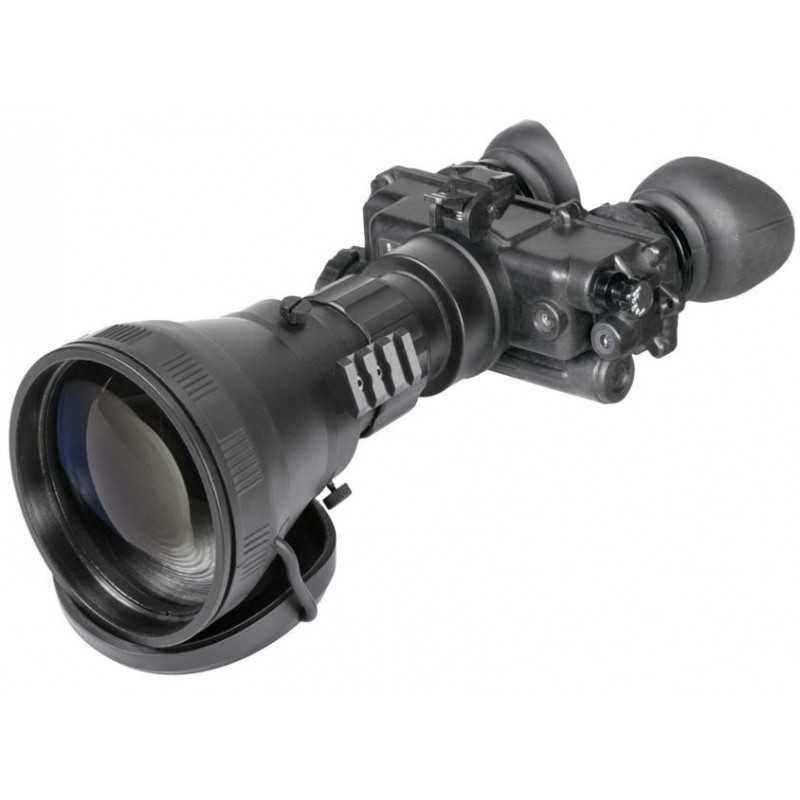

AGM Foxbat-LE6 NL2 Night Vision Binocular

The AGM FoxBat-LE night vision bi-ocular is the perfect tool for mid-range and long-range observation. The FoxBat-LE is compatible with a range of professional highquality objective lenses to match all users’ requirements currently available in three configurations - 5x, 8x, and 10x magnification.

The FoxBat-LE is a professional night vision device favored by law enforcement and military units due to its unmatched performance, even in extreme temperatures and challenging weather conditions such as rain or excessive humidity. The FoxBat-LE is also equipped with Automatic Brightness Control (ABC), which adjusts the image brightness automatically, providing the highest possible image quality even in changing light conditions. The device can be outfitted with either a Gen 2+ or Gen 3 high-performance image intensifier (II) tube, which can be repaired or upgraded easily. The bright light shut-off feature ensures that the high-quality photocathode tube is protected. FoxBat-LE is supplied with two AA batteries and its operating time is up to 40 hours of continuous use.

• 5x, 8x or 10x magnification
• Lightweight rugged design
• Waterproof
• Auto brightness control
• Ergonomic, simple, easy to operate controls
• Limited 3-Year Warranty

level 2i

maximum spots allowed in each zone*

spot size (in) zone 1 zone 2 zone 3

>.015 or larger 0 0 0

>.012 – .015 0 0 1

>.009 – .012 0 0 1

>.006 – .009 0 1 2

.003 – .006 1 2 3

note: not more than 4 spots allowed

SPECIFICATIONS

Image Intensifier Tube Gen 2+ "Level 2" International (green phosphor tube (P43)

Cosmetic level of IIT NL2i – second-best quality

Resolution 45-57 lp/mm

Visible Spots very limited

NL2i features minimum cosmetics imperfections that allowed close to the edges and will not detract viewing.

Magnification 5.6x

Lens System 145 mm; F/1.8

FOV 7°

Focus Range 25m to Infinity

Diopter Adjustment -6 to +2 dpt

LED Indicators Low battery; IR On; Excessive light conditions

Automatic Brightness Control Yes

Bright Light Cut-Off Yes

Automatic Shut-Off System Yes

Infrared Illuminator Detachable long-range IR illuminator

Battery Type 2 AA Alkaline or 1 Lithium (BA-5567/U)

Battery Life (Operating) Up to 40 hours at 20°C

Operating Temperature Range -40°C to +50°C (-40°F to +122°F)

Storage Temperature Range -50°C to +50°C (-58°F to +122°F)

Weight 1.02 kg (2.25 lb)

Overall Dimensions 282 × 152 × 96 mm (11.1 × 6.0 × 3.8 in)

Package Inludes Night Vision Binocular, Sioux850 Detachable Long-Range IR Illuminator Lens Cloth, Soft Carrying Case
