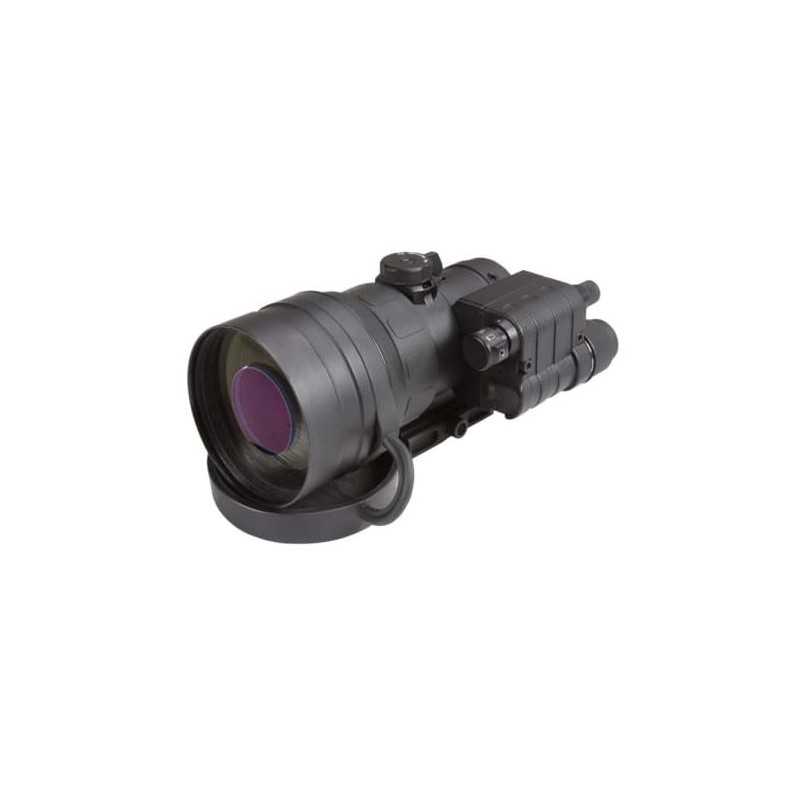

AGM Comanche-22 NL1 - Night Vision Clip-On System

AGM Comanche 22 Night Vision Clip-On (NVCO) system uses the latest advances in night vision clip-on technology. Designed for mid-range nighttime shooting, the Comanche 22 delivers exceptional clarity, reliability, and versatility providing the most significant functionality and features at the lowest possible price.

The Comanche 22 is mounted to a standard Weaver or Picatinny rail in front of an existing day scope; transforming it into a Night Vision Device with no re-zeroing required. This NVCO can be used with day scopes of up to 7x magnification for optimal performance and is equipped with a quick release mount and wireless remote control. It provides unmatched target acquisition and enhanced aiming capabilities, making it extremely practical and effective during the most challenging missions.

• Simple, quick conversion of daytime scopes to NVDs
• Manual gain control
• Mounts in front of any daytime scope, no re-zeroing required
• Powered by a single Alkaline 1.5 V AA or 3 V CR123A Lithium battery
• Bright-light cut-off system
• Quick-release mount
• Limited two-year warranty

In The Box

Battery adapter CR123A 3V / AA 1.5V

Soft Carrying Case

Lens Tissue

One Lithium Battery CR123A

Operators Manual

Packing Box

AGM Sioux850 Long Range Infrared Illuminator with Mount, Dovetail to Weaver Transfer Piece, Rechargeable Battery, and Charger

General Specifications

Image Intensifier Tube Gen 2+ "Level 1"

Magnification Unity 1x

Lens System 80 mm; F/1.44

FOV 12°

Focus Range 10m to infinity

Exit Pupil Diameter 22 mm

LED Indicators Low battery; Excessive light conditions

Manual Gain Control Yes

Bright Light Cut-Off Yes

Infrared Illuminator Detachable; Long-range

Battery Type One CR123A (3V) or AA (1.5 V)

Battery Life (Operating) Up to 60 hours at 20°C

Operating Temperature Range -40°C to +50°C (-40°F to +122°F)

Storage Temperature Range -50°C to +50°C (-58°F to +122°F)

Weight 0.75 kg (1.65 lbs)

Overall Dimensions 168×85×80 mm ( 6.6×3.3×3.1 in)
