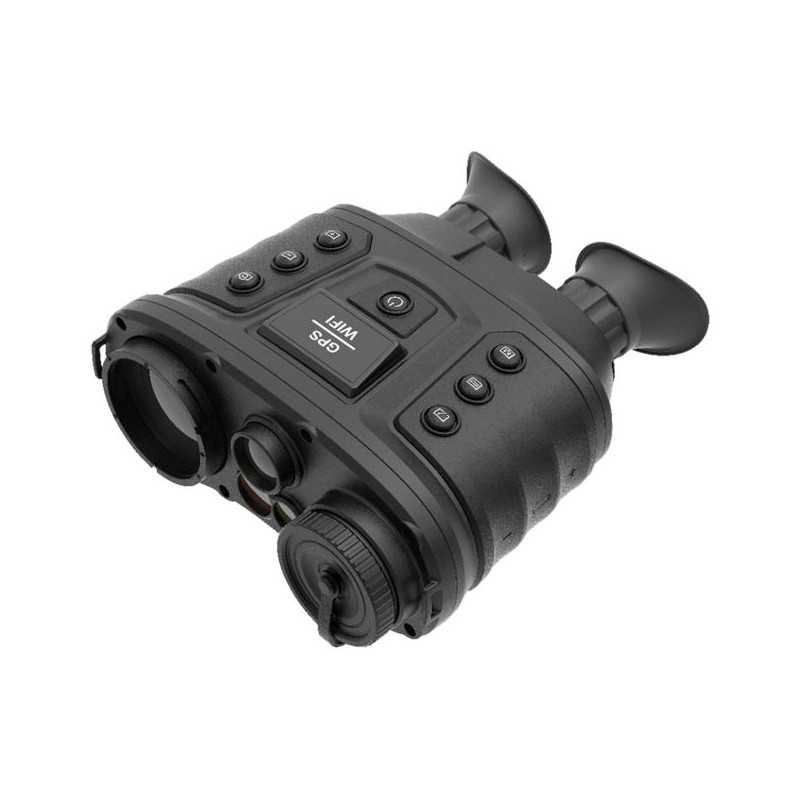

AGM Explorator FSB-PRO 640 - thermal binoculars

AGM Explorator FSB-PRO Handheld Thermal & Optical Bi-spectrum Binocular is equipped with ultra-low light optical detector, 640×512 thermal detector, 1920×1080 optical module, 1024×768 OLED display and eyepiece with large field of view. The device can quickly discover and locate hiding objects even under extreme environment, such as smoke, fog, rain and snow. It can be widely applied to scenarios like patrol, law enforcement, search and rescue, drug enforcement, anti-smuggling and suspect capture. Due to its waterproof capability the device performs well even in severe weather conditions and challenging environment. The Explorator’s user-friendly interface, comfortable and ergonomic buttons makes adoption and application incredibly simple. The binocular offers many different variants of image view: thermal, visible, fusion, etc. that can be easily adapted depending on different environmental conditions. The Explorator FSB-PRO is equipped with all key features for target detection and positioning, including a laser rangefinder, GPS module, electronic compass and inclinometer. This high-tech bi-ocular can take four 18650 rechargeable Lithium batteries for more than 7 hours operating time. Integrated proximity sensor saves energy. When sensor detects eyes, the OLED screen turns on, otherwise the OLED screen is off. In addition, an external power supply provides an increase in operating time.

• Bi-spectrum image fusion and object highlight (detail enhancement and target recognition)
• Selection of thermal view channel, visible light channel, or both them combined
• Thermal resolution: 640×512
• optical resolution: 1920×1080
• NETD less than 40 mK (25°C, F#=1.0)
• Digital Detail Enhancement (DDE)
• Dynamic Noise Reduction (3D DNR)
• Adaptive Automatic Gain Control (AGC)
• Ultra-low illumination (optical channel), B/W: 0.001 lux @ (F1.0 , AGC On)
• Video recording, replay, picture snapshot and search (capable to review the event on device)
• Wi-Fi hotspot
• Eye safety laser rangefinder (up to 3 km distance detection with measuring accuracy 0.75 m)
• GPS module
• Digital magnetic compass
• Inclination sensor
• Proximity sensor to save power
• More than 7 hours continuous running
• Waterproof, IP67
• Limited 3-Year Warranty

PACKAGE INCLUDES

Battery charger | Battery charger power cable | Lens Tissue | Two Wrist Straps | User manual | Aviation Plug cable | Eight Batteries

SPECIFICATIONS

THERMAL MODULE

Image Sensor Vanadium Oxide Uncooled Focal Plane Arrays

Resolution 640×512 (50 Hz)

Pixel Pitch 17 μm

Response Waveband 8 μm to 14 μm

NETD Less than 40 mK (25°C, F#=1.0)

Lens (Focal Length) 50 mm, Manual focus

MRAD (IFOV) 0.34

Field of View 12.42° × 9.95°

Aperture F 1.0

Digital Zoom 4×

Detection Range 1,471 m (Human) 4,510 m (Vehicle) *

Recognition Range 368 m (Human) 1,127 m (Vehicle) *

Identification Range 184 m (Human) 564 m (Vehicle) *

OPTICAL MODULE

Max. Image Resolution 1920×1080

Image Sensor 1/1.8” Progressive Scan CMOS

Min. Illumination B/W : 0.001 lux @ (F1.0 , AGC On

Lens (Focal Length) 22 mm

Optical Magnification 2.34×

IMAGE DISPLAY

Monitor 0.39-inch, OLED, 1024×768

Thermal/Optical Mode Thermal view, B/W optical view, image fusion view are selectable

Image Fusion Color fusion, B/W fusion

Palettes Black hot, White hot

SMART

Hot Track Yes

Object Highlight Yes

Automatic Backlight The OLED backlight automatically turns off if no human eyes are detected.

Image Enhancement Digital Detail Enhancement (DDE) Dynamic Noise Reduction (3D DNR) Adaptive Automatic Gain Control (AGC)

SYSTEM

Storage Built-in memory module (32 GB)

Record Video On-board video recording

Snapshot On-board image capturing

Video Replay Yes

Picture Search Yes

Wi-Fi Yes

GPS Yes

Laser Rangefinder Yes

Measuring Distance of Laser Rangefinder Max. 3 km

Laser Rangefinder Accuracy 0.75 m

Laser Wavelength 1550 nm (Class 1)

Head Accuracy 0.2° (RMS)

POWER SUPPLY

Battery Type Four 18650 batteries

Battery Operating Time More than 7 hours

Battery Capacity Display Yes

External Power Supply DC 5V/2A, Max.10W

GENERAL

Menu Language English

Working Temperature -30°C to 55°C (-22°F to 131°F)

Storage Temperature (w/o batteries) -40°C to 70°C (-40°F to 158°F)

Protection Level IP67

Mounting UNC 1/4”-20

Cable Output Aviation plug: connecting to BNC, DB9, and USB

Accessories (Supplied) Battery charger, battery charger power cable, wiping cloth, two wrist straps, User manual, aviation plug cable, eight batteries

Dimension (L×W×H) 187.8 × 219.8 × 87.4 mm (7.4 × 8.65 × 3.4 in)

Weight Approx. 1.5 kg (3.3 lb)
