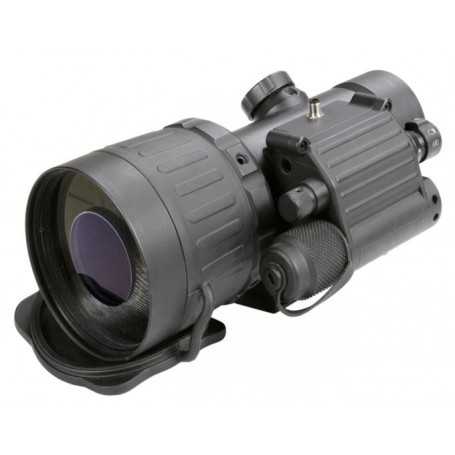

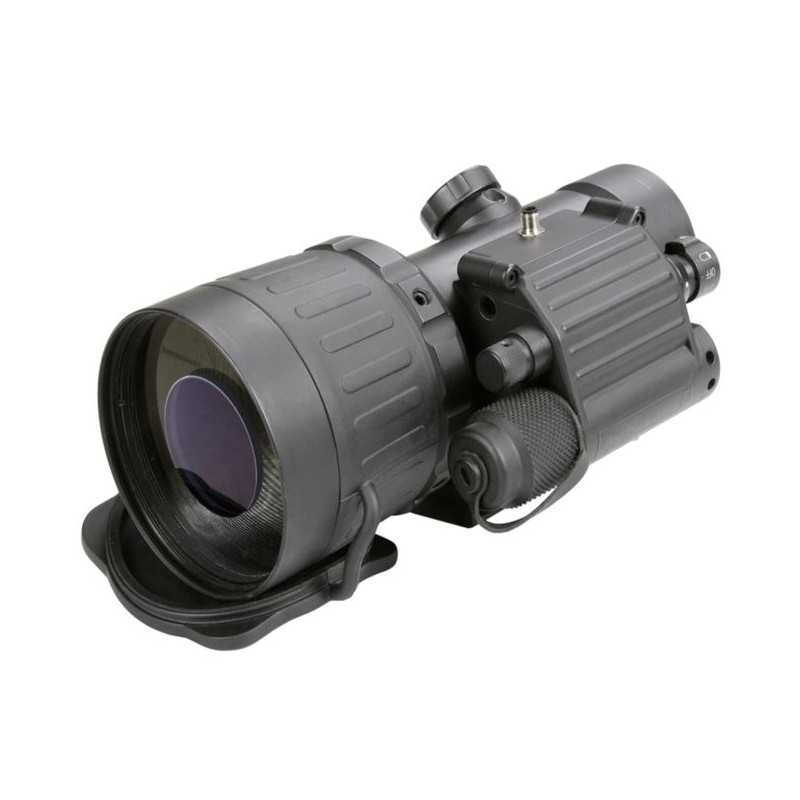

AGM Comanche-40 NL1 - Night Vision Clip-On System

The Comanche 40 Night Vision Clip-On (NVCO) system uses the latest advances in night vision clip-on technology. Designed for mid-range nighttime shooting, the Comanche 40 delivers exceptional clarity, reliability, and versatility providing the most significant functionality and features at the lowest possible price.

This NVCO can be used with day scopes of up to 12x magnification for optimal performance and is equipped with a quick release mount and wireless remote control. The Comanche 40 is mounted to a standard Weaver or Picatinny rail in front of an existing day scope; transforming it into a Night Vision Device with no re-zeroing required. It provides unmatched target acquisition and enhanced aiming capabilities, making it extremely practical and effective during the most challenging missions.

• Simple, quick conversion of daytime scopes to NVDs
• Mounts in front of any daytime scope, no rezeroing required
• Equipped with a wireless remote control
• Powered by a single Alkaline 1.5 V AA or 3 V CR123A Lithium battery
• Bright-light cut-off system
• Quick-release mount
• Limited 3-Year Warranty

level 1

maximum spots allowed in each zone*

spot size (in) zone 1 zone 2 zone 3

>.015 or larger 0 0 0

>.012 – .015 0 0 0

>.009 – .012 0 0 0

>.006 – .009 0 1 2

.003 – .006 1 2 3

note: not more than 4 spots allowed

SPECIFICATIONS

Image Intensifier Tube Gen 2+ "Level 1" International

Cosmetic level of IIT NL1i – the best quality

Resolution 51-64 lp/mm

Visible Spots Clear FOV

NL1i manually selected tubes, featured advanced clear-cut image. Image’s quality approximates to Gen 3 level.

Magnification 1x

Lens System 80 mm; F/1.44

FOV 12°

Focus Range 10 m to Infinity

Exit Pupil 40 mm

Controls Direct

Led Indicators Low battery; Excessive light conditions

Manual Gain Control Yes

Bright Light Cut-Off Yes

Automatic Shut-Off System Yes

Infrared Illuminator Detachable Long Range IR Illuminator

Battery Type One CR123A (3V) or AA (1.5 V)

Battery Life (Operating) Up to 60 hours (3 V) at 20°C; up to 30 hours (1. 5 V) at 20°C

Operating Temperature Range -40°C to +50°C (-40°F to +122°F)

Storage Temperature Range -50°C to +50°C (-58°F to +122°F)

Weight 1.04 kg (2.3 lbs)

Overall Dimensions 189 × 104 × 90 mm (7.4 × 4.1 × 3.5 in)

Package Includes Night Vision Clip-On, Remote Control, Lens Cloth, Light Suppressor for Day Scope, Light- Suppressor, Hood, Quick Release Mount, Soft Carrying Case
