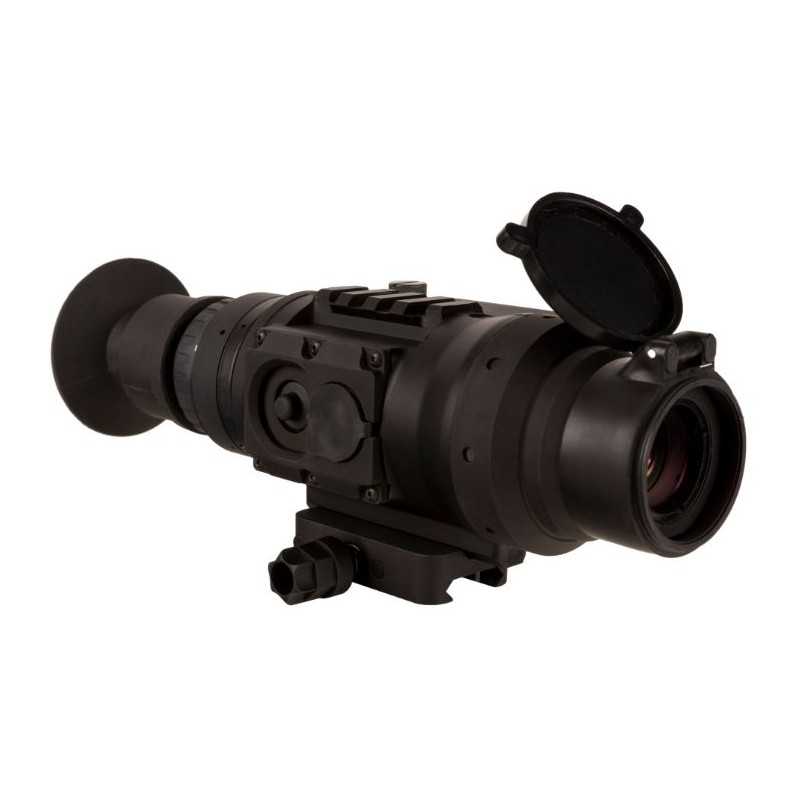

Trijicon REAP-IR 24 mm Thermal Riflescope
7209 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The REAP-IR® mini thermal riflescope is a small, rugged, and powerful thermal riflescope that lets you engage targets in any light. The heart of the system is a state-of-the art 640x480, 12 micron thermal image sensor that provides superior image quality in any lighting condition. Redesigned electronic hardware and a new digital thumbstick improve system response and enable the use of external USB power sources and digital video recorders. It's also built to last - in the USA.
THUMBSTICK SYSTEM CONTROLLER
Fully ruggedized, weatherproof, multi-directional thumbstick control with improved design for faster system response
EXPANDED FUNCTIONALITY
New USB-C connector allows the use of external battery packs and download of analog and digital video with available adapter with compatible DVRs
TOP-LOADING BATTERY COMPARTMENT
Ruggedized, vertical design creates a slimmer look and is engineered for increased durability and solid battery connection
MOUNTING VERSATILITY
New quick release mount featuring Trijicon® Q-LOC™ Technology provides multiple mounting locations with the ability to affix the scope rapidly and reliably in the dark
IMPROVED RETICLE OPTIONS
User-selectable reticle choices include the classic crosshair, and new MRAD, MOA, .223 REM, .308 WIN, and 300BLK BDC
640x480 THERMAL SENSOR
Offers clear, crisp imagery through smoke, dust and complete darkness.
12 MICRON TECHNOLOGY
Smaller image sensors allow for reduced size and weight and increased durability.
MADE IN THE USA
Built for shooters by shooters right here in America.
INCLUDES
Mini Picatinny Rail Mount
USB-C to USB-C Cable
Inline analog video adapter
User Manual
Quick Reference Guide
2 CR123 Batteries
Trijicon Logo Sticker
Shuttered Eye Guard
Warranty Card
LENSPEN
Hard Case
SPECS
Length x Width x Height 8.4 in x 3.1 in x 2.9 in (213.36mm x 78.74mm x 73.66mm)
Weight 24.7 oz. (700.23g)
Magnification 1.2x
Objective Size 24mm
Power Source CR 123 or External USB
Battery Life 2 hours per CR 123
Eye Relief 1.063 in. (27mm)
Field of View (degrees) 18 degrees Horizontal°
Mount QLOC
Diopter Range -6 / +2
Housing Material Aluminum
Submersion Depth 3.28 ft. (1m)
Operating Temperature -25.6F to 122F (-32c to 50c)
Sensor Type VOx
Digital Zoom 8X
Sensor Resolution 640x480
Sensor Pixel Pitch 12 µm
Focal Length 24 mm
Frame Rate 30 Hz / 60 Hz
Video Output RS-170
Data sheet
