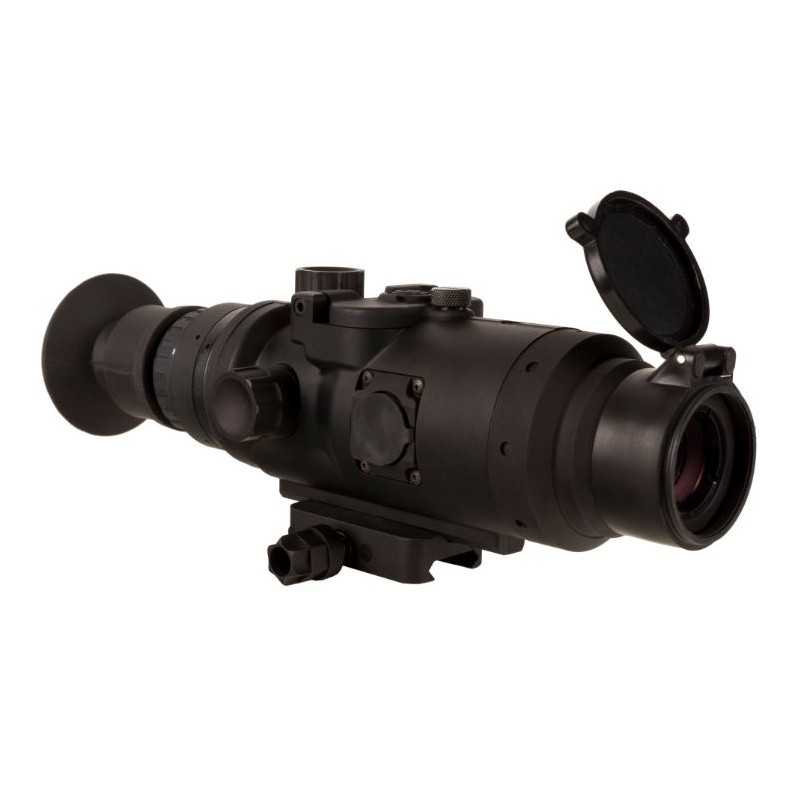

Trijicon IR-HUNTER 24 mm Thermal Riflescope
6694 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The IR-HUNTER® mini thermal riflescope is a rugged and powerful thermal riflescope that is also easy to use. The heart of the system is a state-of-the art 640x480, 12 micron thermal image sensor that provides superior image quality in any lighting condition. Redesigned electronic hardware and a new digital turret controls improve system response and enable the use of external USB power sources and digital video recorders. It’s engineered to last and built in the USA.
INTUITIVE TURRET CONTROLS
Simple,improved rotary knobs for easy manipulation of menu options and faster system response.
EXPANDED FUNCTIONALITY
New USB-C connector allows the use of external battery packs, and download of analog and digital video with available adapter with compatible DVRs
TOP-LOADING BATTERY COMPARTMENT
Redesigned internal battery compartment for a slimmer look and increased durability
MOUNTING VERSATILITY
New quick release mount featuring Trijicon® Q-LOC™Technology provides multiple mounting locations with the ability to affix the scope rapidly and reliably in the dark
IMPROVED RETICLE OPTIONS
User-selectable reticle choices include the classic crosshair, and new MRAD, MOA, .223 REM, .308 WIN, and 300BLK BDC
640x480 THERMAL SENSOR
Offers clear, crisp, imagery through smoke, dust, and complete darkness.
12 MICRON TECHNOLOGY
Smaller image sensors allow for decreased size and weight and increased durability.
MADE IN THE USA
Engineered, designed and manufactured in the USA.
INCLUDES
Mini Picatinny Rail Mount
USB-C to USB-C Cable
Inline analog video adapter
User Manual
Quick Reference Guide
2 CR123 Batteries
Trijicon Logo Sticker
Shuttered Eye Guard
Warranty Card
LENSPEN
Hard Case
SPECS
Length x Width x Height 9.6 in x 3.0 in x 3.2 in (243.84mm x 76.2mm x 81.28mm)
Weight 28.4 oz. (805.13g)
Magnification 1.2x
Objective Size 24mm
Power Source CR 123 or External USB
Battery Life 2 hours per CR 123
Eye Relief 1.063 in. (27mm)
Field of View (degrees) 18 Horizontal°
Diopter Range -6 / +2
Housing Material Aluminum
Submersion Depth 3.28 ft. (1m)
Operating Temperature -25.6F to 122F (-32c to 50c)
Sensor Type VOx
Digital Zoom 8X
Sensor Resolution 640x480
Sensor Pixel Pitch 12 µm
Focal Length 24 mm
Frame Rate 30 Hz / 60 Hz
Video Output RS-170
