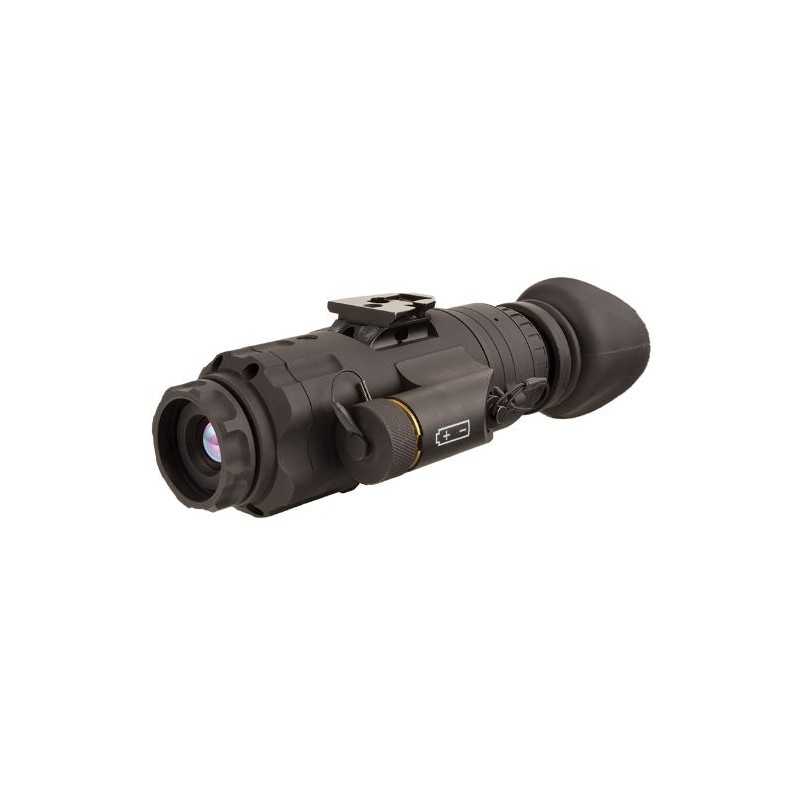

Trijicon IR-PATROL IRMO-300 - Rifle Mount Kit
7724 $ net price (non-EU countries)
Anatolii Livashevskyi
Product Manager
/
+48721808900
+48721808900
+48721808900
[email protected]
Description
The IR-PATROL has advanced ability to process images with brilliantly sharp detail, and a user-friendly, icon-based menu system for intuitive navigation. Whether your mission is searching for a suspect or securing your position, the Trijicon IR-PATROL® is the ideal multipurpose thermal imaging monocular. It's compact, lightweight, rugged and offers some of the most advanced performance options on the market. Choose from handheld, helmet-mounted or rifle-mounted IR‑PATROL systems.
VERSATILE BY DESIGN
Choose from handheld, helmet-mounted or rifle-mounted IR-PATROL® systems.
THUMBSTICK SYSTEM CONTROLLER
Our fully ruggedized, weatherproof, multi-directional thumbstick control comes standard. Unlike most conventional buttons, the IR-PATROL® controls are large and easy to find in complete darkness.
EDGE DETECT MODE
Puts out a fraction of the light of other modes to minimize night blindness from the screen
POLARITY CONTROL
The IR-PATROL® comes with an easy-to-control polarity mode that lets you switch between three levels of white hot and three levels of black hot.
OUTSTANDING IMAGE QUALITY
Powered by a state-of-the-art 640x480, 12 micron, 60 Hz thermal core.
INCLUDES
User Manual
Quick Reference Guide
1 CR123 Battery
Trijicon Logo Sticker
Protective Eye Cup
Flip Mount
Download Card & Cable
Warranty Card
LENSPEN
Hard Case
SPECS
Length x Width x Height 5.95 in x 2 in x 2.95 in (151.13mm x 50.8mm x 74.93mm)
Weight 16 oz. (453.59g)
Magnification 1x
Day Reticle Color Black / White Adaptive
Night Reticle Color Black / White Adaptive
Illumination Source LED
Power Source 1 CR123 Battery
Battery Life Aprox. 2 hours per battery
Eye Relief 1.06 in. (26.92mm)
Field of View (degrees) 22°
Mount Wilcox Shoe Interface, Flip Mount,
Diopter Range -6 / +2
Finish Matte Black
Operating Temperature -40F to +131F (-40c to 55c)
Sensor Type Uncooled Vox (Vanadium Oxide)
Digital Zoom 8X
Sensor Resolution 640x480
Sensor Pixel Pitch 12 µm
Focal Length 19mm
Frame Rate 30 Hz / 60 Hz
Video Output Analog RS-170 (with Optional Cable)
Data sheet
