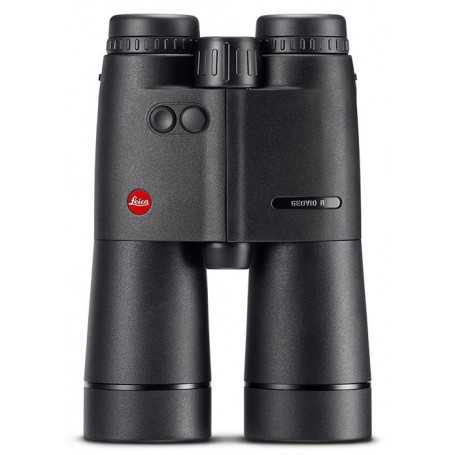

Leica Geovid R 15x56 New Generation Rangefinder Binoculars 40814

With the new generation of Geovid R rangefinder binoculars, Leica once again sets new standards. Completely redesigned and technically updated, the new Geovid R models are impressive in every detail. Leica remains true to its brand promise and its focus on the essentials – and continues to evolve as a pioneer with 30 years’ experience in rangefinding. You don’t want to choose between powerful binocular optics and a precise rangefinder? You don’t have to: Geovid R offers the best possible combination in one product, at an attractive price. The extremely compact, lightweight premium binoculars deliver a field of view that is outstanding in their class, as well as great image detail and fascinating color fidelity. With an improved measurement range of up to 1,800 meters/2.000 yards, you are perfectly equipped for almost any hunt. The ballistics function EHR, which outputs the equivalent horizontal distance for angle shots at up to 1,100 meters/1.200 yards, additionally facilitates an ethical shot. The newly developed Geovid R models focus fully on Leica’s core values: powerful premium optics, precise rangefinding, maximum optomechanical reliability, and easy, intuitive operation. Thanks to highly efficient manufacturing and a focus on the essentials, you no longer have to choose between conventional binoculars and a rangefinder.

• Best-in-class optical performance
• Absolutely precise laser rangefinding
• Improved measurement range: up to 2,000 yds (1,800 m)
• New, up-to-date, ergonomic design
• Particularly light, compact construction

Delivery scope:

Contoured neoprene carrying strap, front lens, cover, eyepiece caps, cordura case, battery

Leica Geovid R 15x56

Device type Rangefinder

Order no. 40814

Magnification 15x

Front lens diameter 56 mm

Exit pupil 3.7 mm

Twilight factor 28.2

Field of view at 1,000 yds/1,000 m 225 ft / 75 m

Field of view for spectacle wearers 194.4 ft / 64.8 m

Eye relief 15 mm

Objective angle of view 4.3°

Close distance approx. 19.4 ft / 5.9 m

Diopter compensation ±4 dpt.

Distance measurement

Range 10 up to approx. 1,800 m

Equivalent horizontal range (EHR) 10 up to approx. 1,100 m

Measuring accuracy ±1 yd to 383 yds / ±1 m to 350 m, ±2 yds to 765 yds / ±2 m to 700 m, ±0.5 % above 765 yds / ±0,5 % above 700 m

Measuring time 0.3 sec.

Measuring modes Scanning mode, single measurement

Switchover meter/yards yes

Ballistic function no

Display LED display with 4 digits, easily legible in any light

Eyepiece for eyeglass wearers yes

Eyecups yes, rotary sliding sleeve, detachable, with 4 click-stops

Prism system Modified Uppendahl system

Lens coating HDC® multilayer coating

Focussing Internal focusing via central drive

Laser Eye-safe invisible laser according to EN and FDA class 1

Battery 1x3 V / Lithium-type CR2

Battery lifetime approx. 2,000 measurements at 68°F / 20°C

Watertightness waterproof to 16.5 ft / 5 m

Housing Aluminum, nitrogen-filled

Dimensions (W x H x D) 5.3x8.3x2.8 in / 134x210x70 mm

Weight approx. 45.9 oz / 1,260 g (without battery)

Accessories

Tripod adapter 42220
