AGM Comanche-22 NW1 - Medium Range Night Vision Clip-On System with Gen 2+ Level 1, P45-White Phosphor IIT
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

AGM Comanche-22 NW1 - Medium Range Night Vision Clip-On System with Gen 2+ Level 1, P45-White Phosphor IIT

The AGM Comanche-22 NW1 is a cutting-edge Night Vision Clip-On (NVCO) system designed for medium-range nocturnal shooting. Featuring Gen 2+ "Level 1" technology and a P45-White phosphor image intensifier tube, this device ensures optimal clarity and reliability. It's loaded with extensive functionality and versatile features, offering valuable performance at an affordable price. The purposely built Comanche-22 stands as one of the most well-founded, economically viable night vision solutions available on the market. Be sure to note product part number: 16CO2122254211 for a smooth transaction. With the AGM Comanche-22 NW1, you'll never miss a moment, even in total darkness.
3075.00 $
Tax included

2500 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

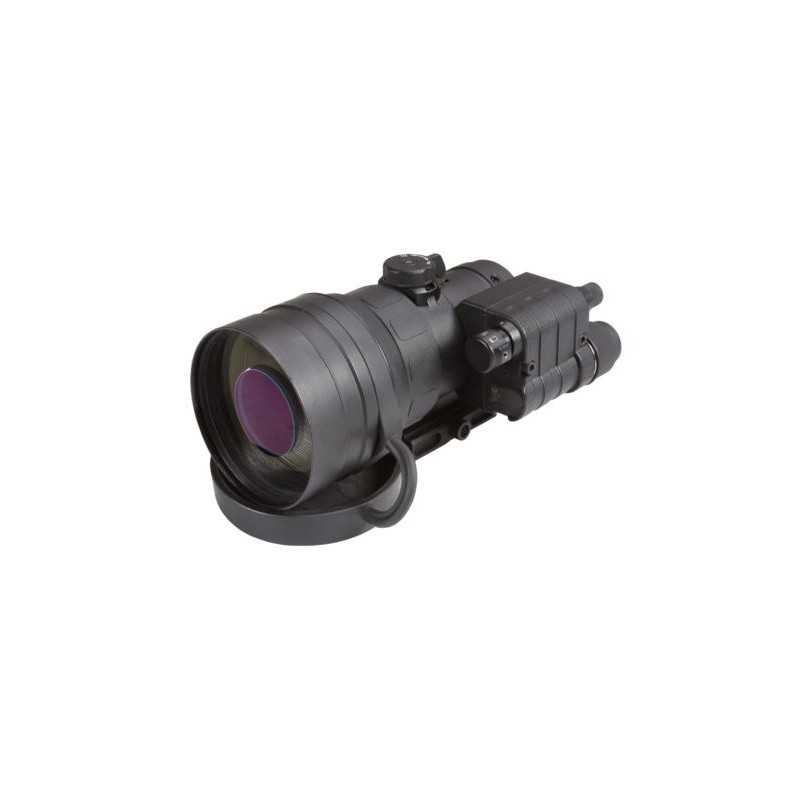

AGM Comanche 22 Night Vision Clip-On (NVCO) system uses the latest advances in night vision clip-on technology. Designed for mid-range nighttime shooting, the Comanche 22 delivers exceptional clarity, reliability, and versatility providing the most significant functionality and features at the lowest possible price.

The Comanche 22 is mounted to a standard Weaver or Picatinny rail in front of an existing day scope; transforming it into a Night Vision Device with no re-zeroing required. This NVCO can be used with day scopes of up to 7x magnification for optimal performance and is equipped with a quick release mount and wireless remote control. It provides unmatched target acquisition and enhanced aiming capabilities, making it extremely practical and effective during the most challenging missions.

  • Simple, quick conversion of daytime scopes to NVDs
  • Manual gain control
  • Mounts in front of any daytime scope, no re-zeroing required
  • Powered by a single Alkaline 1.5 V AA or 3 V CR123A Lithium battery
  • Bright-light cut-off system
  • Quick-release mount
  • 3-Year Warranty



SPECIFICATIONS

Image Intensifier Tube Gen 2+ "White Phosphor Level 1"

Cosmetic level of IIT NW1 the best quality

Resolution 51-64 lp/mm

Visible Spots Clear FOV

NW1 manually selected tubes, featured advanced clear-cut image. Image’s quality approximates to Gen 3 level.

Magnification Unity 1x

Lens System 80 mm; F/1.44

FOV 12°

Focus Range 10m to infinity

Exit Pupil Diameter 22 mm

LED Indicators Low battery; Excessive light conditions

Manual Gain Control Yes

Bright Light Cut-Off Yes

Infrared Illuminator Detachable; Long-range

Battery Type One CR123A (3V) or AA (1.5 V)

Battery Life (Operating) Up to 60 hours at 20°C

Operating Temperature Range -40°C to +50°C (-40°F to +122°F)

Storage Temperature Range -50°C to +50°C (-58°F to +122°F)

Weight 0.75 kg (1.65 lbs)

Overall Dimensions 168×85×80 mm ( 6.6×3.3×3.1 in)

Package Inludes Night Vision Clip-On, Lens Cloth, Soft Carrying Case, Sioux850 Long-Range Infrared Illuminator

Data sheet

5WQ8FERQF4
