AGM Voyage LRF TB75-640 Fusion Thermal Imaging & CMOS Binocular with Built-in Laser Range Finder, 12 Micron 640x512 (50 Hz)
zoom_out_map
chevron_left chevron_right

Our company is involved in preparing official permits from the Polish Ministry of Development and Technology, which allows us to export all dual-use drones, optics, and portable radiophones without VAT on the Polish side / and without VAT on the Ukrainian side.

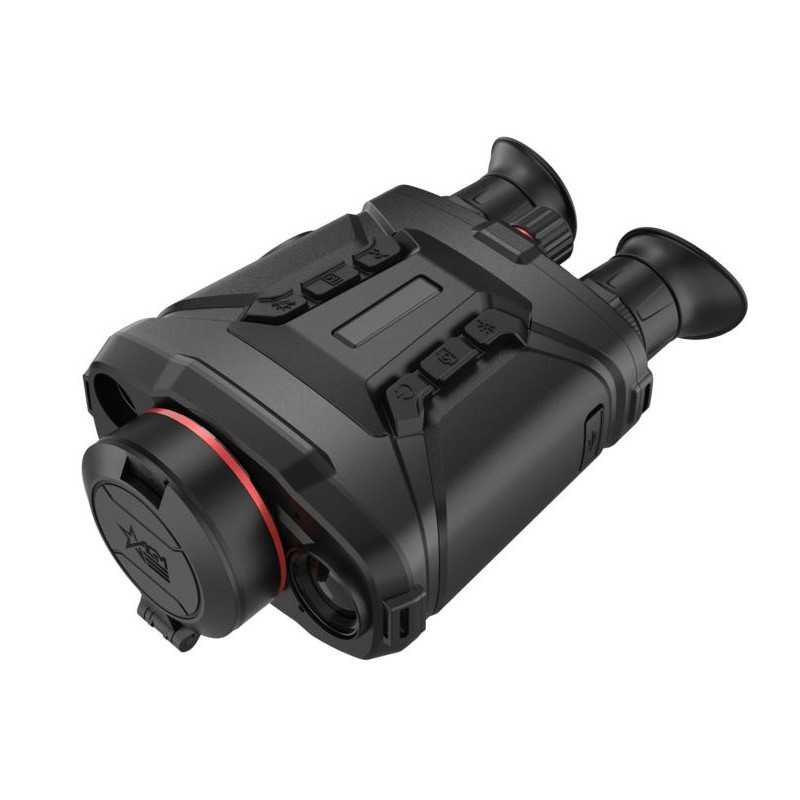

AGM Voyage LRF TB75-640 Fusion Thermal Imaging & CMOS Binocular with Built-in Laser Range Finder, 12 Micron 640x512 (50 Hz)

Experience unparalleled visibility with the AGM Voyage LRF TB75-640 Fusion Thermal Imaging & CMOS Binoculars. Perfect for surveillance and outdoor adventures, this device features a 12-micron infrared thermal sensor for clear vision in smoke, fog, rain, or snow. It includes a 2560x1440 ultra-low light optical detector and a 1024x768 OLED display for sharp images, complemented by a wide field-of-view eyepiece. The built-in Laser Range Finder precisely targets objects, and its fast detection capability uncovers hidden items. Ideal for law enforcement, search-and-rescue, anti-smuggling operations, and recreational activities like hiking and hunting. Product Part No.: 7142510005308V761.
14396.89 $
Tax included

11704.79 $ net price (non-EU countries)

Anatolii Livashevskyi
Product Manager
Українська / Polski
+48721808900
+48721808900
Telegram +48721808900
[email protected]

Description

AGM Voyage LRF TB75-640: Advanced Fusion Thermal Imaging & CMOS Binoculars

Experience the pinnacle of precision and clarity with the AGM Voyage LRF TB75-640 Fusion Thermal Imaging & CMOS Binocular. Designed for professionals and enthusiasts alike, this cutting-edge device combines high-sensitivity thermal detection with ultra-low light optical capabilities to deliver unmatched performance in any environment.

Key Features

  • Dual-Spectrum Imaging: Fusion of thermal and optical spectrums for enhanced object detection.
  • High-Resolution Thermal Sensor: 12μm sensitivity with a resolution of 640x512.
  • Ultra-Low Light Optical Detector: Crisp 2560×1440 resolution for low-light conditions.
  • Large OLED Display: 1024x768 resolution with a wide field of view.
  • Versatile Image Modes: Thermal, visible light, and fusion modes for adaptability.
  • Built-in Laser Range Finder: Accurate measurements up to 1,000 meters.
  • GPS and Compass: Integrated GPS module and electronic compass for precise navigation.
  • Durable and Waterproof: IP67-rated housing for protection against harsh conditions.
  • Long Battery Life: Operates up to 8 hours with rechargeable 18650 batteries.
  • Energy Efficiency: Proximity sensor for power conservation.
  • Comprehensive Warranty: 5-year warranty for peace of mind.

Applications

Ideal for law enforcement, search-and-rescue missions, anti-smuggling operations, hiking, and hunting, the Voyage series offers reliability and precision across varied scenarios.

Specifications

Thermal Module

  • Image Sensor: Vanadium Oxide Uncooled Focal Plane Array
  • Resolution: 640x512
  • Pixel Pitch: 12 μm
  • Response Waveband: 8 μm to 14 μm
  • NETD: Less than 20 mK (25°C, F#=1.0)
  • Lens (Focal Length): 75 mm, Manual focus
  • Magnification: 5× - 80×
  • Field of View: 5.9° × 4.7°
  • Detection Range: 3,600 m

Optical Module

  • Max. Image Resolution: 2560×1440
  • Lens (Focal Length): 31 mm
  • Night Viewing Range: 400 m
  • IR Illuminator: Built-in 850 nm Smart IR

Image Display

  • Monitor: 0.39-inch OLED, 1024×768
  • Image Modes: Optical, White Hot Thermal, Black Hot Thermal, Red Hot Thermal, Image Fusion
  • Optical Modes: Day, Night, Auto, Defog

Laser Rangefinder

  • Measuring Distance: Max. 1,000 m
  • Accuracy: ±1 m
  • Laser Wavelength: 905 nm (Class 1)

Power Supply

  • Battery Type: Three 18650 batteries
  • Battery Operating Time: Up to 8 hours
  • External Power Supply: DC 5V/2A, Type-C port

General

  • Working Temperature: -30°C to 55°C (-22°F to 131°F)
  • Protection Level: IP67
  • Dimensions: 230 × 155 × 88 mm
  • Weight: 1.45 kg

Equip yourself with the AGM Voyage LRF TB75-640 and explore the unseen with precision and clarity.
